ACV30R-JEPEKT (2002)
Toyota Camry

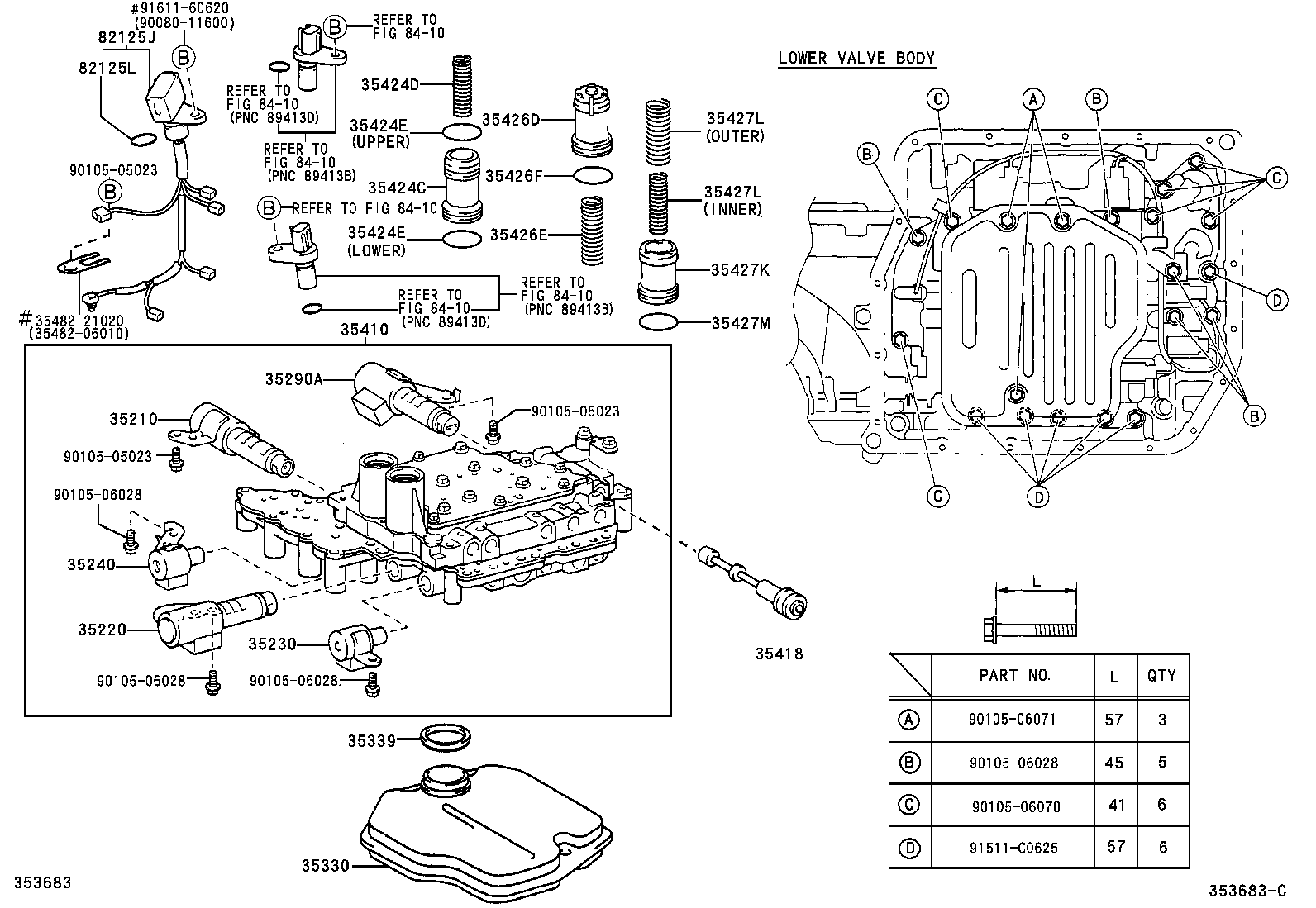

ILLUST NO. 1 OF 2(0203- )4FC
U140E,U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35210-21010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35220-21010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-21010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35230-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-21010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35240-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-21010 |
ACV30..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35290-21010 |
ACV30,MCV30..(MA,PHL,TH)..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-06010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35330-06010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 90301-32010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-48011 |
ACV30..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35410-48011 |
ACV30,MCV30..(MA,PHL,TH)..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-21011 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35418-21011 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35424-21010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22039 |
ACV3#..4FC |
1 | ||
| 90501-22039 |
ACV31..MA,TAIW,TH;ACV30..(MA,PHL,TH)..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-27008 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC UPPER |
1 | ||
| 90301-27008 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC UPPER |
1 | ||
| 90301-30007 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC LOWER |
1 | ||
| 90301-30007 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC LOWER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-27008 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC UPPER |
1 | ||
| 90301-27008 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC UPPER |
1 | ||
| 90301-30007 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC LOWER |
1 | ||
| 90301-30007 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC LOWER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35406-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35406-21010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90905-01035 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 90905-01035 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-21010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 35427-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC OUTER |
1 | ||
| 90501-22038 |
ACV3#..4FC INNER |
1 | ||
| 90501-22038 |
ACV31..MA,TAIW,TH;ACV30..(MA,PHL,TH)..4FC INNER |
1 | ||
| 90501-25053 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC OUTER |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC OUTER |
1 | ||
| 90501-22038 |
ACV3#..4FC INNER |
1 | ||
| 90501-22038 |
ACV31..MA,TAIW,TH;ACV30..(MA,PHL,TH)..4FC INNER |
1 | ||
| 90501-25053 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC OUTER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 90301-28008 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-06010 |
ACV3#,MCV30..(IDN,MA,PHL,TH,VN)..4FC (L) |
1 | ||
| 82125-28180 |
ACV3#,MCV30..(IDN,MA,PHL,TH,VN)..4FC (J) |
1 | ||
| 82125-28180 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ACV3#..TH |
1 | ||
| 90301-21009 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
1 | ||
| Common parts | ||||
| 35482-06010 | ||||
| 35482-21020 | ||||
| 90080-11600 | ||||
| 90105-05023 | ||||
| 90105-06028 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 91511-C0625 | ||||
| 91611-60620 | ||||
| Linked diagrams | ||||
| 8410 | ||||

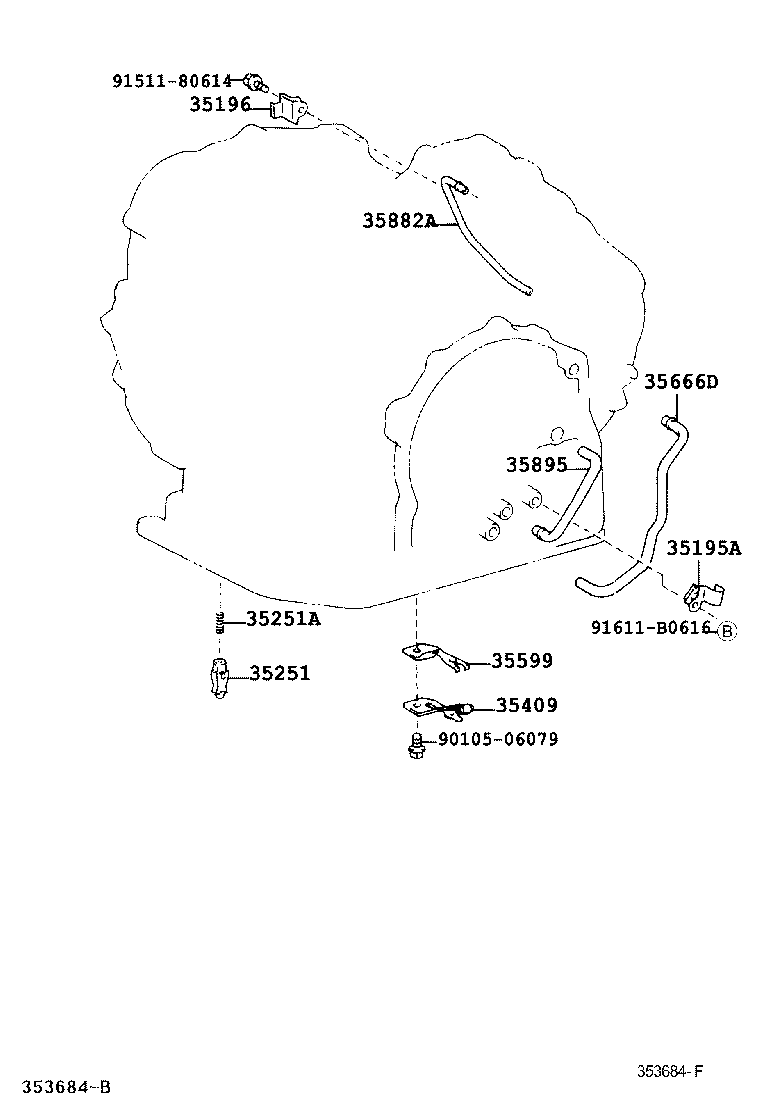

ILLUST NO. 2 OF 2(0203- )4FC
U140E,U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-21010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
1 | ||
| 35409-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35599-21010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
1 | ||
| 35666D - TUBE, BRAKE APPLY | ||||
| 35666-32010 |
ACV3#..4FC |
1 | ||
| 35666-32010 |
ACV31..MA,TAIW,TH;ACV30..(MA,PHL,TH)..4FC |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-32020 |
ACV3#..4FC |
1 | ||
| 35882-32020 |
ACV31..MA,TAIW,TH;ACV30..(MA,PHL,TH)..4FC |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-21010 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 35895-21010 |
ACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC |
1 | ||
| Common parts | ||||
| 90105-06079 | ||||
| 91511-80614 | ||||
| 91611-B0616 | ||||
