ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )ACV30..IDN ; (0206- )MA,PHL ; (0207- )ACV30..VN ; (0405- )ACV3#

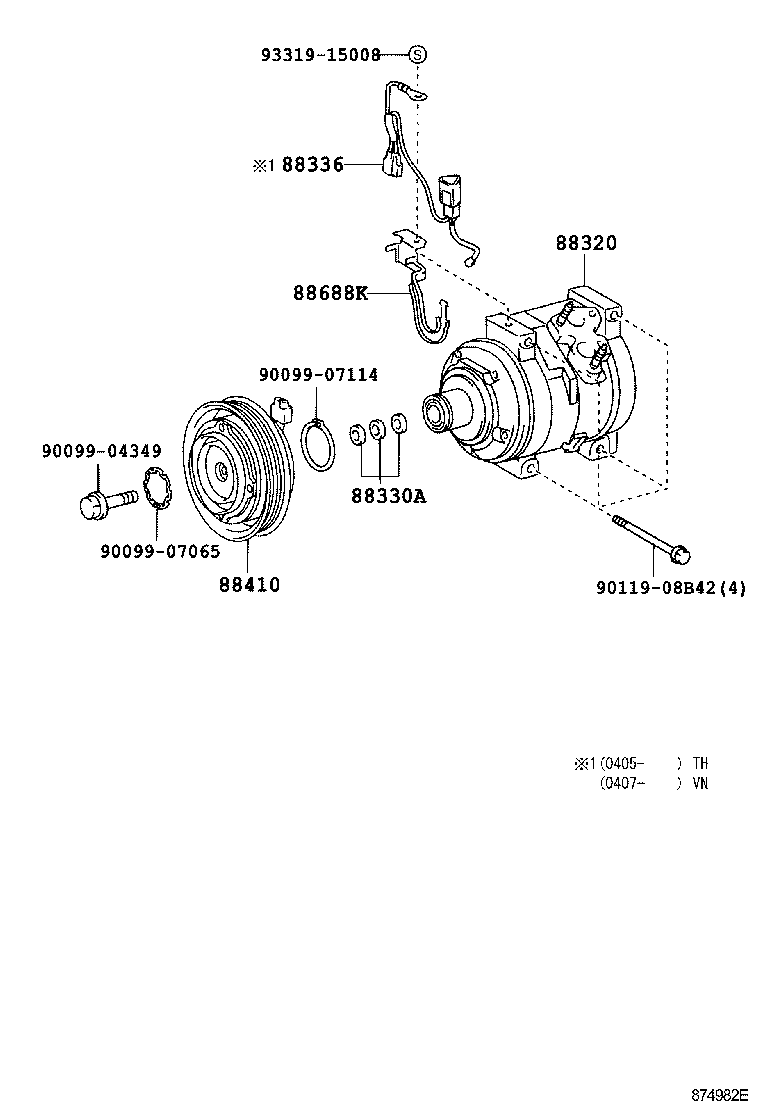

Click highlighted areas on diagram

diagram 88320 88330A 88336 88410 88688K 9009904349 9009907065 9009907114 9011908B42 9331915008
Part # Description Qty Price
88410 - CLUTCH ASSY, MAGNET
88410-42040

ACV3#..4FC;ACV30..(IDN,VN)..5F

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-48070

ACV3#..4FC;ACV30..(IDN,VN)..5F

 1
Common parts
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
