ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

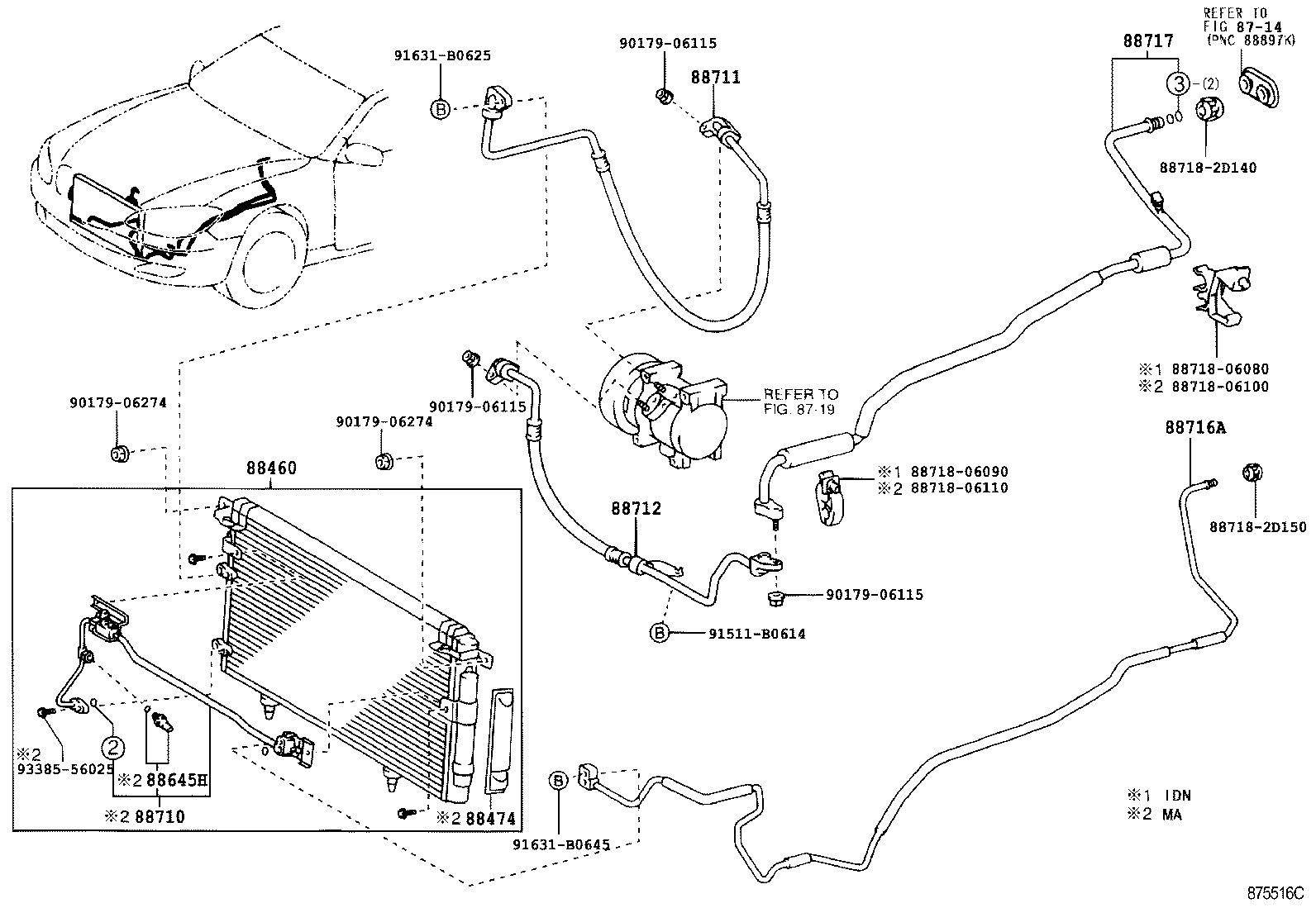

ILLUST NO. 1 OF 2(0205- )IDN,MA

Click highlighted areas on diagram

diagram 8714 88460 88474 88645H 88710 88711 88712 88716A 88717 8871806080 8871806090 8871806100 8871806110 887182D140 887182D150 9017906115 9017906115 9017906115 9017906274 9017906274 91511B0614 91631B0625 91631B0645 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-06080

ACV30,MCV30..IDN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-06150

ACV30..IDN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-06150

ACV30..IDN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-06170

ACV30,MCV30..IDN

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88710-06110

ACV30,MCV30..IDN

 1
Common parts
88718-06080
88718-06090
88718-06100
88718-06110
88718-2D140
88718-2D150
90179-06115
90179-06274
91511-B0614
91631-B0625
91631-B0645
93385-56025
Linked diagrams
8714
