ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )ACV3#..MA,TH ; (0205-0405)ACV30..IDN

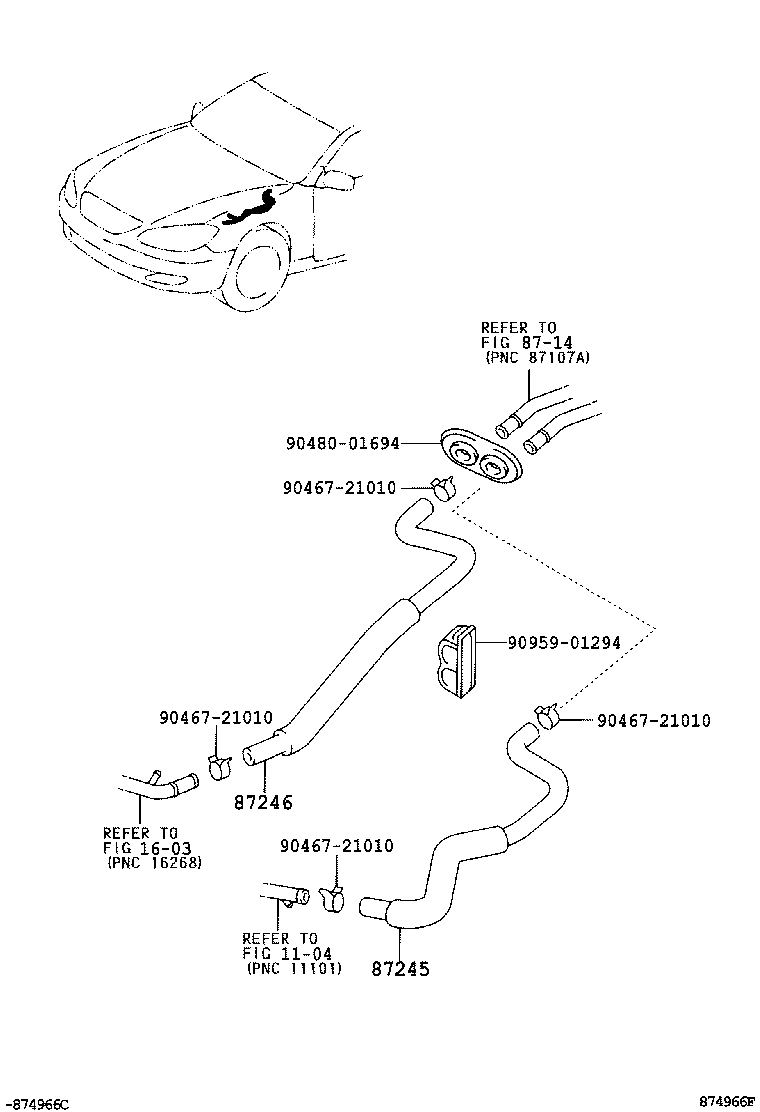

Click highlighted areas on diagram

diagram 1104 1603 8714 87245 87246 9046721010 9046721010 9046721010 9046721010 9048001694 9095901294
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-06220

ACV30..IDN

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-06230

ACV30..IDN

 1
Common parts
90467-21010
90480-01694
90959-01294
Linked diagrams
1104
1603
8714
