ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

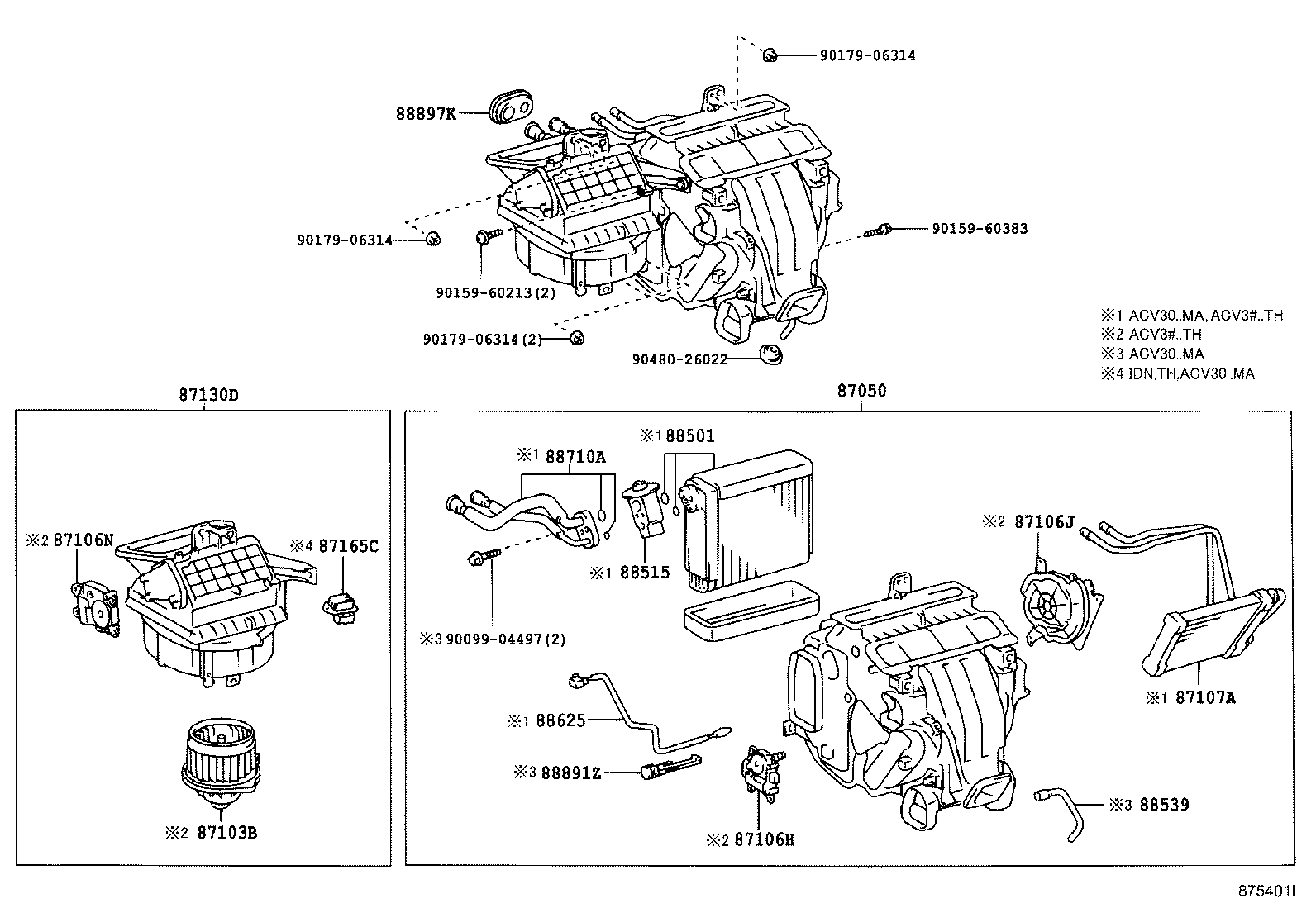

ILLUST NO. 1 OF 2(0203-0405)IDN,TH ; (0203-0407)MA

Click highlighted areas on diagram

diagram 87050 87103B 87106H 87106J 87106N 87107A 87130D 87165C 88501 88515 88539 88625 88710A 88891Z 88897K 9009904497 9015960213 9015960383 9017906314 9017906314 9017906314 9048026022
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-06330

ACV30..5F

 1
87050-06331

ACV30..IDN..5F

 1
87050-06332

ACV30..IDN..5F

 1
87130D - BLOWER ASSY
87130-06160

ACV30,MCV30..IDN

 1
87165C - CONTROL, BLOWER MOTOR
87165-13010

ACV30..IDN..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV31..(20E,20G)..(TAIW,TH);ACV3#..(20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-33020

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
Common parts
90099-04497
90159-60213
90159-60383
90179-06314
90480-26022
