ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0203-0405)IDN,TH ; (0206-0407)MA

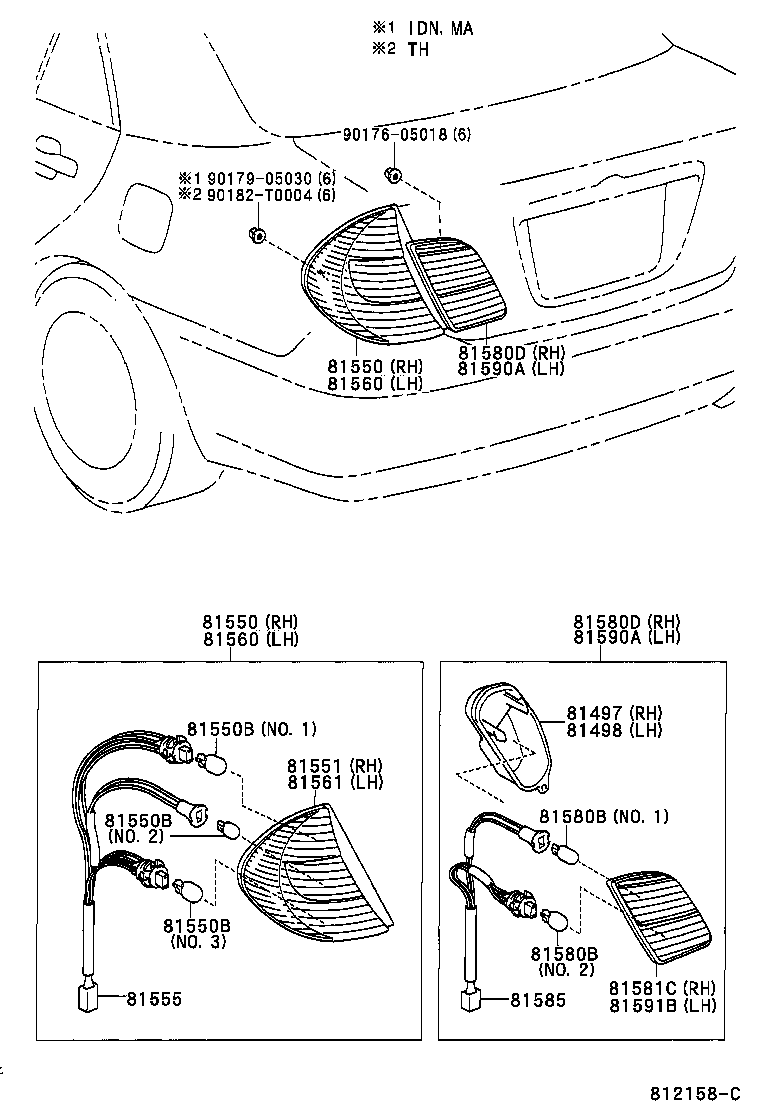

Click highlighted areas on diagram

diagram 81497 81498 81550 81550 81550B 81550B 81550B 81551 81555 81560 81560 81561 81580B 81580B 81580D 81580D 81581C 81585 81590A 81590A 81591B 9017605018 9017905030 90182T0004
Part # Description Qty Price
81497 - COVER, REAR COMBINATION LAMP, RH
81497-33010

ACV3#,MCV30..IDN,TH

 1
81497-33010

ACV31..20J;ACV3#,MCV30..RHD

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-33010

ACV3#,MCV30..IDN,TH

 1
81498-33010

ACV31..20J;ACV3#,MCV30..RHD

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-06140

ACV30,MCV30..IDN

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-06140

ACV30,MCV30..IDN

 1
81551 - LENS, REAR COMBINATION LAMP, RH
81551-06140

ACV30,MCV30..IDN

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-06140

ACV30,MCV30..IDN

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-06150

ACV30,MCV30..IDN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-06150

ACV30,MCV30..IDN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-06150

ACV30,MCV30..IDN

 1
81580B - BULB (FOR REAR LAMP)
90981-11059

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

12V 16W,NO.1

 2
90981-13044

ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC

12V 21/5W,NO.2

 2
81580B - BULB (FOR REAR LAMP)
90981-11059

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

12V 16W,NO.1

 2
90981-13044

ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC

12V 21/5W,NO.2

 2
81580D - LAMP ASSY, REAR, RH
81580-06050

ACV30,MCV30..IDN

 1
81580D - LAMP ASSY, REAR, RH
81580-06050

ACV30,MCV30..IDN

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-06050

ACV30,MCV30..IDN

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-06050

ACV30,MCV30..IDN

 2
81590A - LAMP ASSY, REAR, LH
81590-06050

ACV30,MCV30..IDN

 1
81590A - LAMP ASSY, REAR, LH
81590-06050

ACV30,MCV30..IDN

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-06050

ACV30,MCV30..IDN

 1
Common parts
90176-05018
90179-05030
90182-T0004
