ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0203-0404)TAIW ; (0203-0405)IDN,TH ; (0203-0407)MA,PHL,VN

Click highlighted areas on diagram

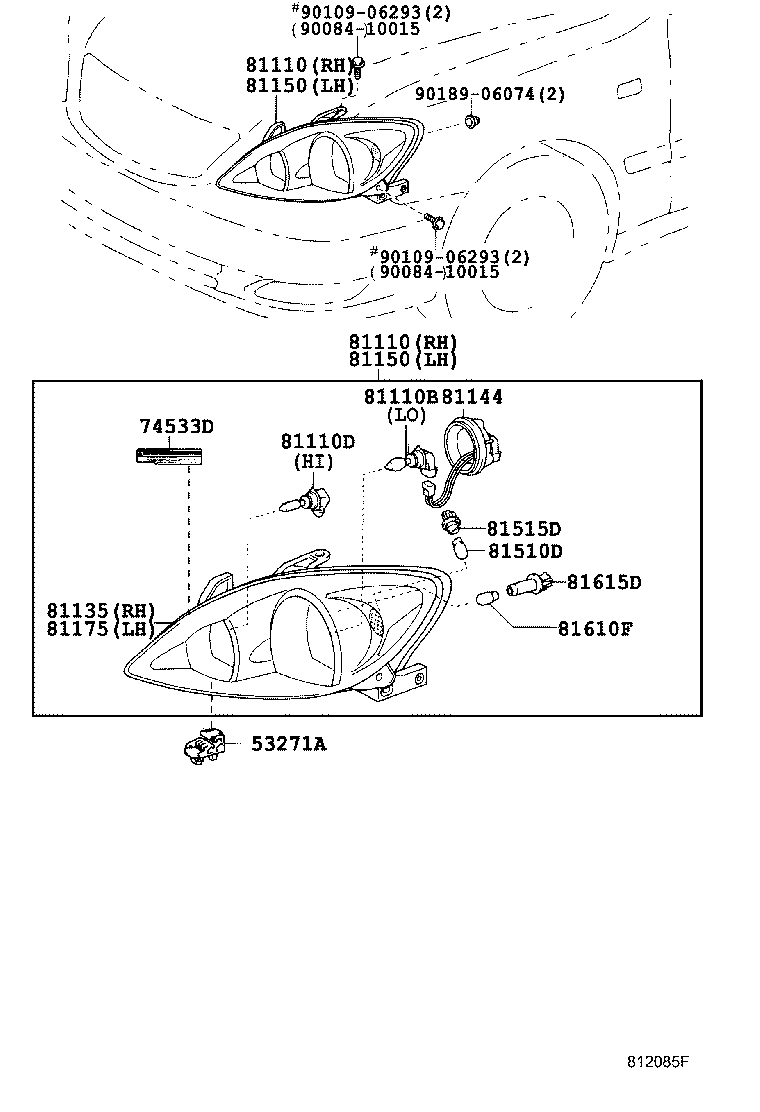

HALOGEN HEADLAMP

diagram 53271A 74533D 81110 81110 81110B 81110D 81135 81144 81150 81150 81175 81510D 81515D 81610F 81615D 9008410015 9008410015 9010906293 9010906293 9018906074
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

ACV3#,MCV30..IDN,TH

 2
81110 - HEADLAMP ASSY, RH
81110-06070

ACV30..IDN

 1
81110 - HEADLAMP ASSY, RH
81110-06070

ACV30..IDN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13063

MCV30..VN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24V,30G)..4FC

12V 55W,HALOGEN

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24Q,24V,30G)..4FC

12V 65W

 2
81144 - COVER, HEADLAMP, NO.1
81135-06060

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

 2
81150 - HEADLAMP ASSY, LH
81150-06070

ACV30..IDN

 1
81150 - HEADLAMP ASSY, LH
81150-06070

ACV30..IDN

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

12V 21W,AMBER

 2
81515D - SOCKET, FOG LAMP
90075-60004

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60028

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

 2
Common parts
90084-10015
90109-06293
90189-06074

(0404- )TAIW ; (0405- )ACV30,MCV30..TH..4FC ; (0407- )ACV30,MCV30..MA,PHL,

Click highlighted areas on diagram

DISCHARGE HEADLAMP

diagram 53183H 53184F 53271A 74533D 81107 81108 81110 81110D 81110L 81125 81134 81135 81144 81150 81175 81189 81193 81194 81510D 81515B 81610F 81615D 9007502025 9007502727 9010906293 9010906293 9018906074
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

ACV3#,MCV30..IDN,TH

 2
81110 - HEADLAMP ASSY, RH
81110-06070

ACV30..IDN

 1
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24Q,24V,30G)..4FC

12V 65W

 2
81144 - COVER, HEADLAMP, NO.1
81135-06060

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

 2
81150 - HEADLAMP ASSY, LH
81150-06070

ACV30..IDN

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

12V 21W,AMBER

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60028

ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC

 2
Common parts
90075-02025
90075-02727
90109-06293
90189-06074
