ACV30R-JEMNKD (2002)
Toyota Camry
(0203-0405)ACV31..TH ; (0205-0405)ACV30..IDN ; (0206-0407)ACV31..MA

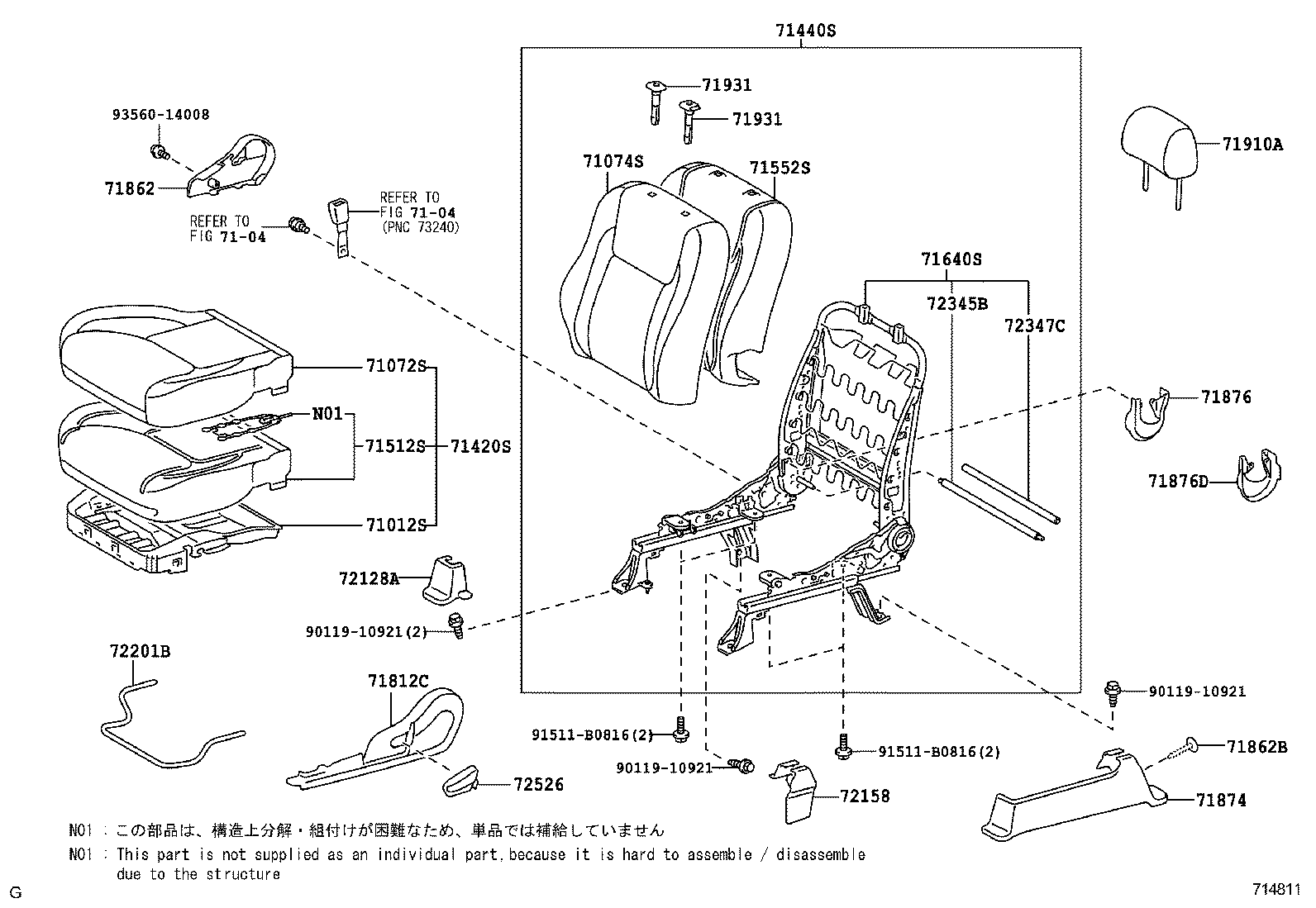

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-02040 |
ACV30..IDN;ACV31..RHD |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-06260A0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-06110A0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-06310E0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-06060E0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02100 |
ACV30..IDN;ACV31..RHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-06030 |
ACV31..RHD;ACV30..IDN,MA |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-06050 |
ACV30..IDN;ACV31..RHD |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-0A010A0 |
ACV31..MA,PHL,TH;ACV3#..(20J,24G,24V)..(IDN,PHL,TAIW,VN) IVORY,TRIM4#,THAILAND SPEC |
1 | ||
| 71812-02060A0 |
ACV31..MA,PHL,TH;ACV3#..(20J,24G,24V)..(IDN,PHL,TAIW,VN) IVORY,TRIM4#,TAIWAN SPEC |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0A010A0 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC IVORY,TRIM4#,THAILAND SPEC |
1 | ||
| 71862-02030A0 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC IVORY,TRIM4#,TAIWAN SPEC |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-07161A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06040A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06060A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71875-06060A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06110A0 |
ACV30..IDN IVORY,TRIM4# |
2 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-06010A0 |
ACV30,MCV30..IDN IVORY,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06010A0 |
ACV3#,MCV30..IDN,TH IVORY,TRIM4# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-02020 |
ACV31..MA,PHL,TH;ACV3#..(20J,24G,24V)..(IDN,PHL,TAIW,VN) |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-06090 |
ACV31..MA,PHL,TH;ACV30..IDN,PHL,VN |
1 | ||
| 72347C - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-06040 |
ACV30..IDN RH |
1 | ||
| 72347-06030 |
ACV30..IDN LH |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010A0 |
ACV31..MA,PHL,TH;ACV3#..(20J,24G,24V)..(IDN,PHL,TAIW,VN) IVORY,TRIM4#,TAIWAN SPEC |
1 | ||
| 72526-0A010A0 |
ACV31..MA,PHL,TH;ACV3#..(20J,24G,24V)..(IDN,PHL,TAIW,VN) IVORY,TRIM4#,THAILAND SPEC |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 91511-B0816 | ||||
| 93560-14008 | ||||
| Linked diagrams | ||||
| 7104 | ||||

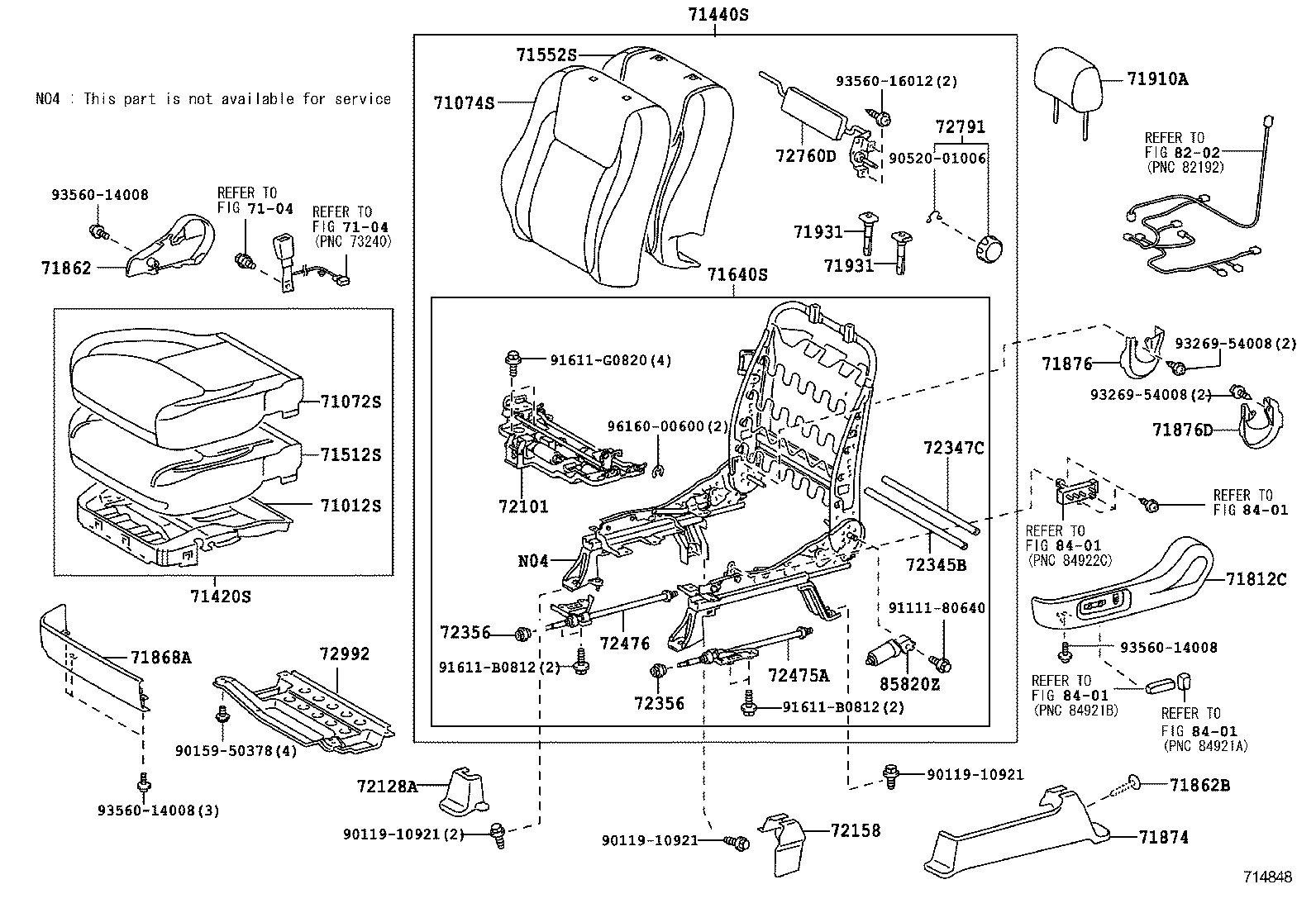

(0203-0404)20E,20G,30G..TAIW ; (0203-0405)24G..TH ; (0205-0405)MCV30..IDN ; (0206-0
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-02040 |
ACV30..IDN;ACV31..RHD |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-06260A0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-06110A0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-06310E0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-06060E0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02100 |
ACV30..IDN;ACV31..RHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-06030 |
ACV31..RHD;ACV30..IDN,MA |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-06050 |
ACV30..IDN;ACV31..RHD |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-0A010A0 |
ACV31..MA,PHL,TH;ACV3#..(20J,24G,24V)..(IDN,PHL,TAIW,VN) IVORY,TRIM4#,THAILAND SPEC |
1 | ||
| 71812-02060A0 |
ACV31..MA,PHL,TH;ACV3#..(20J,24G,24V)..(IDN,PHL,TAIW,VN) IVORY,TRIM4#,TAIWAN SPEC |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0A010A0 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC IVORY,TRIM4#,THAILAND SPEC |
1 | ||
| 71862-02030A0 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC IVORY,TRIM4#,TAIWAN SPEC |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-07161A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06040A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06060A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71875-06060A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06110A0 |
ACV30..IDN IVORY,TRIM4# |
2 | ||
| 72101 - BRACKET SUB-ASSY, OUTER SEAT TRACK, LOWER FRONT | ||||
| 72101-06010 |
MCV30..VN;ACV30..IDN W(POWER SEAT, DRIVER'S SIDE) |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-06010A0 |
ACV30,MCV30..IDN IVORY,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06010A0 |
ACV3#,MCV30..IDN,TH IVORY,TRIM4# |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-06090 |
ACV31..MA,PHL,TH;ACV30..IDN,PHL,VN |
1 | ||
| 72347C - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-06040 |
ACV30..IDN RH |
1 | ||
| 72347-06030 |
ACV30..IDN LH |
1 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-06010 |
MCV30..VN;ACV3#,MCV30..(20E,20G,24G,30G)..(IDN,TAIW)..(4FC,5F) |
8 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-06010 |
MCV30..VN;ACV3#,MCV30..(20E,20G,24G,30G)..(IDN,TAIW)..(4FC,5F) |
8 | ||
| 72475A - SCREW, HORIZONTAL JACK, OUTER | ||||
| 72475-06010 |
MCV30..VN;ACV3#,MCV30..(20E,20G,24G,30G)..(IDN,TAIW)..(4FC,5F) |
1 | ||
| 72476 - SCREW, HORIZONTAL JACK, INNER | ||||
| 72476-06010 |
MCV30..VN;ACV3#,MCV30..(20E,20G,24G,30G)..(IDN,TAIW)..(4FC,5F) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020A2 |
MCV30..IDN;ACV31..20J;ACV30..(IDN,VN)..5F;ACV3#..(20E,20G,24G,24V)..(IDN,MA,PHL,TH)..4FC IVORY,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90159-50378 | ||||
| 90520-01006 | ||||
| 91111-80640 | ||||
| 91611-B0812 | ||||
| 91611-G0820 | ||||
| 93269-54008 | ||||
| 93560-14008 | ||||
| 93560-16012 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

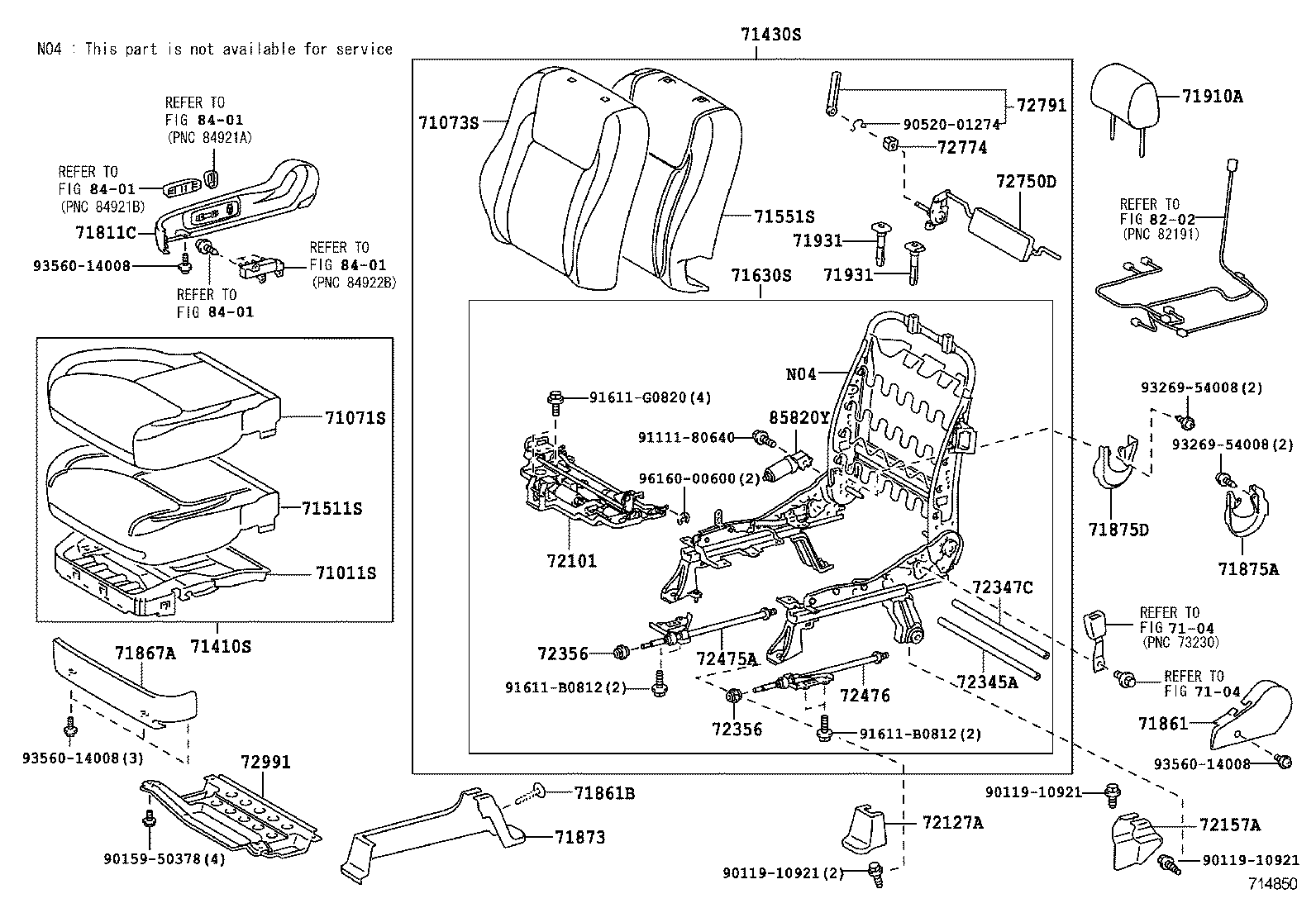

(0203-0404)24G..TH ; (0203-0405)IDN ; (0206-0407)ACV30..MA
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-06060 |
ACV30..IDN..5F;ACV30..RHD..4FC;MCV30..(IDN,TAIW)..4FC W(POWER SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-06200A0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-06200A0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-06110E0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-06250E0 |
ACV30..IDN IVORY,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0A010A0 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC IVORY,TRIM4#,THAILAND SPEC |
1 | ||
| 71861-02040A0 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC IVORY,TRIM4#,TAIWAN SPEC |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-07161A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-06020A0 |
ACV30..IDN..5F;ACV30..RHD..4FC;MCV30..(IDN,TAIW)..4FC IVORY,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06020A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-06060A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-06060A0 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC IVORY,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06110A0 |
ACV30..IDN IVORY,TRIM4# |
2 | ||
| 72101 - BRACKET SUB-ASSY, OUTER SEAT TRACK, LOWER FRONT | ||||
| 72101-06010 |
MCV30..VN;ACV30..IDN W(POWER SEAT, DRIVER'S SIDE) |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-06010A0 |
ACV3#,MCV30..IDN,TH IVORY,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-06010A0 |
ACV3#,MCV30..IDN,TH IVORY,TRIM4# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-06060 |
ACV30..IDN..5F;ACV30..RHD..4FC;MCV30..(IDN,TAIW)..4FC W(POWER SEAT) |
1 | ||
| 72347C - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-06040 |
ACV30..IDN RH |
1 | ||
| 72347-06030 |
ACV30..IDN LH |
1 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-06010 |
MCV30..VN;ACV3#,MCV30..(20E,20G,24G,30G)..(IDN,TAIW)..(4FC,5F) |
8 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-06010 |
MCV30..VN;ACV3#,MCV30..(20E,20G,24G,30G)..(IDN,TAIW)..(4FC,5F) |
8 | ||
| 72475A - SCREW, HORIZONTAL JACK, OUTER | ||||
| 72475-06010 |
MCV30..VN;ACV3#,MCV30..(20E,20G,24G,30G)..(IDN,TAIW)..(4FC,5F) |
1 | ||
| 72476 - SCREW, HORIZONTAL JACK, INNER | ||||
| 72476-06010 |
MCV30..VN;ACV3#,MCV30..(20E,20G,24G,30G)..(IDN,TAIW)..(4FC,5F) |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72760-12110 |
MCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..(20E,24G,24V)..4FC |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020A2 |
MCV30..IDN;ACV31..20J;ACV30..(IDN,VN)..5F;ACV3#..(20E,20G,24G,24V)..(IDN,MA,PHL,TH)..4FC IVORY,TRIM4# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-06040 |
ACV30..IDN..5F;ACV30..RHD..4FC;MCV30..(IDN,TAIW)..4FC |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-06040 |
ACV30..IDN..5F;ACV30..RHD..4FC;MCV30..(IDN,TAIW)..4FC |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90159-50378 | ||||
| 90520-01274 | ||||
| 91111-80640 | ||||
| 91611-B0812 | ||||
| 91611-G0820 | ||||
| 93269-54008 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
