ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0203-0405)TH ; (0203-0407)IDN,MA,PHL,VN

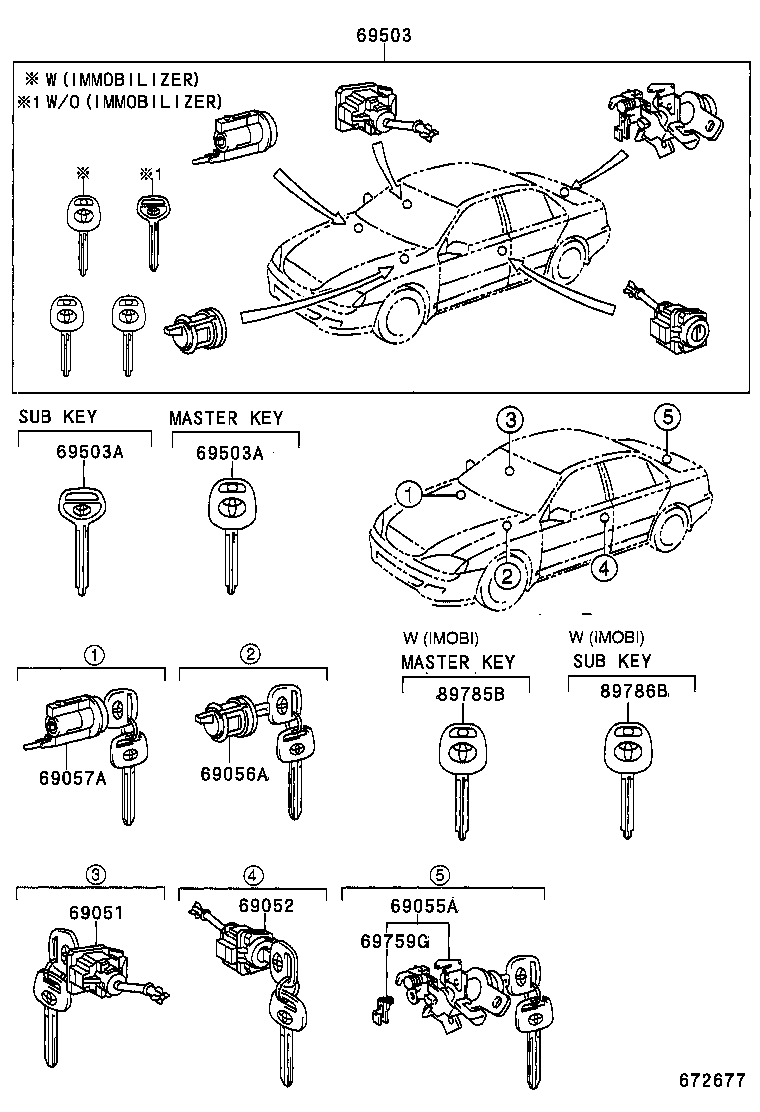

Click highlighted areas on diagram

diagram 69051 69052 69055A 69056A 69057A 69503 69503A 69503A 69759G 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-06030

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-06030

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-06040

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-06030

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-06060

ACV30,MCV30..IDN,TH

 1
69503 - CYLINDER SET, LOCK
69005-06070

ACV30,MCV30..IDN,TH

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-06020

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-26020

ACV30,MCV30..IDN,TH

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60050

ACV30,MCV30..IDN,TH

 1
