ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

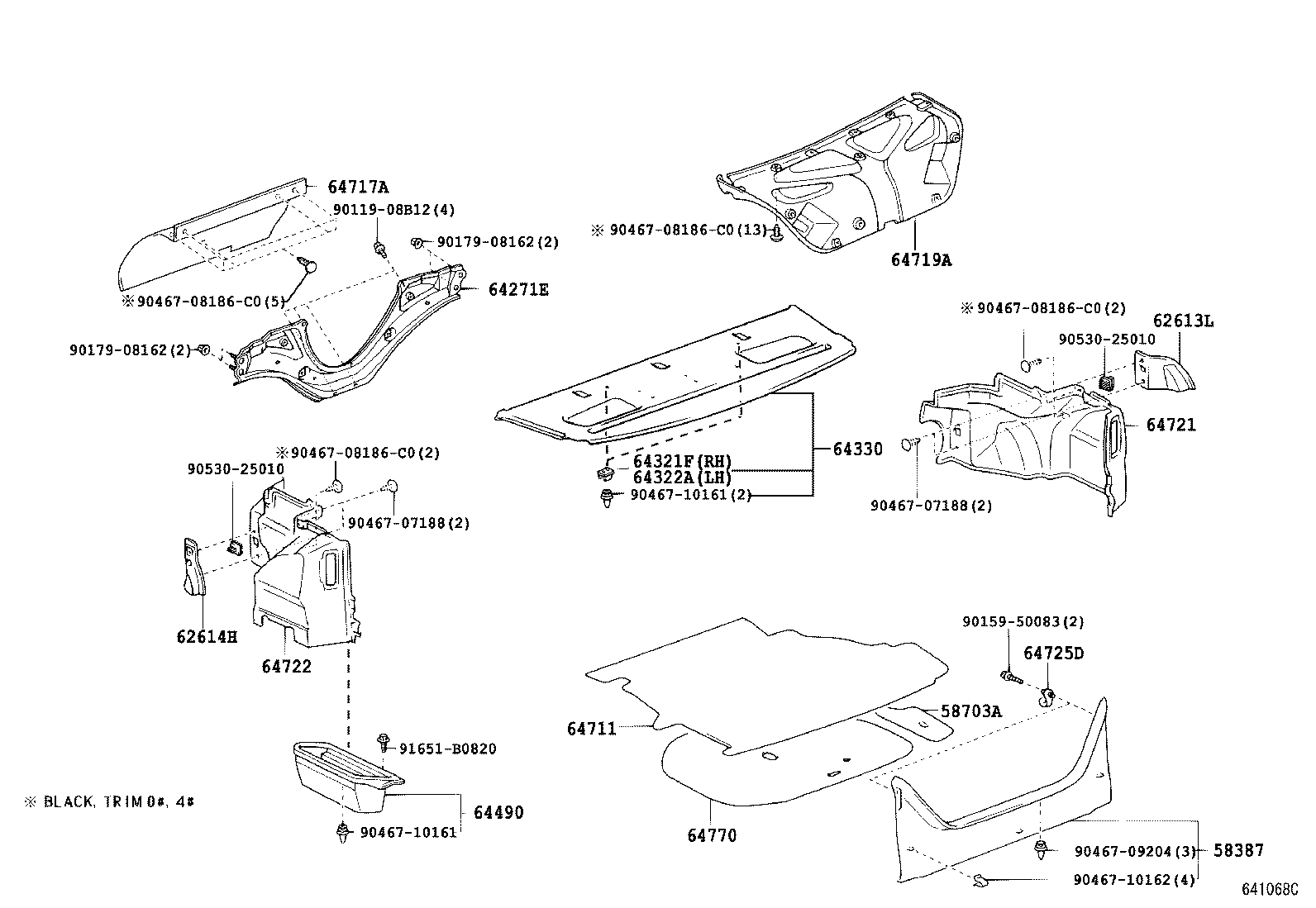

Click highlighted areas on diagram

W/O(REAR WINDOW SUN SHADE)

diagram 58387 58703A 62613L 62614H 64271E 64321F 64322A 64330 64490 64711 64717A 64719A 64721 64722 64725D 64770 9011908B12 9015950083 9017908162 9017908162 9046707188 9046707188 9046708186C0 9046708186C0 9046708186C0 9046708186C0 9046709204 9046710161 9046710161 9046710162 9053025010 9053025010 91651B0820
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-06070

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC

 1
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-06050

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
62613L - INSULATOR, QUARTER WHEEL HOUSE, NO.2 RH
62613-33010

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
62614H - INSULATOR, QUARTER WHEEL HOUSE, NO.2 LH
62614-33010

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
64271E - PANEL, ROOM PARTITION
64206-06010

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
64321F - BRACKET, PACKAGE TRAY TRIM, RH
64323-06020

ACV31;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV30..(24G,24V)..(IDN,PHL,TH)..4FC

 1
64322A - BRACKET, PACKAGE TRAY TRIM, LH
64323-06020

ACV31;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV30..(24G,24V)..(IDN,PHL,TH)..4FC

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-06150A0

ACV30,MCV30..IDN

IVORY,TRIM4#

 1
64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE
64490-06020C1

ACV3#,MCV30..IDN,TH

BLACK,TRIM4#

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-06070C1

ACV3#,MCV30..IDN,TH

BLACK,TRIM4#

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-06050C1

ACV3#,MCV30..IDN,TH

BLACK,TRIM4#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-06060C1

ACV3#,MCV30..IDN,TH

BLACK,TRIM4#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-06060C1

ACV3#,MCV30..IDN,TH

BLACK,TRIM4#

 1
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-06070C1

ACV3#,MCV30..IDN,TH

BLACK,TRIM4#

 1
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-06020

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 2
64770 - COVER ASSY, SPARE WHEEL
64770-06100

ACV30..IDN..5F;ACV31..MA,PHL,TH;ACV30..(24G,24V)..(IDN,PHL,TH)..4FC

SPARE TIRE = 205/65R15

 1
Common parts
90119-08B12
90159-50083
90179-08162
90467-07188
90467-08186C0
90467-09204
90467-10161
90467-10162
90530-25010
91651-B0820
