ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )IDN,MA,PHL,VN

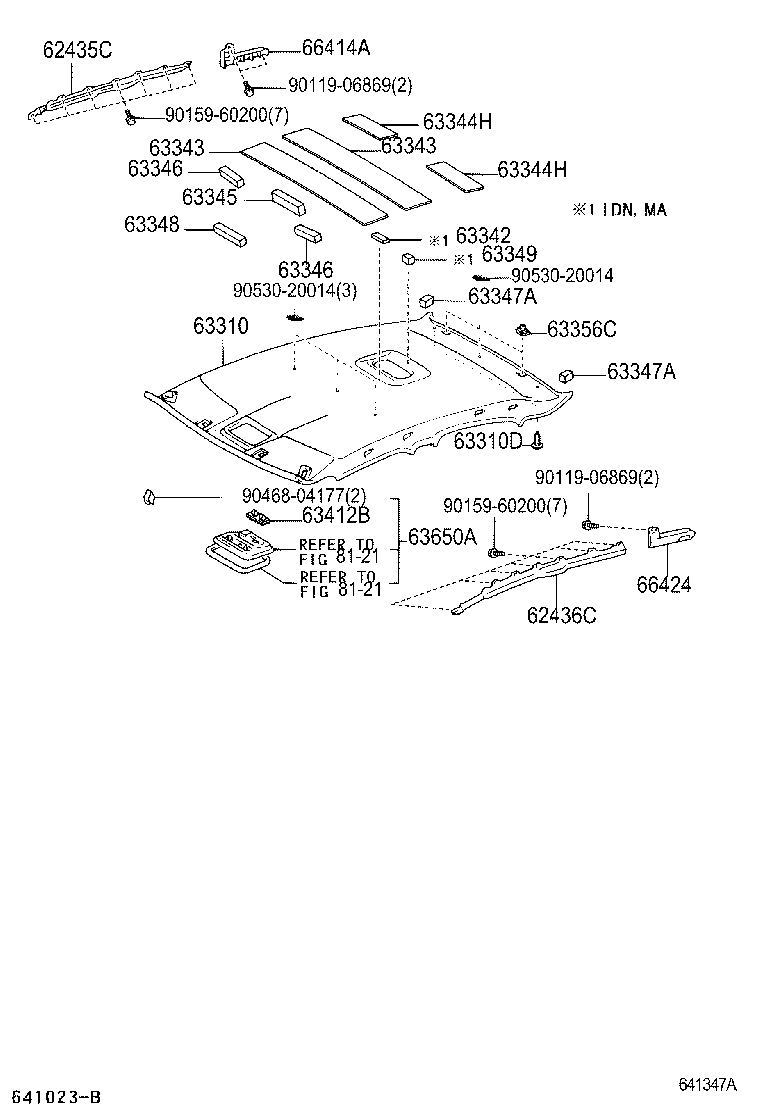

Click highlighted areas on diagram

diagram 62435C 62436C 63310 63310D 63342 63343 63343 63344H 63344H 63345 63346 63346 63347A 63347A 63348 63349 63356C 63412B 63650A 66414A 66424 8121 8121 9011906869 9011906869 9015960200 9015960200 9046804177 9053020014 9053020014
Part # Description Qty Price
62435C - PAD, ROOF SIDE RAIL GARNISH, RH
62435-33010

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
62436C - PAD, ROOF SIDE RAIL GARNISH, LH
62436-33010

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
63412B - RETAINER, ROOF CONSOLE
63412-33010

ACV30..(IDN,VN)..5F;ACV31,MCV30..(20G,30V)..(IDN,PHL,VN);ACV3#,MCV30..(20E,20J,24G,24Q,24V,30G)..4FC

 1
63650A - BOX ASSY, ROOF CONSOLE
63650-06070A0

ACV30..(IDN,VN)..5F;ACV31,MCV30..(20G,30V)..(IDN,PHL,VN);ACV3#,MCV30..(20E,24G,24Q,24V,30G)..4FC

IVORY,TRIM4#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-33010

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-33010

MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC

 1
Common parts
90119-06869
90159-60200
90468-04177
90530-20014
Linked diagrams
8121
