ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

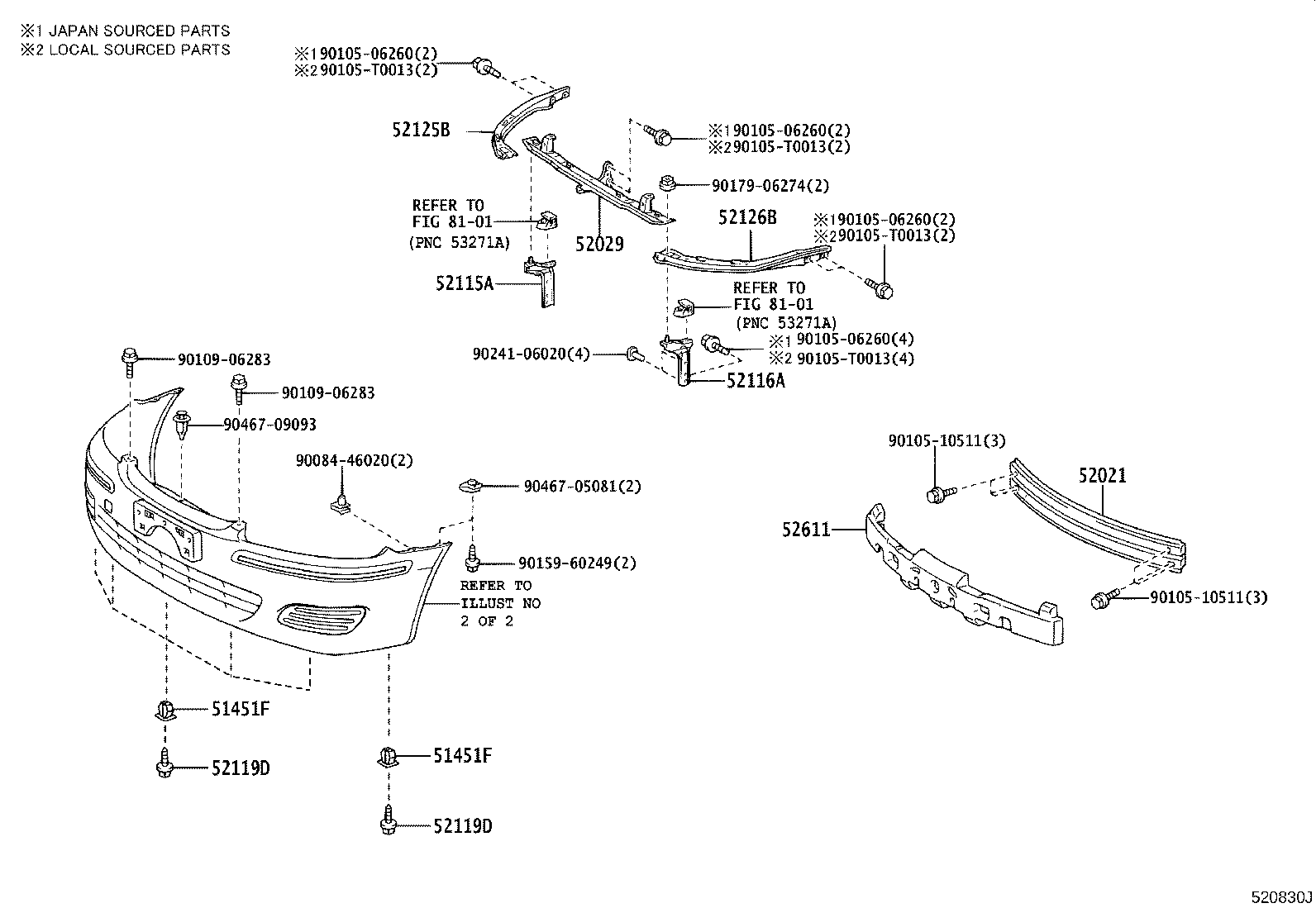

ILLUST NO. 1 OF 2(0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ;(0405-0407)MA,PHL,VN

Click highlighted areas on diagram

diagram 51451F 51451F 52021 52029 52115A 52116A 52119D 52119D 52125B 52126B 52611 8101 8101 9008446020 9010506260 9010506260 9010506260 9010506260 9010510511 9010510511 90105T0013 90105T0013 90105T0013 90105T0013 9010906283 9010906283 9015960249 9017906274 9024106020 9046705081 9046709093
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 7
51451F - GROMMET, NO.1
90189-06193

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 7
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-06020

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-06030

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-06020

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-06020

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
52119D - SCREW, NO.1
90159-60431

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 7
52119D - SCREW, NO.1
90159-60431

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 7
52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH
52125-06030

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH
52126-06030

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-06030

ACV3#,MCV30..IDN,MA,PHL,TH,VN

 1
Common parts
90084-46020
90105-06260
90105-10511
90105-T0013
90109-06283
90159-60249
90179-06274
90241-06020
90467-05081
90467-09093
Linked diagrams
8101

ILLUST NO. 2 OF 2(0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ;(0405-0407)MA,PHL,VN

Click highlighted areas on diagram

diagram 52114A 52119A 52127D 52128B 52129B 52711 52711 8102 9015960215 9017906127
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-33150

ACV3#,MCV30..IDN,TH

 1
52119A - COVER, FRONT BUMPER
52119-06902

ACV31..20E,20J;ACV3#,MCV30..(20G,24G,30G)..(IDN,TAIW,VN)..(4FC,5F)

PAINT REQ.

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-06900

ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC

 1
52711 - MOULDING, FRONT BUMPER
52711-06030

ACV3#,MCV30..IDN,TH

PLATED

 2
52711 - MOULDING, FRONT BUMPER
52711-06030

ACV3#,MCV30..IDN,TH

PLATED

 2
Common parts
90159-60215
90179-06127
Linked diagrams
8102
