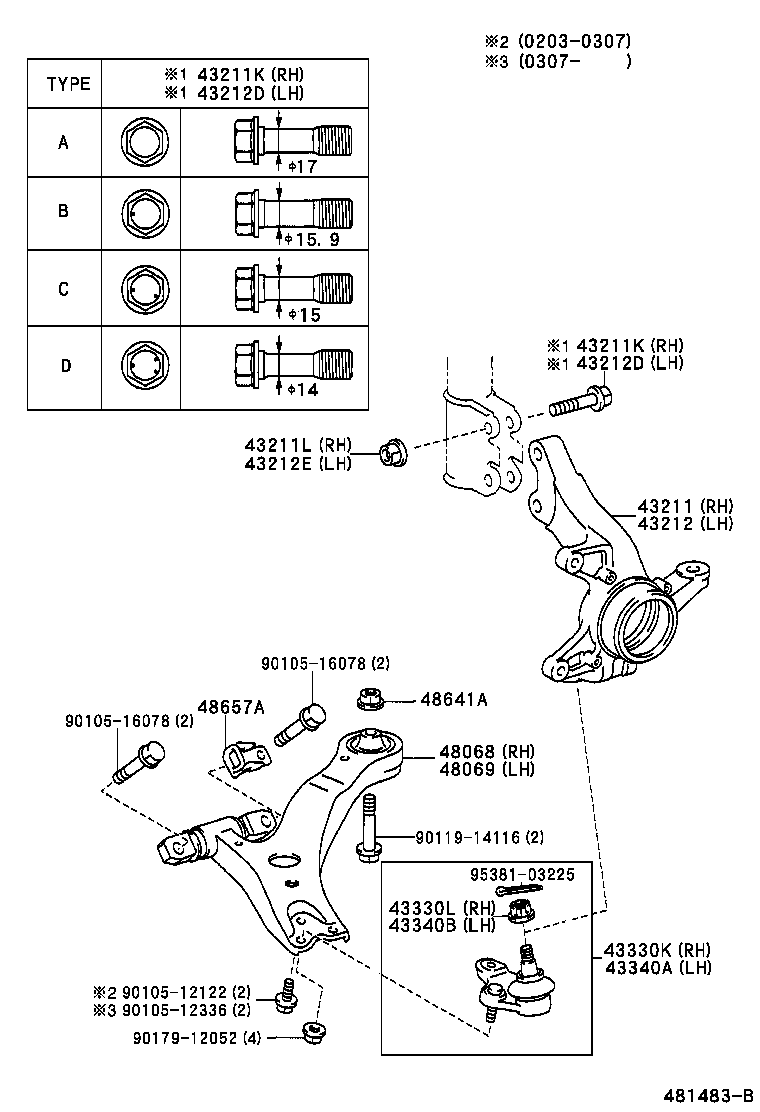

Toyota Camry ACV30 FRONT AXLE ARM & STEERING KNUCKLE

Part #	Description	Period	Qty
43211 - KNUCKLE, STEERING, RH
43211-06170	MCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC	03/2002 - 07/2004	1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17011	ACV3#,MCV30..IDN,TH OD=14,TYPE D:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17010	ACV3#,MCV30..IDN,TH OD=15,TYPE C:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17008	ACV3#,MCV30..4FC,5F OD=17,TYPE A:REFER TO ILLUSTRATION	03/2002 - 05/2004	2
90105-17009	ACV3#,MCV30..IDN,TH OD=15.9,TYPE B:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17011	ACV3#,MCV30..IDN,TH OD=14,TYPE D:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17010	ACV3#,MCV30..IDN,TH OD=15,TYPE C:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17008	ACV3#,MCV30..4FC,5F OD=17,TYPE A:REFER TO ILLUSTRATION	03/2002 - 05/2004	2
90105-17009	ACV3#,MCV30..IDN,TH OD=15.9,TYPE B:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17001	ACV3#,MCV30..4FC,5F	03/2002 - 05/2004	2
43212 - KNUCKLE, STEERING, LH
43212-06210	MCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC	03/2002 - 07/2004	1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009	ACV3#,MCV30..IDN,TH OD=15.9,TYPE B:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17011	ACV3#,MCV30..IDN,TH OD=14,TYPE D:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17010	ACV3#,MCV30..IDN,TH OD=15,TYPE C:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17008	ACV3#,MCV30..4FC,5F OD=17,TYPE A:REFER TO ILLUSTRATION	03/2002 - 05/2004	2
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009	ACV3#,MCV30..IDN,TH OD=15.9,TYPE B:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17011	ACV3#,MCV30..IDN,TH OD=14,TYPE D:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17010	ACV3#,MCV30..IDN,TH OD=15,TYPE C:REFER TO ILLUSTRATION	03/2002 - 05/2004	1
90105-17008	ACV3#,MCV30..4FC,5F OD=17,TYPE A:REFER TO ILLUSTRATION	03/2002 - 05/2004	2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17001	ACV3#,MCV30..4FC,5F	03/2002 - 05/2004	2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09180	ACV3#,MCV30..IDN,TH	03/2002 - 05/2004	1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003	ACV3#,MCV30..4FC,5F	03/2002 - 05/2004	1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-09020	ACV3#,MCV30..IDN,TH	03/2002 - 05/2004	1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003	ACV3#,MCV30..4FC,5F	03/2002 - 05/2004	1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-33050	ACV3#,MCV30..IDN,TH	03/2002 - 05/2004	1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-33050	ACV3#,MCV30..IDN,TH	03/2002 - 05/2004	1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90179-14068	ACV3#,MCV30..IDN,TH	03/2002 - 05/2004	2
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-06020	ACV3#,MCV30..IDN,TH	03/2002 - 05/2004	2
Common parts
90105-12122
90105-12336
90105-16078
90119-14116
90179-12052
95381-03225

ACV30R-JEMNKD (2002)

(0203-0404)TAIW ; (0203-0405)IDN,TH ; (0203-0407)MA
