ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

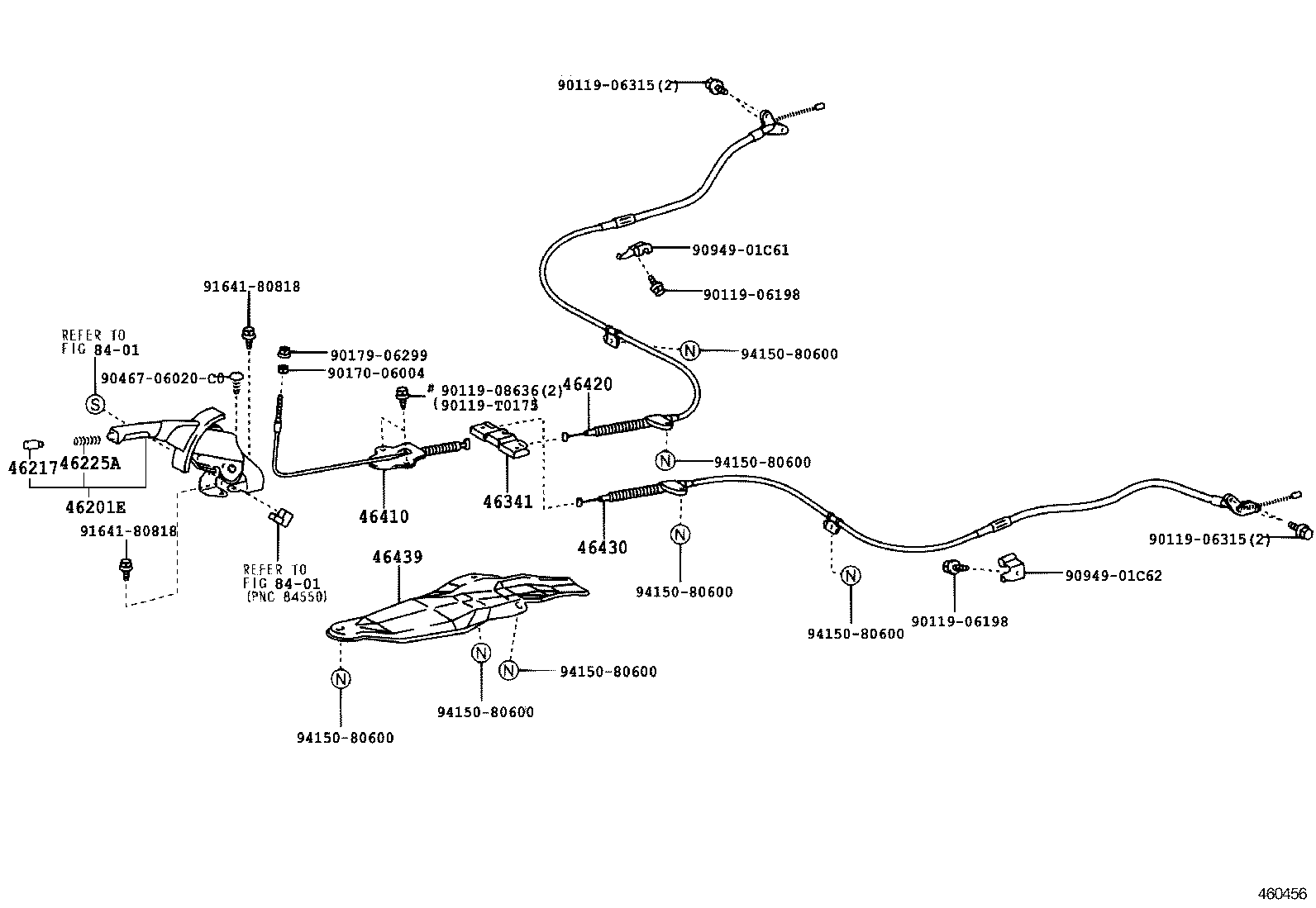

ILLUST NO. 1 OF 2(0205- )5F

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46341 46410 46420 46430 46439 8401 8401 9011906198 9011906198 9011906315 9011906315 9011908636 90119T0175 9017006004 9017906299 9046706020C0 9094901C61 9094901C62 9164180818 9164180818 9415080600 9415080600 9415080600 9415080600 9415080600 9415080600 9415080600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-33170E0

ACV30..5F

SANDAL WOOD,TRIM4#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-20070

ACV3#,MCV30..IDN,MA,PHL,VN

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-33100

ACV3#,MCV30..IDN,MA,PHL,VN

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-33100

ACV3#,MCV30..IDN,MA,PHL,VN

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-33020

ACV3#,MCV30..IDN,MA,PHL,VN

 1
Common parts
90119-06198
90119-06315
90119-08636
90119-T0175
90170-06004
90179-06299
90467-06020C0
90949-01C61
90949-01C62
91641-80818
94150-80600
Linked diagrams
8401
