ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )5F

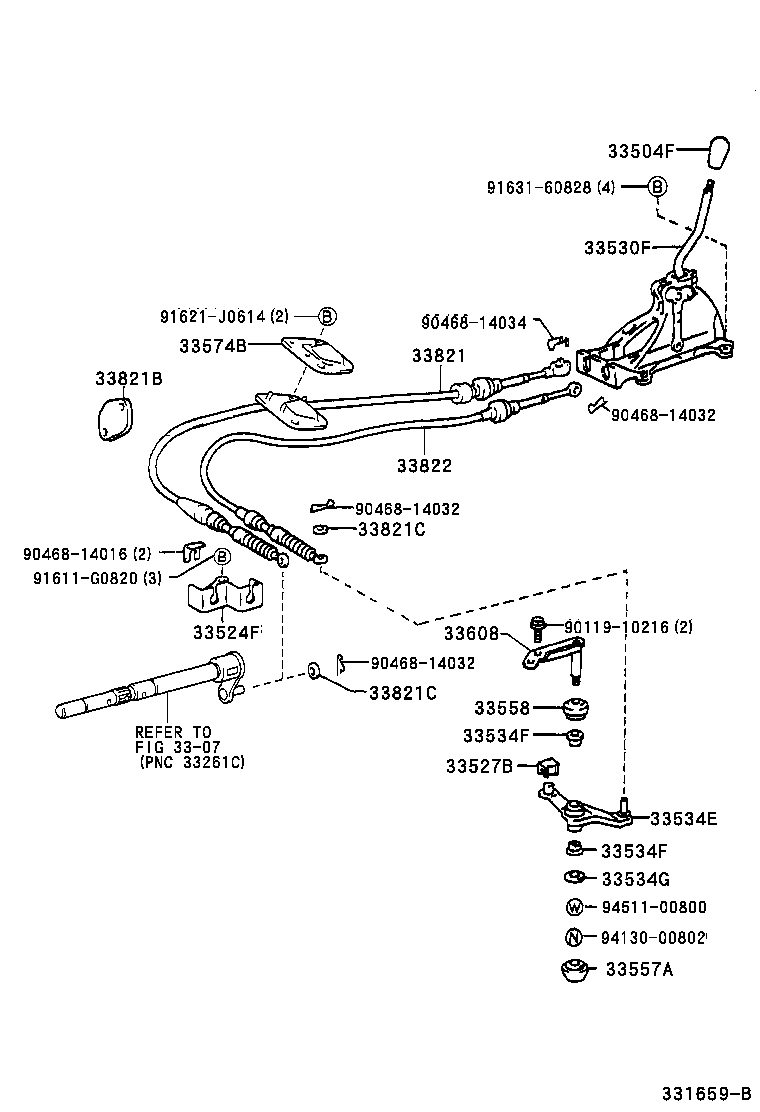

Click highlighted areas on diagram

diagram 3307 33504F 33524F 33527B 33530F 33534E 33534F 33534F 33534G 33557A 33558 33574B 33608 33821 33821B 33821C 33821C 33822 9011910216 9046814016 9046814032 9046814032 9046814032 9046814034 91611G0820 91621J0614 9163160828 9413000802 9451100800
Part # Description Qty Price
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-33120

ACV30..IDN..5F

 1
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-33060

ACV30..IDN..5F

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-33170

ACV30..IDN..5F

 1
33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
33577-33060

ACV30..IDN..5F

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08077

ACV30..IDN..5F

OD=30

 2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08077

ACV30..IDN..5F

OD=30

 2
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-33080

ACV30..IDN..5F

 1
Common parts
90119-10216
90468-14016
90468-14032
90468-14034
91611-G0820
91621-J0614
91631-60828
94130-00802
94511-00800
Linked diagrams
3307
