ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )5F

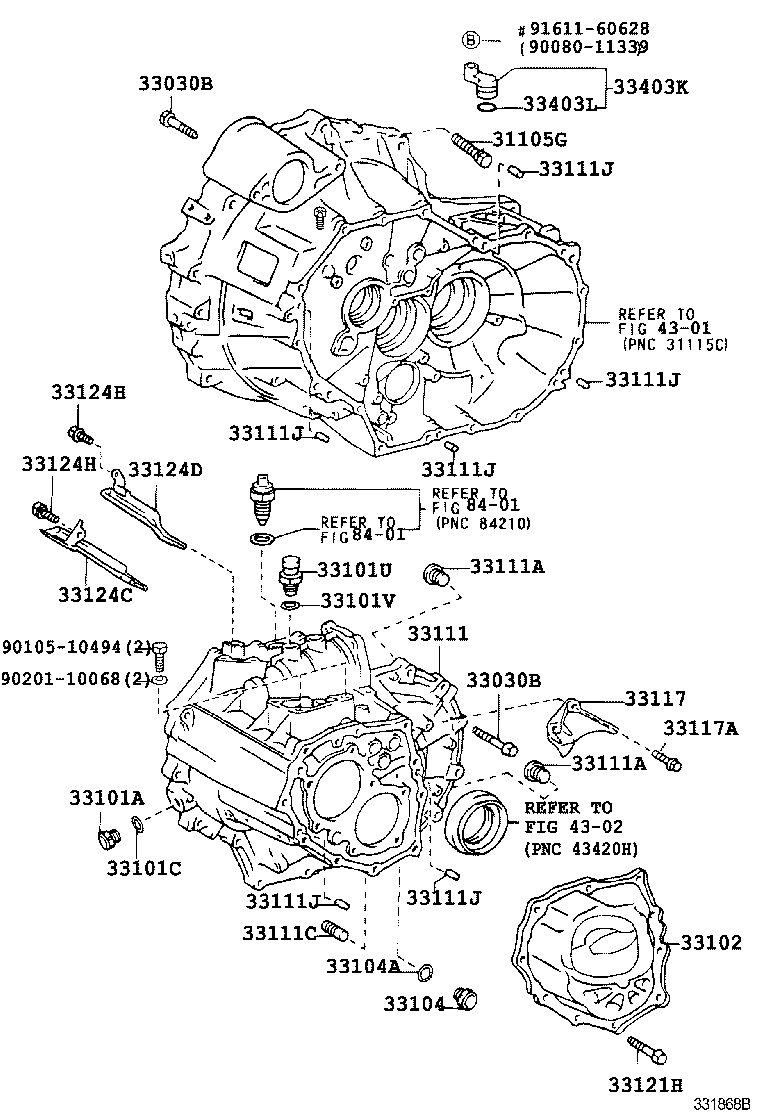

Click highlighted areas on diagram

E354

diagram 31105G 33030B 33030B 33101A 33101C 33101U 33101V 33102 33104 33104A 33111 33111A 33111A 33111C 33111J 33111J 33111J 33111J 33111J 33111J 33117 33117A 33121H 33124C 33124D 33124H 33124H 33403K 33403L 4301 4302 8401 8401 9008011339 9010510494 9020110068 9161160628
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91512-61060

ACV30..IDN..5F

*10-1.25PX60-30

 2
90119-12252

ACV30..IDN..5F

*12-1.25PX60-30

 2
90105-12147

ACV30..IDN..5F

*12-1.25PX74.5-25

 1
91512-61065

ACV30..IDN..5F

*10-1.25PX65-30

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-33010

ACV30..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-28041

ACV30..5F

 1
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33107-12030

ACV30..IDN..5F

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
91641-H0820

ACV30..IDN..5F

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-20230

ACV30..IDN..5F

 1
33403L - RING, O
96711-24018

ACV30..IDN..5F

 1
Common parts
90080-11339
90105-10494
90201-10068
91611-60628
Linked diagrams
4301
4302
8401
