ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )5F

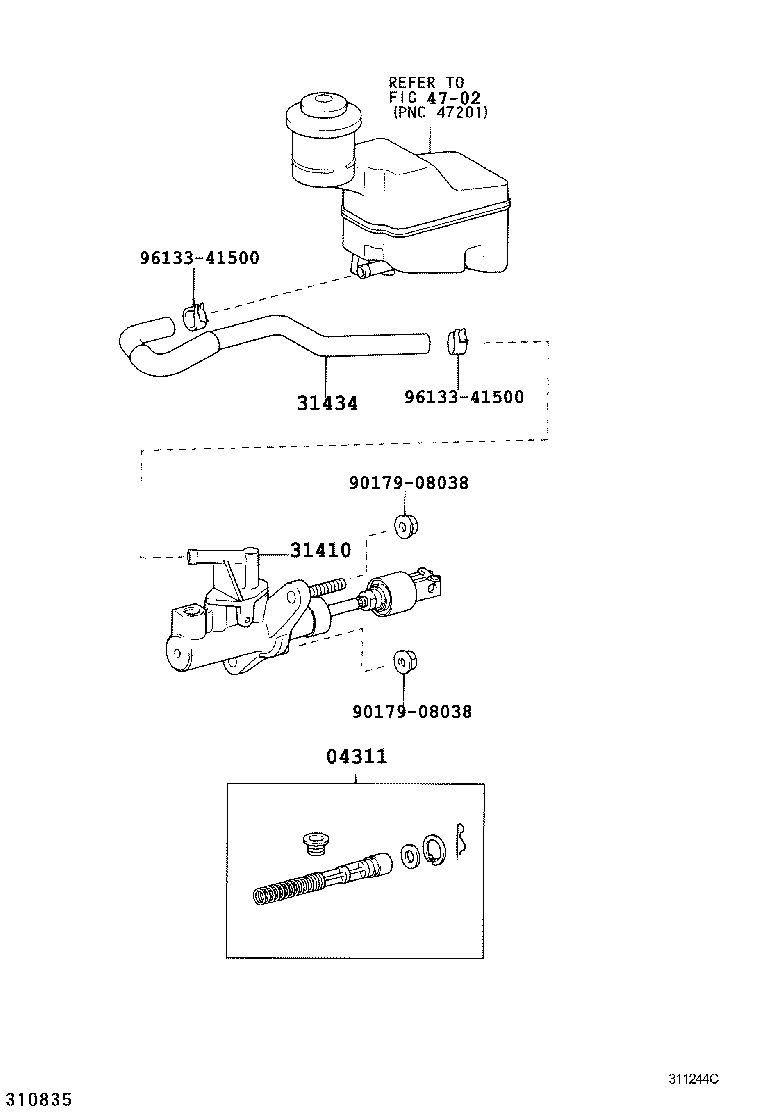

Click highlighted areas on diagram

diagram 04311 31410 31434 4702 9017908038 9017908038 9613341500 9613341500
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12110

ACV30..IDN..5F

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-20070

ACV30..IDN..5F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-33020

ACV30..IDN..5F

 1
Common parts
90179-08038
96133-41500
Linked diagrams
4702
