ACV30R-JEMNKD (2002)
Toyota Camry

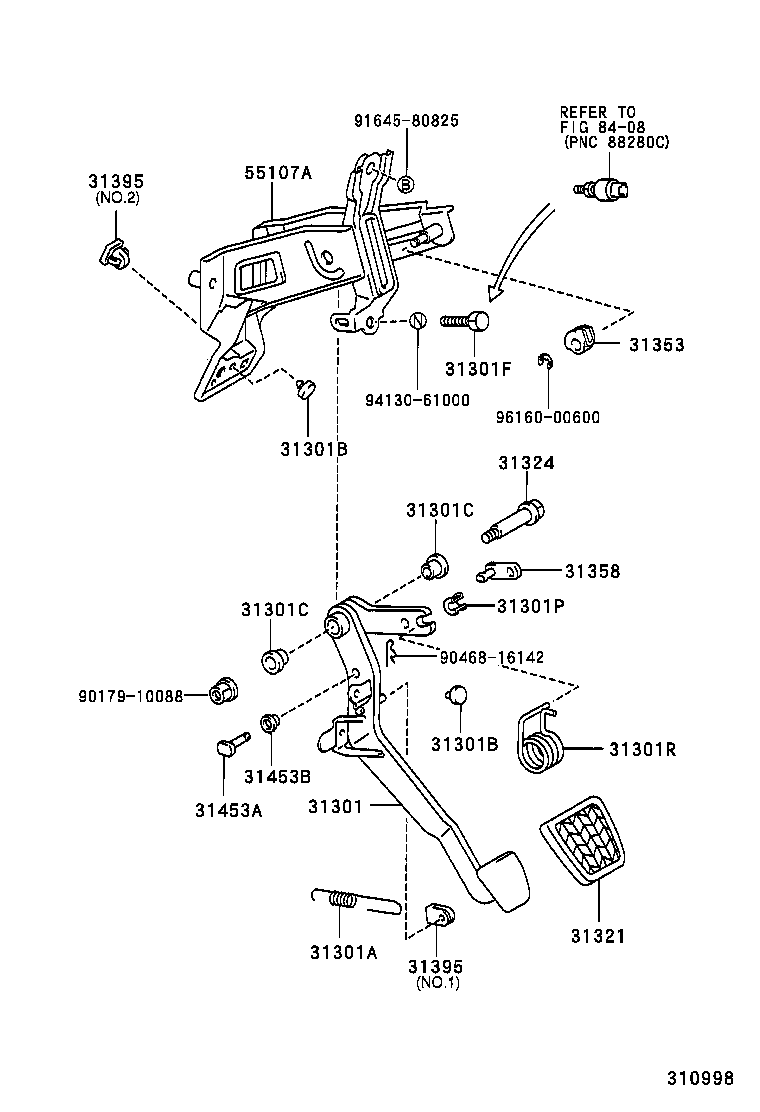

ILLUST NO. 1 OF 2(0205- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-33050 |
ACV30..IDN..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-18027 |
ACV30..IDN..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ACV30..IDN..5F |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ACV30..IDN..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ACV30..IDN..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ACV30..IDN..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ACV30..IDN..5F |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
ACV30..IDN..5F |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03110 |
ACV30..IDN..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
ACV30..IDN..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90109-10167 |
ACV30..IDN..5F |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
ACV30..IDN..5F |
1 | ||
| 31358 - CAP, OVER CENTER SPRING | ||||
| 31358-42010 |
ACV30..IDN..5F |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33020 |
ACV30..IDN..5F NO.2 |
1 | ||
| 31395-33010 |
ACV30..IDN..5F NO.1 |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33020 |
ACV30..IDN..5F NO.2 |
1 | ||
| 31395-33010 |
ACV30..IDN..5F NO.1 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08143 |
ACV30..IDN..5F L=30 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
ACV30..IDN..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-33030 |
ACV30..IDN..5F |
1 | ||
| Common parts | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 91645-80825 | ||||
| 94130-61000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8408 | ||||

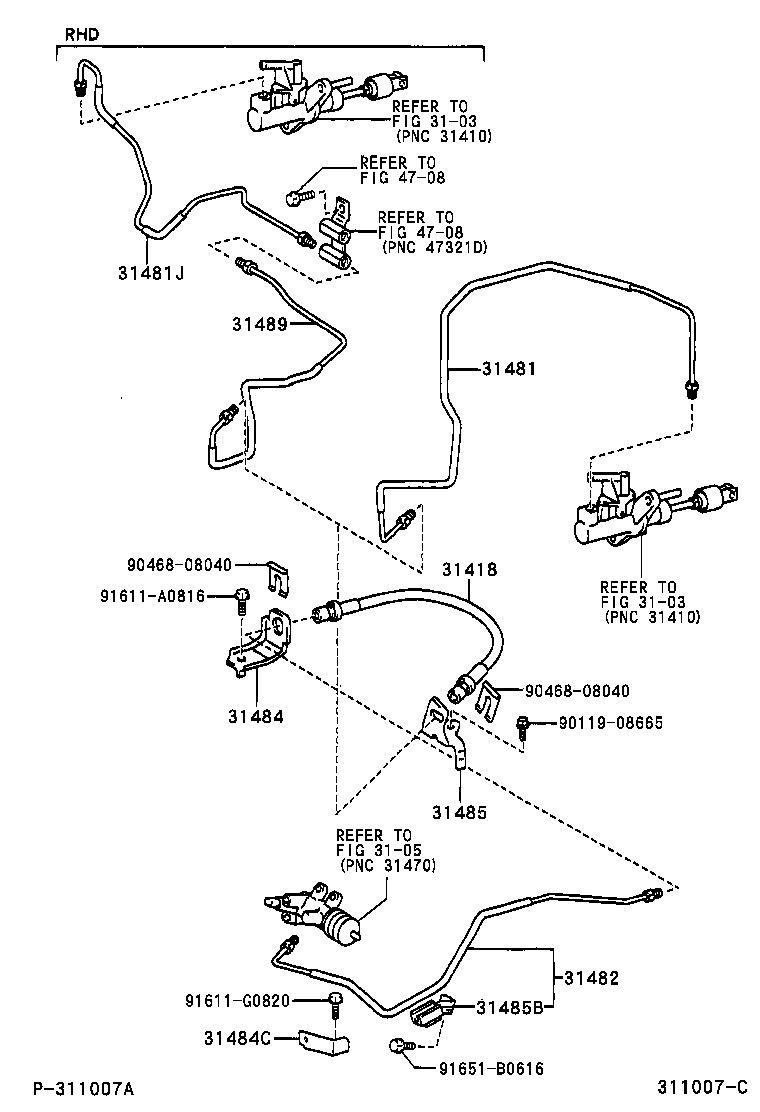

ILLUST NO. 2 OF 2(0205-0307)5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02C56 |
ACV30..IDN..5F |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-33060 |
ACV30..IDN..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-33070 |
ACV30..IDN..5F NO.2 |
1 | ||
| 31482-33060 |
ACV30..IDN..5F |
1 | ||
| 31482-33061 |
ACV30..IDN..5F NO.1 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-33030 |
ACV30..IDN..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-42080 |
ACV30..IDN..5F NO.2 |
1 | ||
| 31485-33010 |
ACV30..IDN..5F NO.1 |
1 | ||
| 31485B - BRACKET, TUBE CLAMP | ||||
| 47386-33040 |
ACV30..IDN..5F |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-33010 |
ACV30..IDN..5F |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90468-08040 | ||||
| 91611-A0816 | ||||
| 91611-G0820 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||

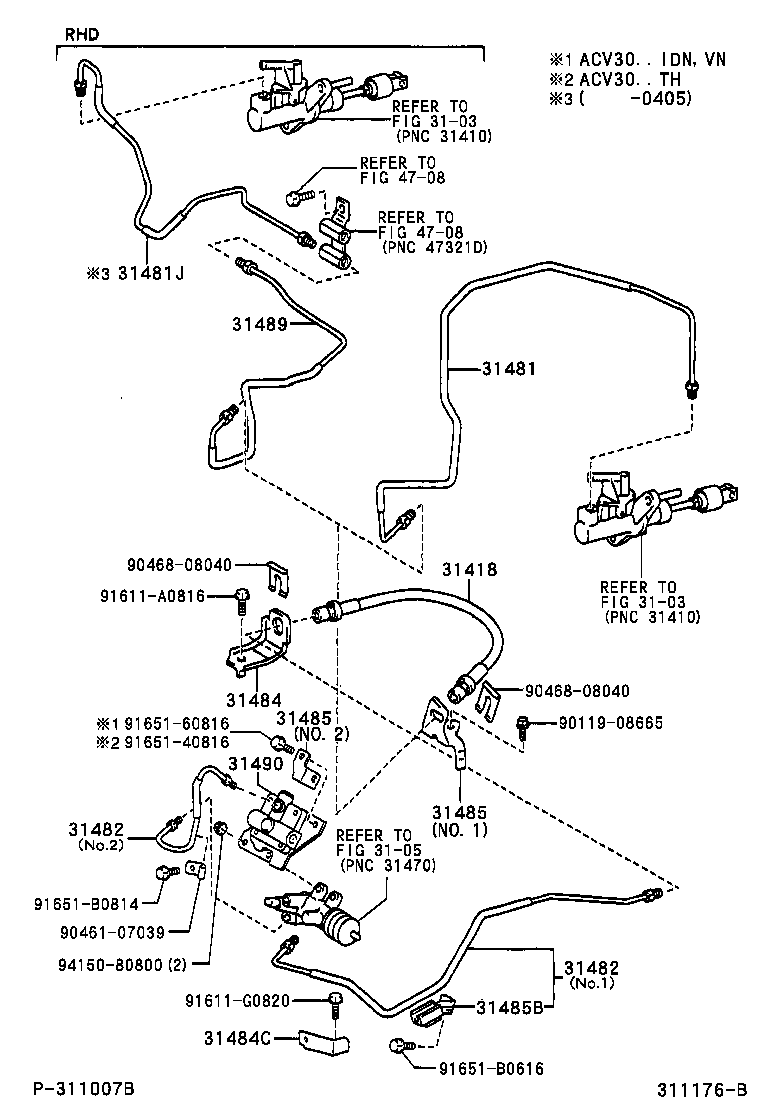

ILLUST NO. 2 OF 2(0307- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02C56 |
ACV30..IDN..5F |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-33060 |
ACV30..IDN..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-33070 |
ACV30..IDN..5F NO.2 |
1 | ||
| 31482-33060 |
ACV30..IDN..5F |
1 | ||
| 31482-33061 |
ACV30..IDN..5F NO.1 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-33070 |
ACV30..IDN..5F NO.2 |
1 | ||
| 31482-33060 |
ACV30..IDN..5F |
1 | ||
| 31482-33061 |
ACV30..IDN..5F NO.1 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-33030 |
ACV30..IDN..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-42080 |
ACV30..IDN..5F NO.2 |
1 | ||
| 31485-33010 |
ACV30..IDN..5F NO.1 |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-42080 |
ACV30..IDN..5F NO.2 |
1 | ||
| 31485-33010 |
ACV30..IDN..5F NO.1 |
1 | ||
| 31485B - BRACKET, TUBE CLAMP | ||||
| 47386-33040 |
ACV30..IDN..5F |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-33010 |
ACV30..IDN..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-42010 |
ACV30..IDN..5F |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90461-07039 | ||||
| 90468-08040 | ||||
| 91611-A0816 | ||||
| 91611-G0820 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91651-B0616 | ||||
| 91651-B0814 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
