ACV30R-JEMNKD (2002)

Toyota Camry

Production May 2002 - May 2004
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

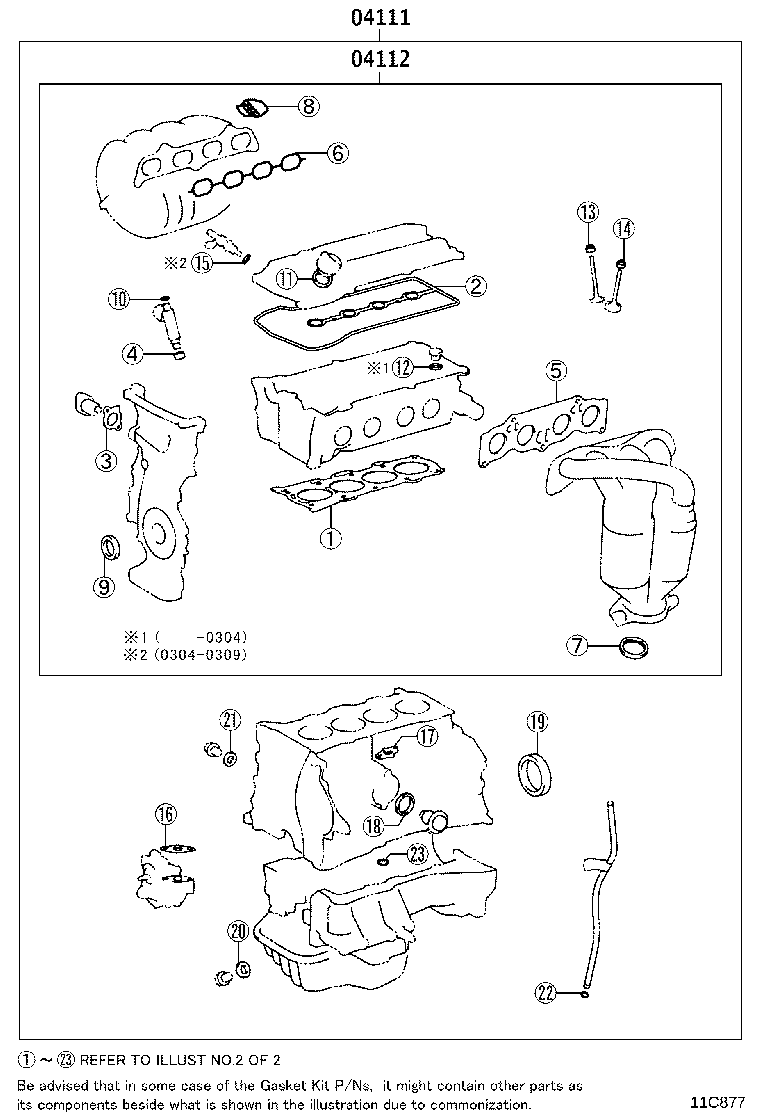

ILLUST NO. 1 OF 2(0203-0309)2AZFE..RHD

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-28210

2AZFE..ACV30..IDN,TH

 1
04111-0H040

2AZFE..ACV30..RHD

 1
04111-0H041

2AZFE..ACV30..RHD

 1
04111-0H042

2AZFE..ACV30..RHD

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0H040

2AZFE..ACV30..RHD

 1
04112-0H041

2AZFE..ACV30..RHD

 1
04112-0H042

2AZFE..ACV30..RHD

 1
04112-28210

2AZFE..ACV30..IDN,TH

 1

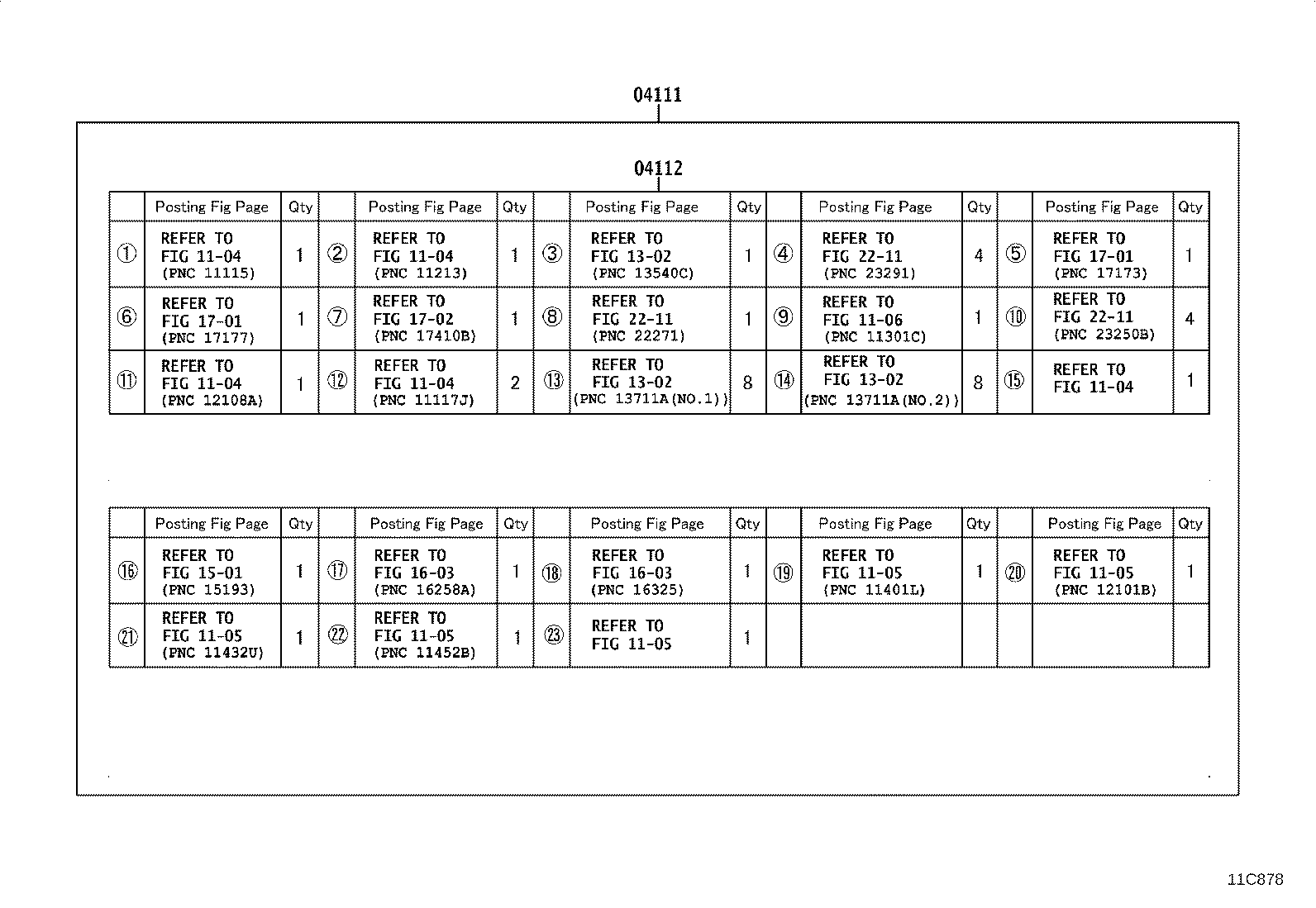

ILLUST NO. 2 OF 2(0203-0309)2AZFE..RHD

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1105 1105 1105 1105 1105 1106 1302 1302 1302 1501 1603 1603 1701 1701 1702 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-28210

2AZFE..ACV30..IDN,TH

 1
04111-0H040

2AZFE..ACV30..RHD

 1
04111-0H041

2AZFE..ACV30..RHD

 1
04111-0H042

2AZFE..ACV30..RHD

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0H040

2AZFE..ACV30..RHD

 1
04112-0H041

2AZFE..ACV30..RHD

 1
04112-0H042

2AZFE..ACV30..RHD

 1
04112-28210

2AZFE..ACV30..IDN,TH

 1
Linked diagrams
1104
1105
1106
1302
1501
1603
1701
1702
2211

ILLUST NO. 1 OF 2(0309-0405)2AZFE..IDN ; (0309-0510)2AZFE..MA,TH; (0407-0510)2AZFE..VN

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-28210

2AZFE..ACV30..IDN,TH

 1
04111-0H040

2AZFE..ACV30..RHD

 1
04111-0H041

2AZFE..ACV30..RHD

 1
04111-0H042

2AZFE..ACV30..RHD

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0H040

2AZFE..ACV30..RHD

 1
04112-0H041

2AZFE..ACV30..RHD

 1
04112-0H042

2AZFE..ACV30..RHD

 1
04112-28210

2AZFE..ACV30..IDN,TH

 1

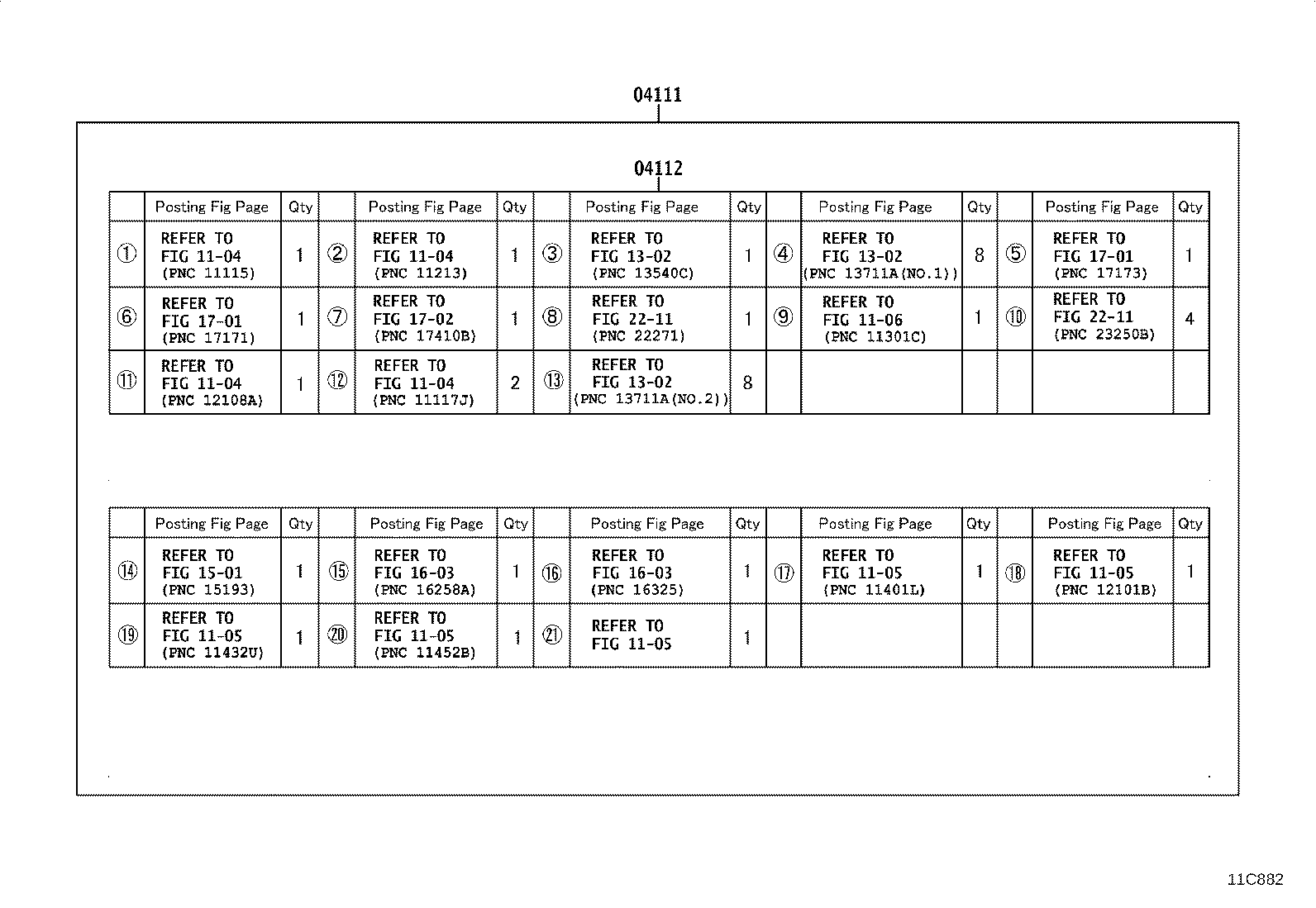

ILLUST NO. 2 OF 2(0309-0405)2AZFE..IDN ; (0309-0510)2AZFE..MA,TH; (0407-0510)2AZFE..VN

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1105 1105 1105 1106 1302 1302 1302 1501 1603 1603 1701 1701 1702 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-28210

2AZFE..ACV30..IDN,TH

 1
04111-0H040

2AZFE..ACV30..RHD

 1
04111-0H041

2AZFE..ACV30..RHD

 1
04111-0H042

2AZFE..ACV30..RHD

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0H040

2AZFE..ACV30..RHD

 1
04112-0H041

2AZFE..ACV30..RHD

 1
04112-0H042

2AZFE..ACV30..RHD

 1
04112-28210

2AZFE..ACV30..IDN,TH

 1
Linked diagrams
1104
1105
1106
1302
1501
1603
1701
1702
2211
