MXVA71L-JEXGBC (2021)

Toyota Camry/Hybrid (China)

Production Mar 2021 - Sep 9999
Engine M20CFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )M20CFKS

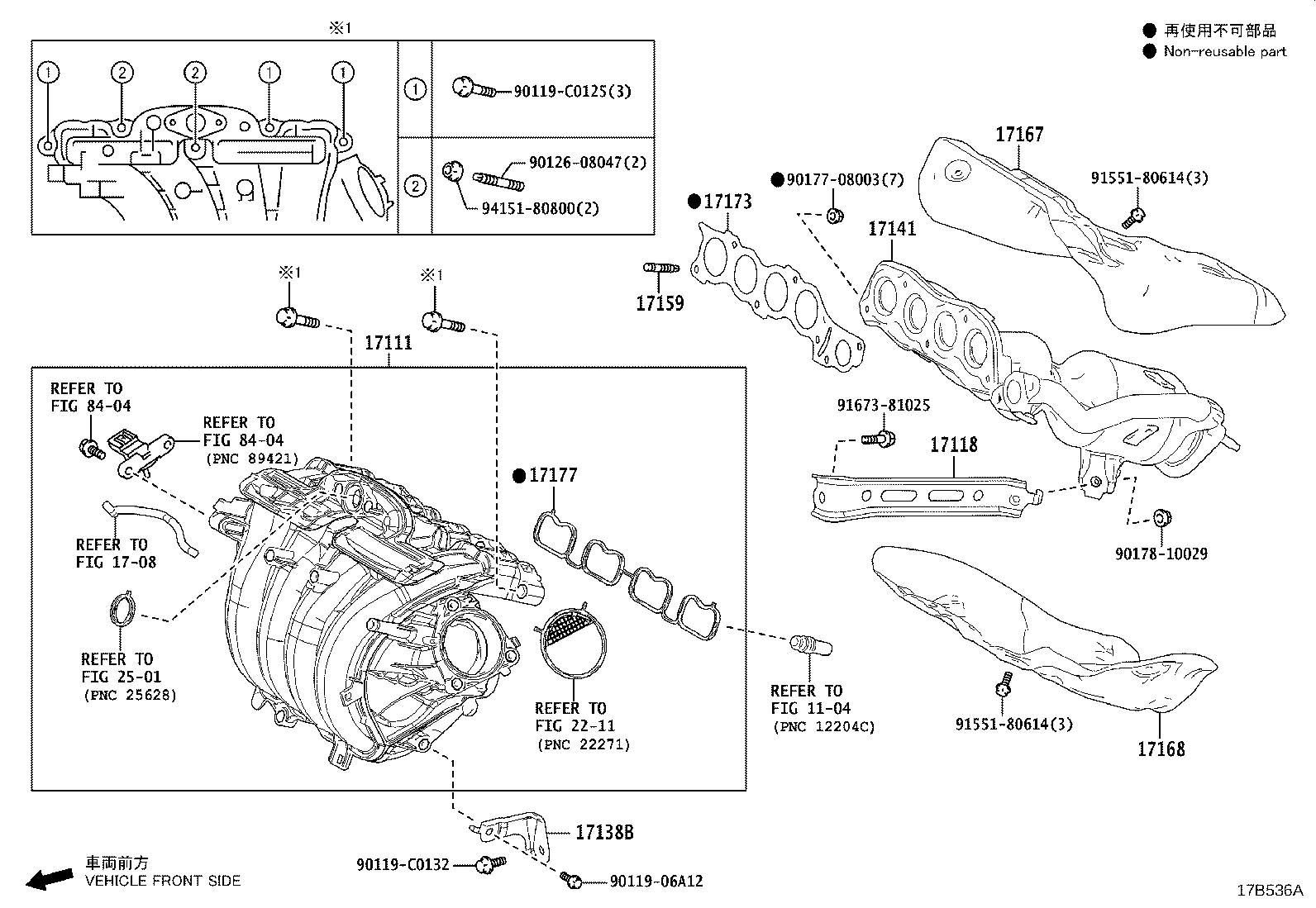

Click highlighted areas on diagram

diagram 1104 1708 17111 17118 17138B 17141 17159 17167 17168 17173 17177 2211 2501 8404 8404 9011906A12 90119C0125 90119C0132 9012608047 9017708003 9017810029 9155180614 9155180614 9167381025 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-F2060

M20CFKS..MXVA71

 1
17118 - STAY, MANIFOLD
17118-F2060

M20CFKS..MXVA71

 1
17138B - STAY, INTAKE MANIFOLD
17138-F2030

M20CFKS..MXVA71

 1
17141 - MANIFOLD, EXHAUST
17141-F2060

M20CFKS..MXVA71

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-C0010

M20CFKS..MXVA71

 7
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-F2020

M20CFKS..MXVA71

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-F2020

M20CFKS..MXVA71

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-F2030

M20CFKS..MXVA71

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-F2020

M20CFKS..MXVA71

 1
Common parts
90119-06A12
90119-C0125
90119-C0132
90126-08047
90177-08003
90178-10029
91551-80614
91673-81025
94151-80800
Linked diagrams
1104
1708
2211
2501
8404
