MXVA71L-JEXEBC (2021)

Toyota Camry/Hybrid (China)

Production Mar 2021 - Sep 9999
Engine M20CFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(2103- )

Click highlighted areas on diagram

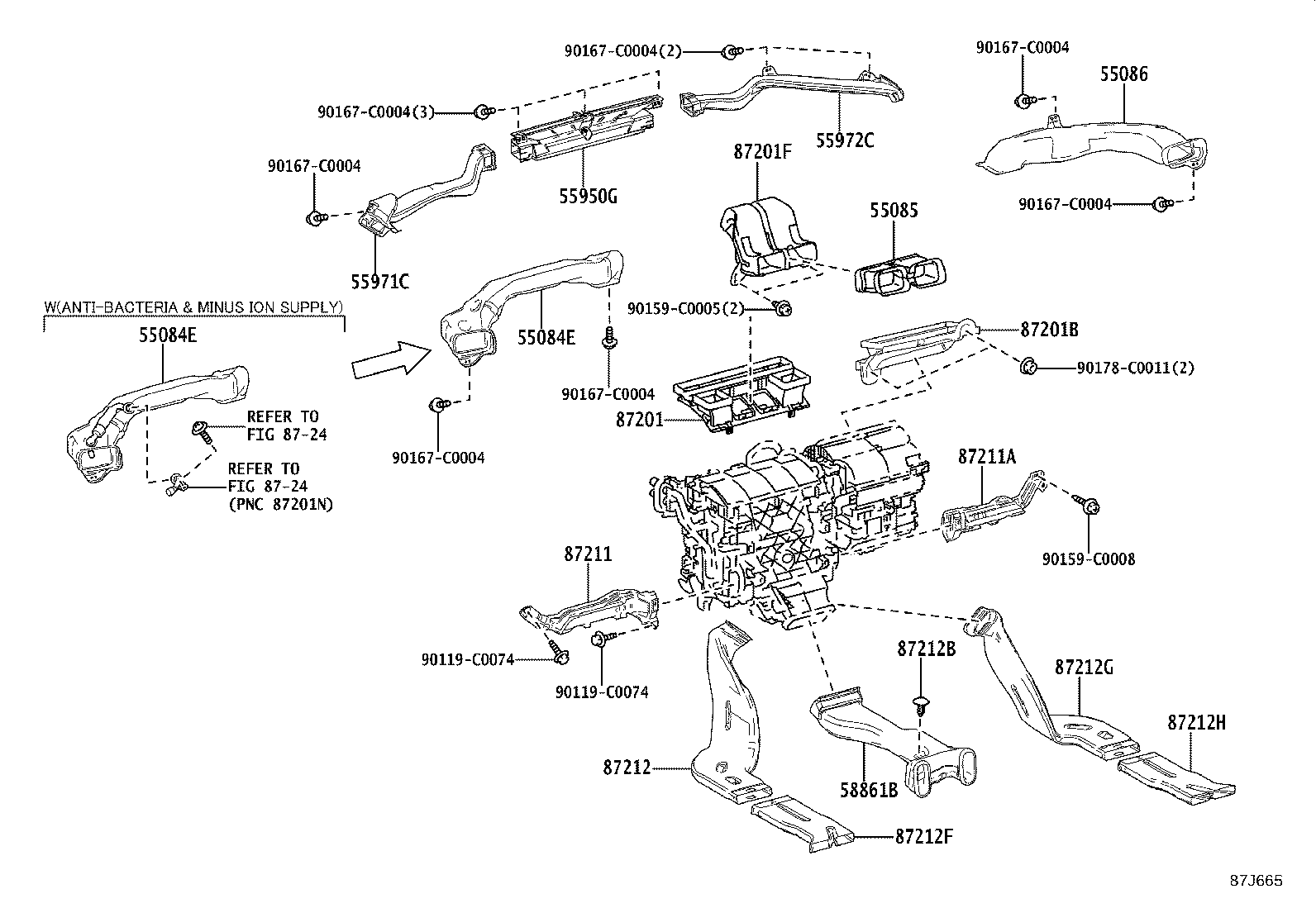

AIR DUCT

diagram 55084E 55084E 55085 55086 55950G 55971C 55972C 58861B 87201 87201B 87201F 87211 87211A 87212 87212B 87212F 87212G 87212H 8724 8724 90119C0074 90119C0074 90159C0005 90159C0008 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90178C0011
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55843-06341

AXVH71,MXVA71..E

 1
55870-06051

AXVA70,AXVH71,MXVA71..G,S

 1
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55843-06341

AXVH71,MXVA71..E

 1
55870-06051

AXVA70,AXVH71,MXVA71..G,S

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55844-06310

AXVA70,AXVH71,MXVA71

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55845-06170

AXVA70,AXVH71,MXVA71

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-06170

AXVA70,AXVH71,MXVA71

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-06160

AXVA70,AXVH71,MXVA71

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-06160

AXVA70,AXVH71,MXVA71

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-06210

AXVA70,AXVH71,MXVA71

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-06C20

AXVA70,AXVH71,MXVA71

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-06800

AXVA70,AXVH71,MXVA71

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87201-06C10

AXVA70,AXVH71,MXVA71

 1
87211 - DUCT, AIR, NO.1
87201-06780

AXVA70,AXVH71,MXVA71

 1
87211A - DUCT, AIR, NO.2
87201-06790

AXVA70,AXVH71,MXVA71

 1
87212 - DUCT, AIR, REAR NO.1
87213-06100

AXVA70,AXVH71,MXVA71

 1
87212B - CLIP, AIR DUCT
90467-C0077C0

AXVA70,AXVH71,MXVA71

BLACK

 1
87212F - DUCT, AIR, REAR NO.2
87216-06060

AXVA70,AXVH71,MXVA71

 1
87212G - DUCT, AIR, REAR NO.3
87212-06100

AXVA70,AXVH71,MXVA71

 1
87212H - DUCT, AIR, REAR NO.4
87215-06060

AXVA70,AXVH71,MXVA71

 1
Common parts
90119-C0074
90159-C0005
90159-C0008
90167-C0004
90178-C0011
Linked diagrams
8724
