AXVH71L-JEXSBC (2019)

Toyota Camry/Hybrid (China)

Production Mar 2019 - Mar 2021
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2103)

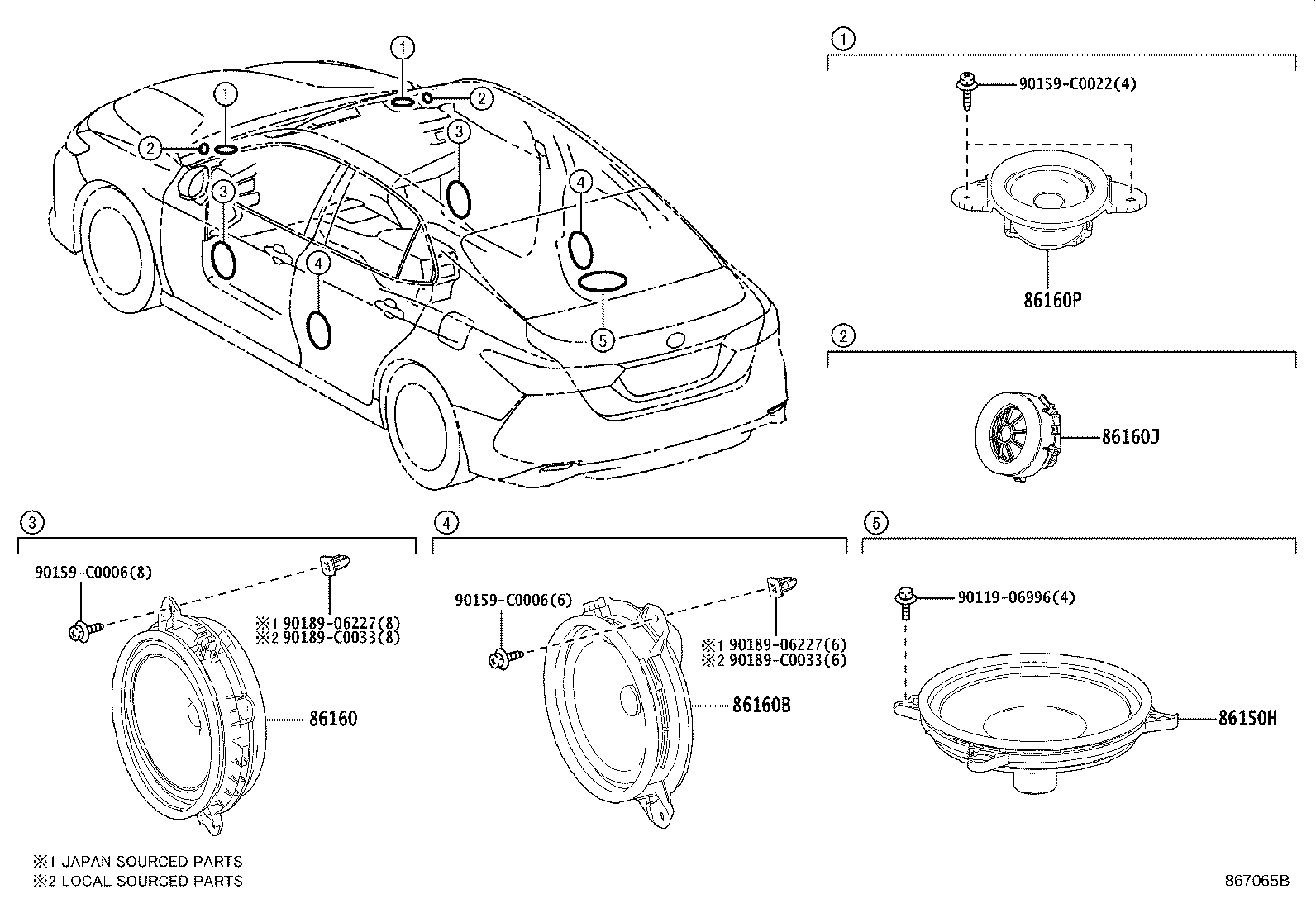

Click highlighted areas on diagram

diagram 86150H 86160 86160B 86160J 86160P 9011906996 90159C0006 90159C0006 90159C0022 9018906227 9018906227 90189C0033 90189C0033
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-06A20

AXVA70,AXVH71,MXVA71

 2
86160B - SPEAKER ASSY, REAR
86160-02C10

AXVA70,AXVH71,MXVA71

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-06690

AXVA70,AXVH71,MXVA71

 2
Common parts
90119-06996
90159-C0006
90159-C0022
90189-06227
90189-C0033
