AXVH71L-JEXGBC (2021)

Toyota Camry/Hybrid (China)

Production Mar 2021 - Sep 9999
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

Click highlighted areas on diagram

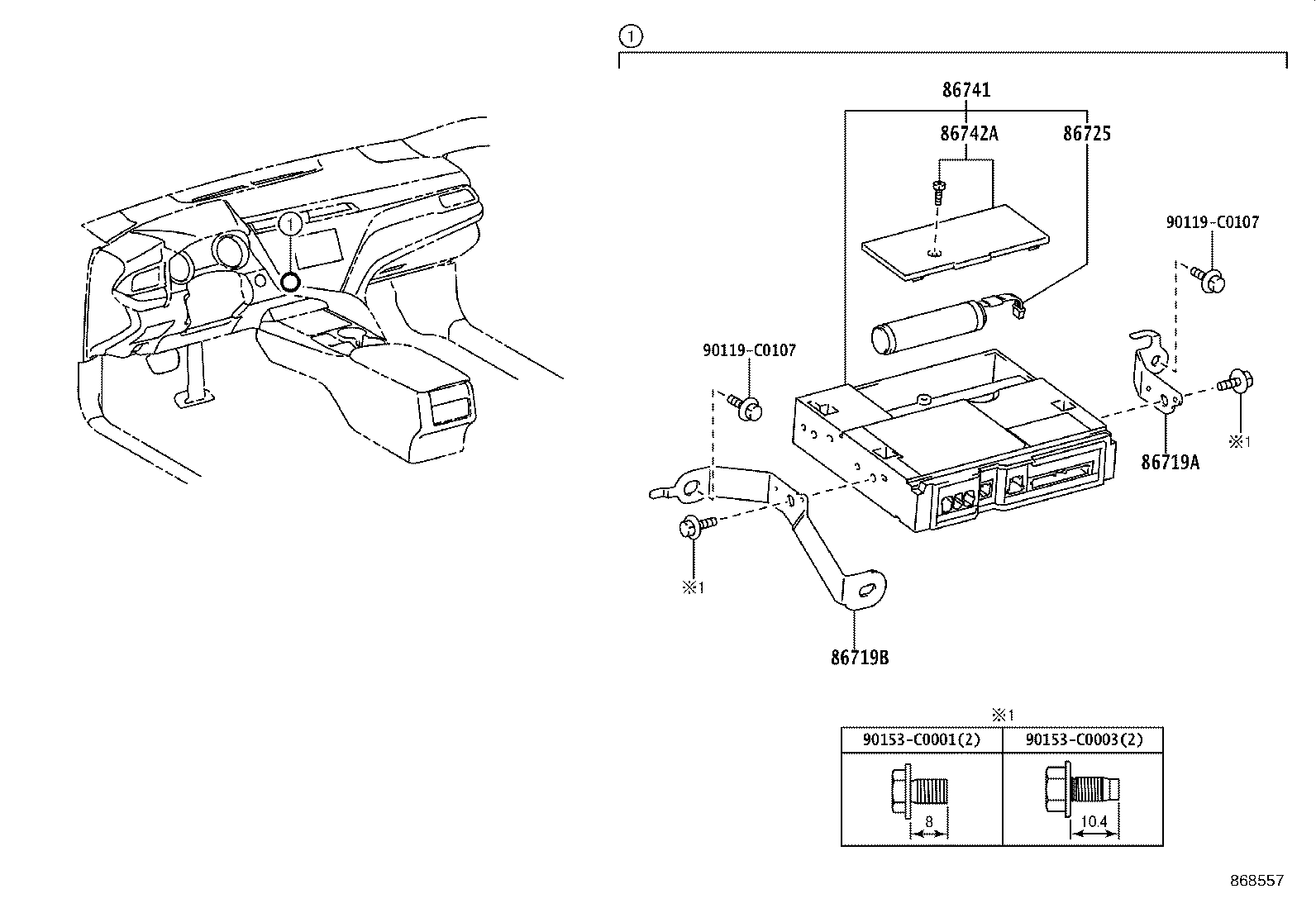

diagram 86719A 86719B 86725 86741 86742A 90119C0107 90119C0107 90153C0001 90153C0003
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-06170

AXVA70,AXVH71,MXVA71

 1
86719B - BRACKET, TELEPHONE NO.2
86719-06180

AXVA70,AXVH71,MXVA71

 1
86725 - BATTERY, MOBILEPHONE
86725-F4010

AXVA70,AXVH71,MXVA71

 1
86741 - TRANSCEIVER, TELEPHONE
86741-06100

AXVA70,AXVH71,MXVA71

 1
86742A - COVER, TRANSCEIVER
86742-F4010

AXVA70,AXVH71,MXVA71

 1
Common parts
90119-C0107
90153-C0001
90153-C0003
