AXVH71L-JEXGBC (2021)

Toyota Camry/Hybrid (China)

Production Mar 2021 - Sep 9999
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

Click highlighted areas on diagram

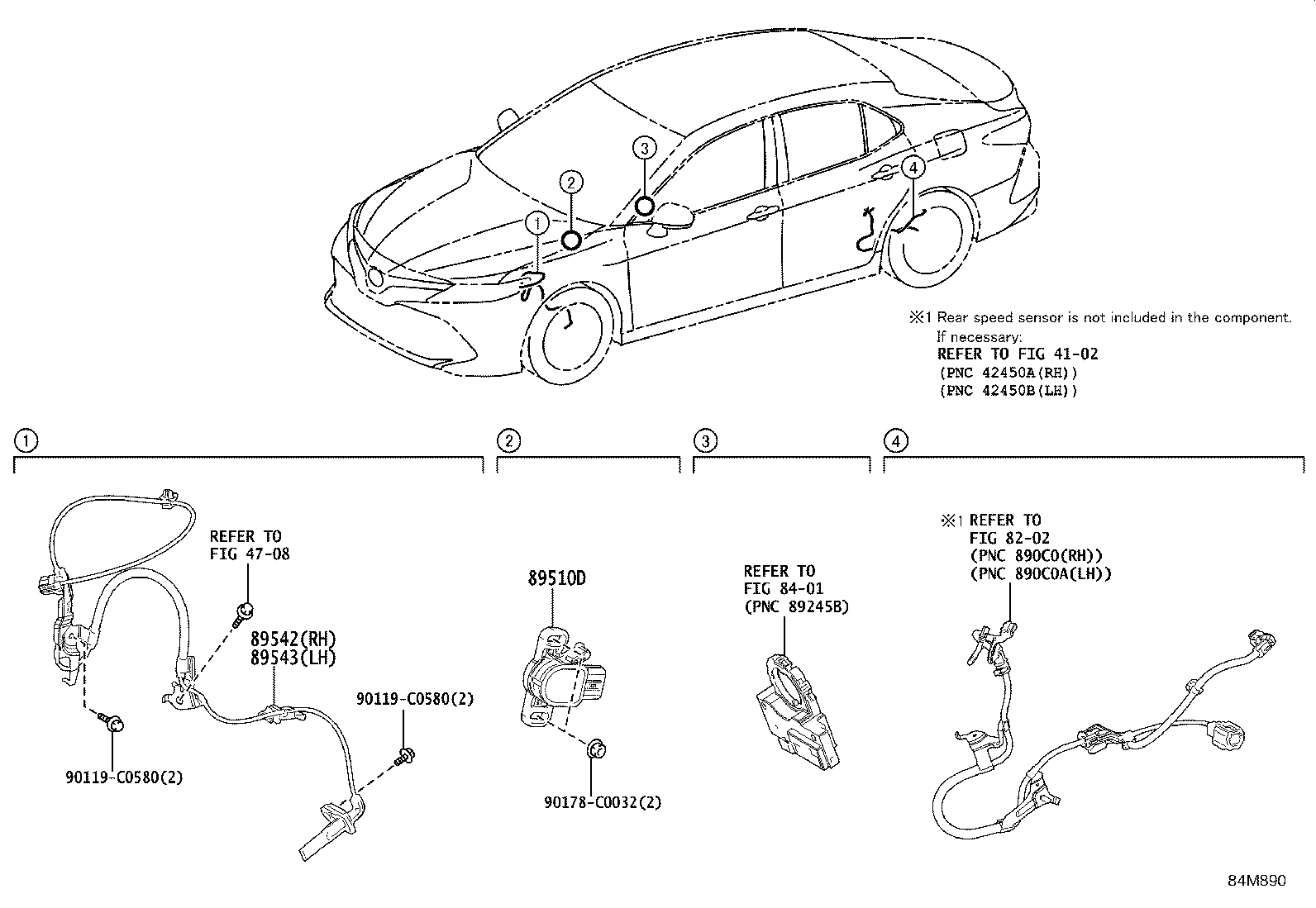

diagram 4102 4708 8202 8401 89510D 89542 89543 90119C0580 90119C0580 90178C0032
Part # Description Qty Price
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-02020

AXVH71

 1
89542 - SENSOR, SPEED, FRONT RH
89542-06110

AXVA70,AXVH71,MXVA71

 1
89543 - SENSOR, SPEED, FRONT LH
89543-06110

AXVA70,AXVH71,MXVA71

 1
Common parts
90119-C0580
90178-C0032
Linked diagrams
4102
4708
8202
8401
