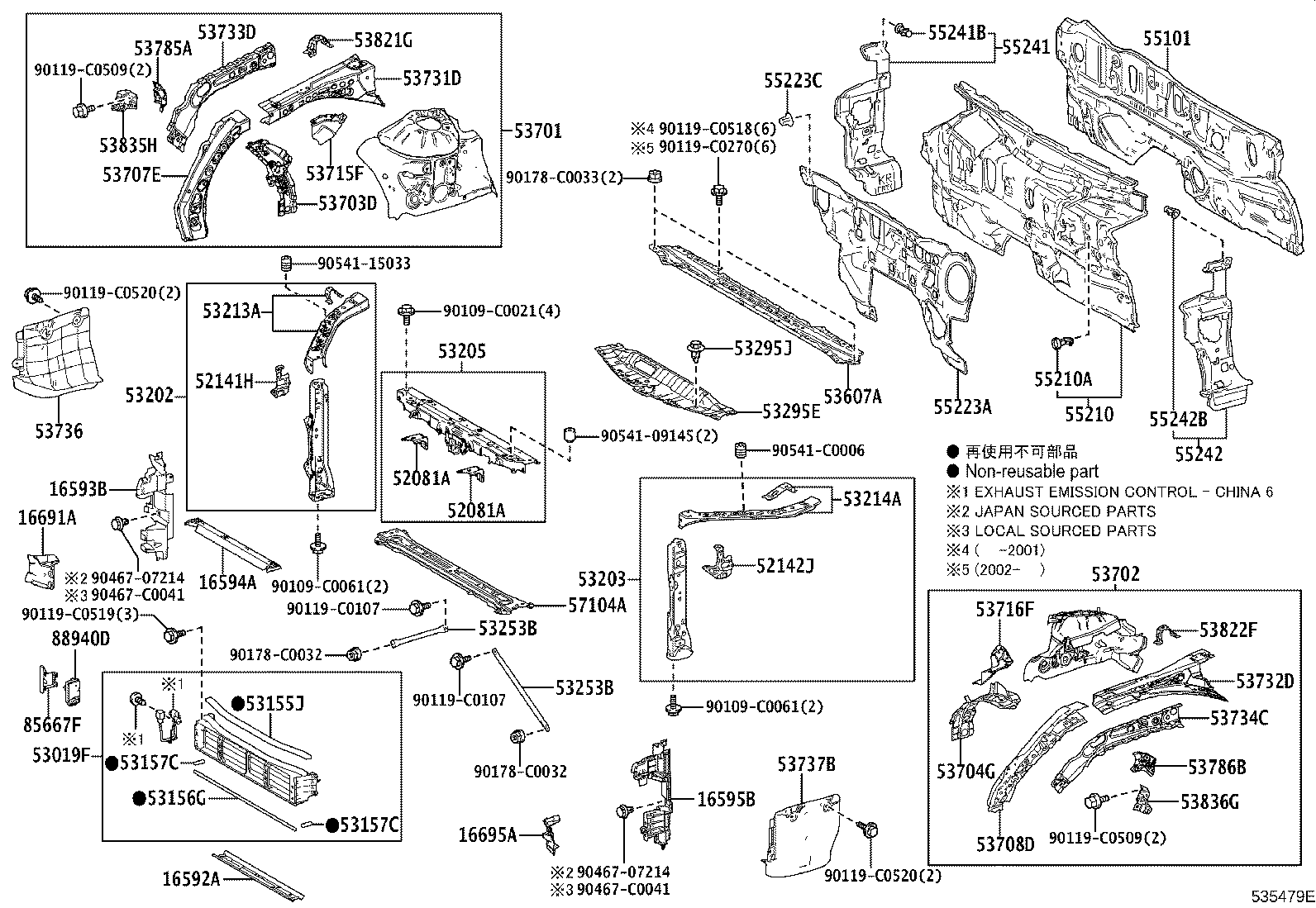

AXVH71L-JEXGBC (2017)
Toyota Camry/Hybrid (China)
(1712-1902)ASV71 ; (1712-2103)AXVH71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-F0020 |
A25#,M20CFKS..AXVA70,AXVH71,MXVA71 |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-F0020 |
A25BFXS..AXVH71..E,G |
1 | ||
| 16593-F0150 |
A25BFXS..AXVH71..S |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-F0020 |
A25#,M20CFKS..AXVA70,AXVH71,MXVA71 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-F0020 |
A25BFXS..AXVH71..E,G |
1 | ||
| 16595-F0150 |
A25BFXS..AXVH71..S |
1 | ||
| 16691A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH | ||||
| 16691-F0060 |
A25#,M20CFKS..AXVA70,AXVH71,MXVA71..S |
1 | ||
| 16691-F0050 |
A25#,M20CFKS..AXVA70,AXVH71,MXVA71..E,G |
1 | ||
| 16695A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH | ||||
| 16695-F0060 |
A25#,M20CFKS..AXVA70,AXVH71,MXVA71..S |
1 | ||
| 16695-F0050 |
A25#,M20CFKS..AXVA70,AXVH71,MXVA71..E,G |
1 | ||
| 52081A - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52081-06020 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 52081A - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52081-06020 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 52141H - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-06180 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 52142J - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-06170 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-06050 |
AXVH71 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 53019-06051 |
AXVH71 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 53019-06031 |
AXVH71 |
1 | ||
| 53019-06030 |
ASV71,AXVH71 |
1 | ||
| 53019-06051 |
AXVH71 |
1 | ||
| 53155J - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-06050 |
AXVH71 |
1 | ||
| 53156G - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-06040 |
AXVH71 |
1 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-06060 |
AXVH71 |
2 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-06060 |
AXVH71 |
2 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-06900 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-06900 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-06902 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-06901 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-06901 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53253B - BRACKET, RADIATOR MOUNTING, UPPER | ||||
| 53253-06030 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 53253B - BRACKET, RADIATOR MOUNTING, UPPER | ||||
| 53253-06030 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-06200 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53295J - CLIP, COOL AIR INTAKE DUCT SEAL | ||||
| 90467-C0051 |
AXVA70,AXVH71,MXVA71 (L) |
5 | ||
| 90467-07217 |
AXVA70,AXVH71,MXVA71 |
5 | ||
| 90467-07217 |
AXVA70,AXVH71,MXVA71 (J) |
5 | ||
| 53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER | ||||
| 53607-06030 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-06270 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-06250 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53703D - APRON SUB-ASSY, FRONT FENDER, NO.2 RH | ||||
| 53703-06160 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53704G - APRON SUB-ASSY, FRONT FENDER, NO.2 LH | ||||
| 53704-06170 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-06070 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53715F - APRON, FENDER SIDE, RH | ||||
| 53715-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53716F - APRON, FENDER SIDE, LH | ||||
| 53716-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-06200 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-06190 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-06220 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-06220 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-06100 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-06140 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53785A - GUSSET, FRONT FENDER APRON, UPPER RH | ||||
| 53785-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53786B - GUSSET, FRONT FENDER APRON, UPPER LH | ||||
| 53786-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53821G - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-06150 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53822F - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-06140 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-06140 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-06150 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-06560 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-06430 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
AXVA70,AXVH71,MXVA71 |
6 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-06510 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
AXVA70,AXVH71,MXVA71 |
5 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-06050 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
AXVA70,AXVH71,MXVA71 |
3 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-06060 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
AXVA70,AXVH71,MXVA71 |
3 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-06070 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 85667F - COVER, MOTOR | ||||
| 85667-06040 |
AXVH71 |
1 | ||
| 85667-06030 |
AXVH71 |
1 | ||
| 85667-06040 |
AXVH71 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 88940D - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-06040 |
AXVH71 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 88940-06020 |
AXVH71 |
1 | ||
| 88940-06040 |
AXVH71 |
1 | ||
| Common parts | ||||
| 90109-C0021 | ||||
| 90109-C0061 | ||||
| 90119-C0107 | ||||
| 90119-C0270 | ||||
| 90119-C0509 | ||||
| 90119-C0518 | ||||
| 90119-C0519 | ||||
| 90119-C0520 | ||||
| 90178-C0032 | ||||
| 90178-C0033 | ||||
| 90467-07214 | ||||
| 90467-C0041 | ||||
| 90541-09145 | ||||
| 90541-15033 | ||||
| 90541-C0006 | ||||
