AXVH71L-JEXGBC (2021)
Toyota Camry/Hybrid (China)

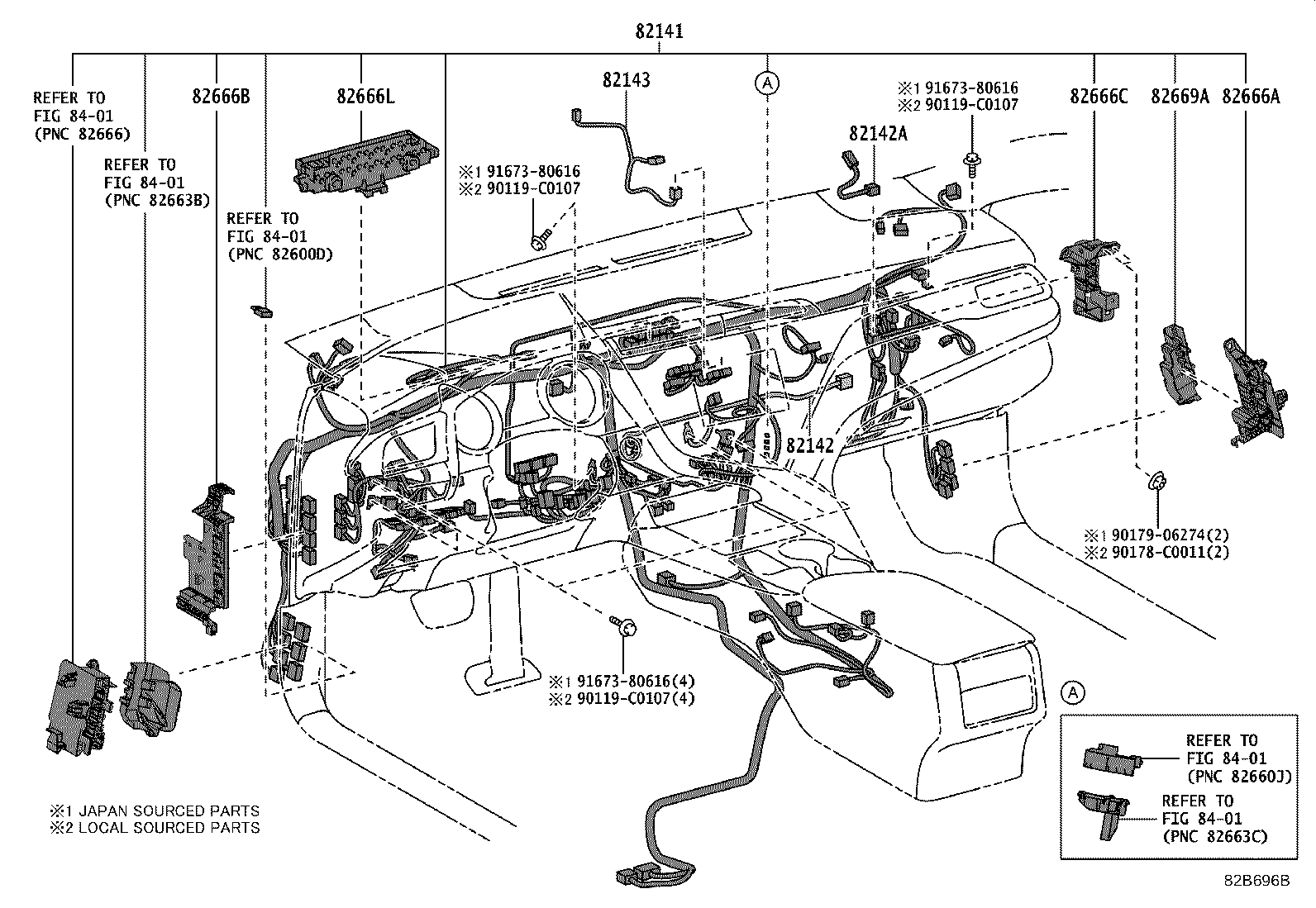

ILLUST NO. 4 OF13(1712- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-0XJ80 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82145-06R13 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82145-06B42 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82145-06Q93 |
AXVH71..E |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-06110 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-06491 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-33580 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82666-33580 |
AXVH71,MXVA71..E |
1 | ||
| 82666-33580 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82666-33580 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-33630 |
AXVH71,MXVA71..E |
1 | ||
| 82666-33630 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82666-33630 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82666-33630 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-33640 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82666-33640 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82666-33640 |
AXVH71,MXVA71..E |
1 | ||
| 82666-33640 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-33590 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82666-33590 |
AXVH71,MXVA71..E |
1 | ||
| 82666-33590 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82666-33590 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82663-33250 |
AXVH71,MXVA71..E |
1 | ||
| 82663-33250 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82663-33250 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82663-33250 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90178-C0011 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF13(1712- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-06R71 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82151-06R81 |
AXVA70,AXVH71..G UPGRADE PACKAGE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-06Q72 |
AXVH71..E |
1 | ||
| 82152-06Q72 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82152-06Q92 |
AXVA70,AXVH71..G UPGRADE PACKAGE |
1 | ||
| 82152-06W20 |
AXVA70,AXVH71,MXVA71..G,S |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-06741 |
AXVH71,MXVA71..E |
1 | ||
| 82153-06741 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82153-06741 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82153-06A01 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-06731 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82154-06731 |
AXVH71,MXVA71..E |
1 | ||
| 82154-06731 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82154-06891 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 91673-80616 | ||||
ILLUST NO. 6 OF13(1712- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0XN92 |
AXVH71..E |
1 | ||
| 82161-0XP92 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82199-06611 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82161-0XP72 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-06260 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-06051 |
AXVH71 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-06080 |
AXVH71..G UPGRADE PACKAGE |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-06040 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-06U01 |
AXVH71,MXVA71..E |
1 | ||
| 82171-06U61 |
AXVA70,AXVH71..G |
1 | ||
| 82171-06Z80 |
AXVA70,AXVH71..S |
1 | ||
| 82171-0X450 |
AXVH71..G VALUE PACKAGE |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-06070 |
AXVA70,AXVH71..G |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-06X02 |
AXVH71..G,S |
1 | ||
| 82181-06Z50 |
AXVH71..G VALUE PACKAGE |
1 | ||
| 82181-06V72 |
AXVH71..E |
1 | ||
| 82181-06X13 |
AXVH71..G UPGRADE PACKAGE |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-06590 |
AXVH71,MXVA71..G VALUE PACKAGE |
1 | ||
| 82182-06590 |
AXVA70,AXVH71,MXVA71..G,S |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-33650 |
AXVH71,MXVA71..E |
1 | ||
| 82666-33650 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82666-33650 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82666-33650 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-33660 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82666-33660 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82666-33660 |
AXVH71,MXVA71..E |
1 | ||
| 82666-33660 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-33500 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-06071 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-06081 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| Common parts | ||||
| 89348-50050 | ||||
| 90105-C0107 | ||||
| 90119-06A06 | ||||
| 90119-C0107 | ||||
| 90119-C0307 | ||||
| 90178-C0034 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 7 OF13(1712- )AXVH71
HIGH TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-06020 |
AXVH71 |
1 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-33170 |
AXVH71 |
3 | ||
| Common parts | ||||
| 90119-C0235 | ||||
| 90178-06026 | ||||
| 90178-C0076 | ||||
ILLUST NO. 8 OF13(1712- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-06010 |
AXVA70,AXVH71..G UPGRADE PACKAGE |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-06A00 |
AXVA70,AXVH71..G UPGRADE PACKAGE |
1 | ||
| 82191-06750 |
AXVA70,AXVH71,MXVA71..G,S |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-06670 |
AXVA70,AXVH71,MXVA71..G,S |
1 | ||
| 82192-06790 |
AXVA70,AXVH71..G UPGRADE PACKAGE |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-06150 |
AXVA70,AXVH71,MXVA71..G,S |
1 | ||
| 8219A-06390 |
AXVA70,AXVH71..G UPGRADE PACKAGE |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-06340 |
AXVA70,AXVH71..G UPGRADE PACKAGE |
1 | ||
| 8219B-06310 |
AXVA70,AXVH71,MXVA71..G,S |
1 | ||
ILLUST NO. 1 OF13(1712- )AXVH71
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82090A - WIRE ASSY, EXTENSION | ||||
| 82090-06040 |
AXVH71 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-06K23 |
AXVH71..E |
1 | ||
| 82116-06V53 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82116-06270 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82115-06G53 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-06231 |
AXVH71,MXVA71..G VALUE PACKAGE |
1 | ||
| 82114-06231 |
AXVA70,AXVH71,MXVA71..G |
1 | ||
| 82114-06291 |
AXVH71..G UPGRADE PACKAGE |
1 | ||
| 82114-06240 |
AXVA70,AXVH71,MXVA71..S |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-06020 |
AXVH71 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-33020 |
AXVH71 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E30 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82815-33E30 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82815-33E30 |
AXVH71..E |
1 | ||
| 82815-33E30 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E70 |
AXVH71..E |
1 | ||
| 82815-33E70 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82815-33E70 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82815-33E70 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-33M60 |
AXVH71..E |
1 | ||
| 82815-33M60 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82815-33M60 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82815-33M60 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-33K50 |
AXVH71,MXVA71..E |
1 | ||
| 82815-33K50 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82815-33K50 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82815-33K50 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-33U80 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82817-33U80 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82817-33U80 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82817-33U80 |
AXVH71..E |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33V00 |
AXVH71..E |
1 | ||
| 82817-33V00 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82817-33V00 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82817-33V00 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-3T210 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82817-3T210 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82817-3T210 |
AXVH71..E |
1 | ||
| 82817-3T210 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33Y20 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82817-33Y20 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82817-33Y20 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82817-33Y20 |
AXVH71,MXVA71..E |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Y30 |
AXVA70,AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82817-33Y30 |
AXVA70,AXVH71,MXVA71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82817-33Y30 |
AXVH71,MXVA71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82817-33Y30 |
AXVH71,MXVA71..E |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-33470 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82821-33470 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| 82821-33470 |
AXVH71..E |
1 | ||
| 82821-33470 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-33620 |
AXVH71..G,S AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER |
1 | ||
| 82821-33620 |
AXVH71..E |
1 | ||
| 82821-33620 |
AXVH71..G VALUE PACKAGE&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER |
1 | ||
| 82821-33620 |
AXVH71..G UPGRADE PACKAGE&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
AXVH71 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-C0107 | ||||
| 90119-C0132 | ||||
| 90119-C0155 | ||||
| 90119-C0235 | ||||
| 90119-C0307 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 2 OF13(1712- )AXVH71
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-06M01 |
AXVH71 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-33270 |
AXVH71 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0E060 |
AXVA70,AXVH71 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-0E030 |
AXVA70,AXVH71 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-33141 |
AXVH71 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-33160 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-33460 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-33060 |
AXVH71 |
1 | ||
| Common parts | ||||
| 90119-06A29 | ||||
| 90119-C0098 | ||||
| 90119-C0132 | ||||
| 90119-C0155 | ||||
| 90178-C0032 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF13(1712- )AXVH71
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-33C80 |
AXVH71 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33E80 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-0EE20 |
AXVH71 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-0EE30 |
AXVH71 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-33F80 |
AXVH71 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-33F90 |
AXVH71 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-33G00 |
AXVH71 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-33G60 |
AXVH71 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-33G90 |
AXVH71 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-0ED50 |
AXVH71 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-33J40 |
AXVH71 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33J90 |
AXVH71 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33M20 |
AXVH71 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-33M70 |
AXVH71 |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-33M80 |
AXVH71 |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-0ED80 |
AXVH71 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33X20 |
AXVH71 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-33X40 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-0EL70 |
AXVH71 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-0EL80 |
AXVH71 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-33R40 |
AXVH71 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33R50 |
AXVH71 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-33R60 |
AXVH71 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33S50 |
AXVA70,AXVH71 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-0EK80 |
AXVA70,AXVH71 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-33S20 |
AXVH71 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-33T00 |
AXVH71 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33X70 |
AXVH71 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-3T150 |
AXVH71 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-0EK90 |
AXVA70,AXVH71 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-3T230 |
AXVH71 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0EL20 |
AXVH71 |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-3T220 |
AXVH71 |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-0EM70 |
AXVA70,AXVH71 |
1 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| 90119-C0155 | ||||
| 90119-C0235 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91673-80620 | ||||
ILLUST NO. 9 OF13(1712- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-06750 | ||||
| 82715-06760 | ||||
| 82715-06790 | ||||
| 82715-06P20 | ||||
| 82715-06X40 | ||||
| 82715-06X80 | ||||
| 82715-06Y60 | ||||
| 82715-06Y80 | ||||
| 82715-06Y90 | ||||
| 82715-06Z20 | ||||
| 82715-06Z70 | ||||
| 82715-0EK20 | ||||
| 82715-0RJ50 | ||||
| 82715-0X010 | ||||
| 82715-0X130 | ||||
| 82715-0X140 | ||||
| 82715-0X180 | ||||
| 82715-0X190 | ||||
| 82715-0X200 | ||||
| 82715-0X220 | ||||
| 82715-0X260 | ||||
| 82715-0X280 | ||||
| 82715-0X300 | ||||
| 82715-0X310 | ||||
| 82715-0X330 | ||||
| 82715-0X360 | ||||
| 82715-0X380 | ||||
| 82715-0XB80 | ||||
| 82715-0XC10 | ||||
| 82715-0XD30 | ||||
| 82715-0XG10 | ||||
| 82715-33L00 | ||||
| 82715-33N10 | ||||
| 90119-06951 | ||||
| 90119-06A12 | ||||
| 90119-C0074 | ||||
| 90119-C0096 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 90119-C0132 | ||||
| 90178-C0011 | ||||
| 90179-06274 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1703 | ||||
ILLUST NO.10 OF13(1712- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-33550 | ||||
| 82715-06M90 | ||||
| 82715-06N10 | ||||
| 82715-06N20 | ||||
| 82715-06X50 | ||||
| 82715-0RC90 | ||||
| 82715-0RD00 | ||||
| 82715-0RD10 | ||||
| 82715-0RD20 | ||||
| 82715-0RD40 | ||||
| 82715-0RJ40 | ||||
| 82715-0RJ60 | ||||
| 82715-0X300 | ||||
| 82715-0XC20 | ||||
| 82715-12T40 | ||||
| 82715-33L40 | ||||
| 82715-33V00 | ||||
| 82715-F4560 | ||||
| 82715-F4570 | ||||
| 90119-06A12 | ||||
| 90119-C0096 | ||||
| 90119-C0098 | ||||
| 90119-C0107 | ||||
| 90119-C0132 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO.12 OF13(1712- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10794 | ||||
| 90980-10860 | ||||
| 90980-11148 | ||||
| 90980-11246 | ||||
| 90980-11399 | ||||
| 90980-12380 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12728 | ||||
| 90980-12A92 | ||||
| 90980-12D00 | ||||
ILLUST NO.13 OF13(1712- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
| 90980-12D25 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
