AXVH71L-JEXEBC (2017)

Toyota Camry/Hybrid (China)

Production Dec 2017 - Mar 2021
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1712-1903)

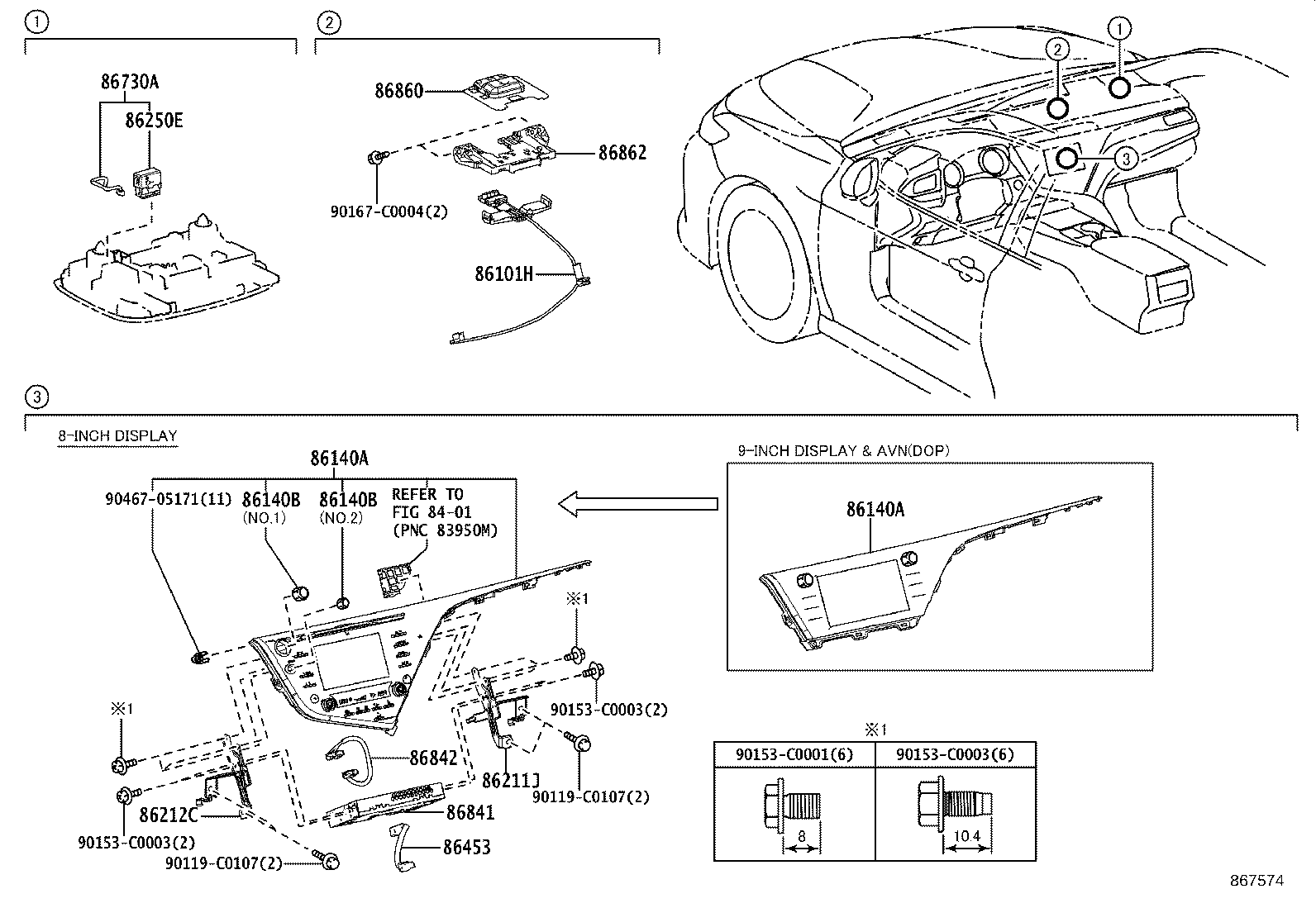

Click highlighted areas on diagram

diagram 8401 86101H 86140A 86140A 86140B 86140B 86140B 86140B 86211J 86211J 86212C 86212C 86250E 86453 86730A 86841 86842 86860 86862 90119C0107 90119C0107 90119C0107 90119C0107 90153C0001 90153C0003 90153C0003 90153C0003 90167C0004 9046705171 9046705171
Part # Description Qty Price
86101H - CORD SUB-ASSY, ANTENNA
86101-06D30

AXVA70,AXVH71,MXVA71..G,S

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86100-YY210

AXVA70,AXVH71,MXVA71..G,S

PIONEER,AUDIO-9-INCH DISPLAY & AVN(DOP) & 6SPEAKER

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86100-YY210

AXVA70,AXVH71,MXVA71..G,S

PIONEER,AUDIO-9-INCH DISPLAY & AVN(DOP) & 6SPEAKER

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-06320

AXVH71,MXVA71..E

 1
86211-06270

AXVA70,AXVH71,MXVA71..G,S

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-06320

AXVH71,MXVA71..E

 1
86211-06270

AXVA70,AXVH71,MXVA71..G,S

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-06270

AXVA70,AXVH71,MXVA71..G,S

 1
86212-06320

AXVH71,MXVA71..E

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-06270

AXVA70,AXVH71,MXVA71..G,S

 1
86212-06320

AXVH71,MXVA71..E

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52030

AXVA70,AXVH71,MXVA71..G,S

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-06060

AXVA70,AXVH71,MXVA71..G,S

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-06120

AXVA70,AXVH71,MXVA71..G,S

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020

AXVA70,AXVH71,MXVA71..G,S

 1
Common parts
90119-C0107
90153-C0001
90153-C0003
90167-C0004
90467-05171
Linked diagrams
8401

(1903-2103)

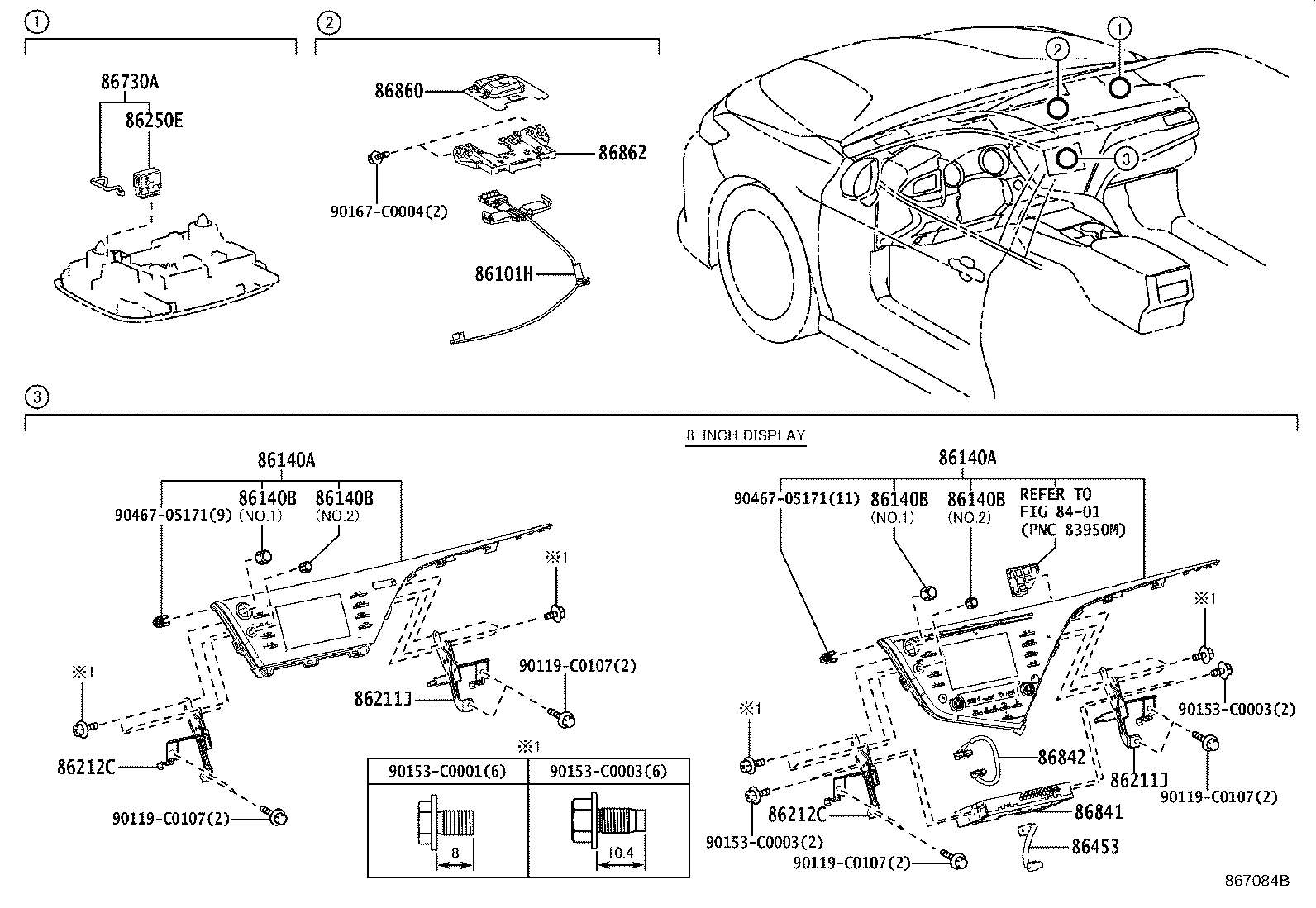

Click highlighted areas on diagram

diagram 8401 86101H 86140A 86140A 86140B 86140B 86211J 86212C 86250E 86453 86730A 86841 86842 86860 86862 90119C0107 90119C0107 90153C0001 90153C0003 90153C0003 90153C0003 90167C0004 9046705171
Part # Description Qty Price
86101H - CORD SUB-ASSY, ANTENNA
86101-06D30

AXVA70,AXVH71,MXVA71..G,S

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86100-YY210

AXVA70,AXVH71,MXVA71..G,S

PIONEER,AUDIO-9-INCH DISPLAY & AVN(DOP) & 6SPEAKER

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86100-YY210

AXVA70,AXVH71,MXVA71..G,S

PIONEER,AUDIO-9-INCH DISPLAY & AVN(DOP) & 6SPEAKER

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-06320

AXVH71,MXVA71..E

 1
86211-06270

AXVA70,AXVH71,MXVA71..G,S

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-06270

AXVA70,AXVH71,MXVA71..G,S

 1
86212-06320

AXVH71,MXVA71..E

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52030

AXVA70,AXVH71,MXVA71..G,S

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-06060

AXVA70,AXVH71,MXVA71..G,S

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-06120

AXVA70,AXVH71,MXVA71..G,S

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020

AXVA70,AXVH71,MXVA71..G,S

 1
Common parts
90119-C0107
90153-C0001
90153-C0003
90167-C0004
90467-05171
Linked diagrams
8401
