AXVA70L-JEZSBC (2021)

Toyota Camry/Hybrid (China)

Production Mar 2021 - Sep 9999
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

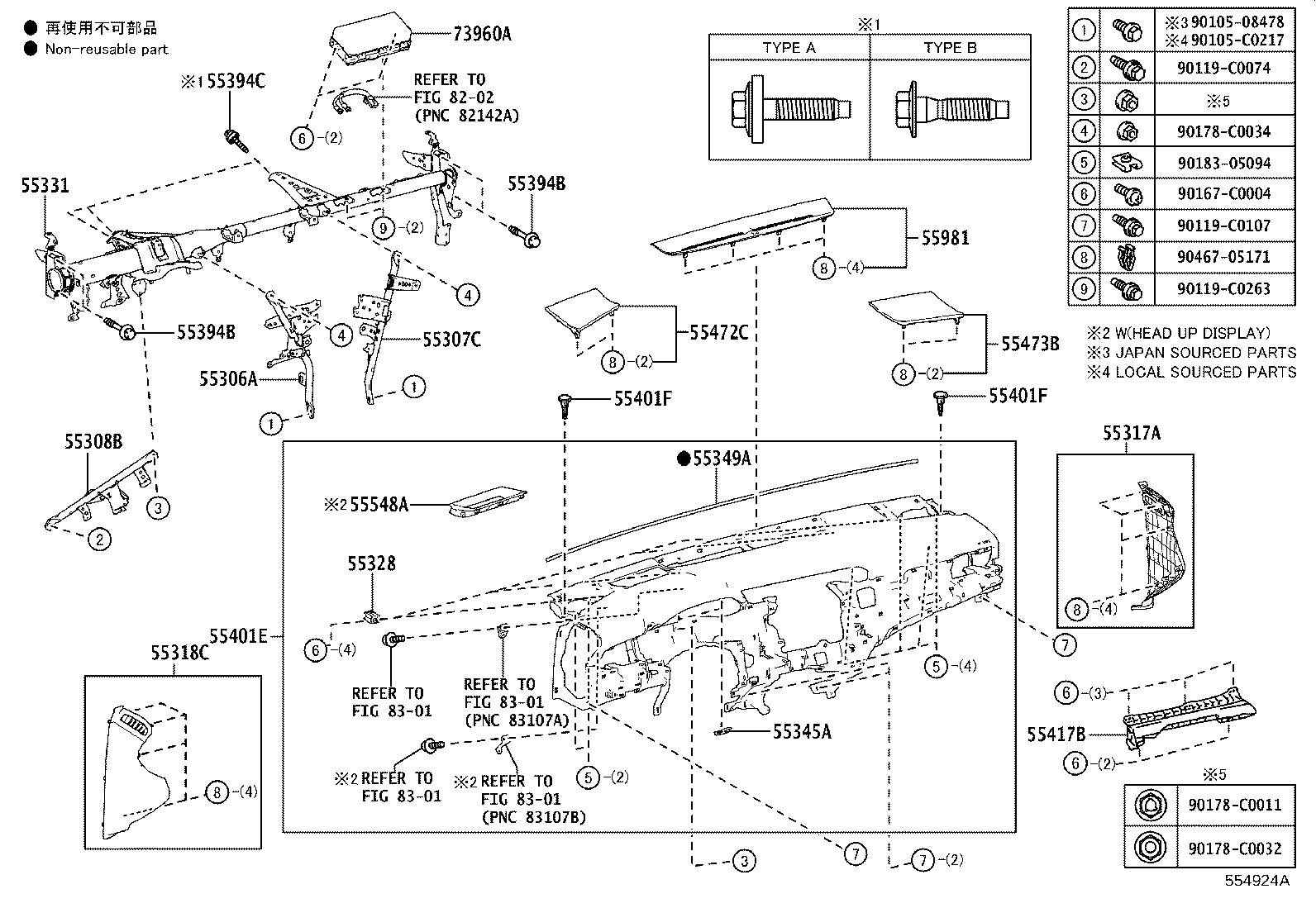

ILLUST NO. 1 OF 2(2103- )

Click highlighted areas on diagram

diagram 55306A 55307C 55308B 55317A 55318C 55328 55331 55345A 55349A 55394B 55394B 55394C 55401E 55401F 55401F 55417B 55472C 55473B 55548A 55981 73960A 8202 8301 8301 8301 8301 9010508478 90105C0217 90119C0074 90119C0107 90119C0263 90167C0004 90178C0011 90178C0032 90178C0034 9018305094 9046705171
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-06170

AXVA70,AXVH71,MXVA71

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-06120

AXVA70,AXVH71,MXVA71

 1
55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55308-06080

AXVA70,AXVH71,MXVA71

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-06340C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55317-06340C0

AXVA70,AXVH71,MXVA71..E,G

BLACK,TRIM2#,4#

 1
55318C - PANEL, INSTRUMENT SIDE, LH
55318-06260C0

AXVA70,AXVH71,MXVA71..E,G

BLACK,TRIM2#,4#

 1
55318-06260C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-0E100

AXVA70,AXVH71,MXVA71

 4
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-06400

AXVA70,AXVH71,MXVA71

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-12060

AXVA70,AXVH71,MXVA71

 2
55349A - CUSHION, INSTRUMENT PANEL
55349-06230

AXVA70,AXVH71,MXVA71

 1
55394B - BOLT, INSTRUMENT PANEL
90105-C0318

AXVA70,AXVH71,MXVA71

(L)

 4
90105-08473

AXVA70,AXVH71,MXVA71

(J)

 4
55394B - BOLT, INSTRUMENT PANEL
90105-C0318

AXVA70,AXVH71,MXVA71

(L)

 4
90105-08473

AXVA70,AXVH71,MXVA71

(J)

 4
55394C - BOLT, INSTRUMENT PANEL
90119-08D16

AXVA70,AXVH71,MXVA71

(J),TYPE A:REF ILL.

 3
90105-08526

AXVA70,AXVH71,MXVA71

(J),TYPE B:REF ILL.

 3
90105-C0407

AXVA70,AXVH71,MXVA71

(L),TYPE B:REF ILL.

 3
90119-C0223

AXVA70,AXVH71,MXVA71

(L),TYPE A:REF ILL.

 3
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-06301C1

AXVA70,AXVH71,MXVA71..S

SOFT BLACK,TRIM2#,3#

 1
55401F - CLIP(FOR SAFETY PAD)
52161-16010

AXVA70,AXVH71,MXVA71

(J)

 2
52161-02040

AXVA70,AXVH71,MXVA71

(L)

 2
55401F - CLIP(FOR SAFETY PAD)
52161-16010

AXVA70,AXVH71,MXVA71

(J)

 2
52161-02040

AXVA70,AXVH71,MXVA71

(L)

 2
55417B - RETAINER, RADIO TUNER FINISH
55417-06030

AXVA70,AXVH71,MXVA71

 1
55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1
55472-06150C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2
55473-06150C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-06100C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-06250C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-06240

AXVA70,AXVH71,MXVA71

 1
Common parts
90105-08478
90105-C0217
90119-C0074
90119-C0107
90119-C0263
90167-C0004
90178-C0011
90178-C0032
90178-C0034
90183-05094
90467-05171
Linked diagrams
8202
8301

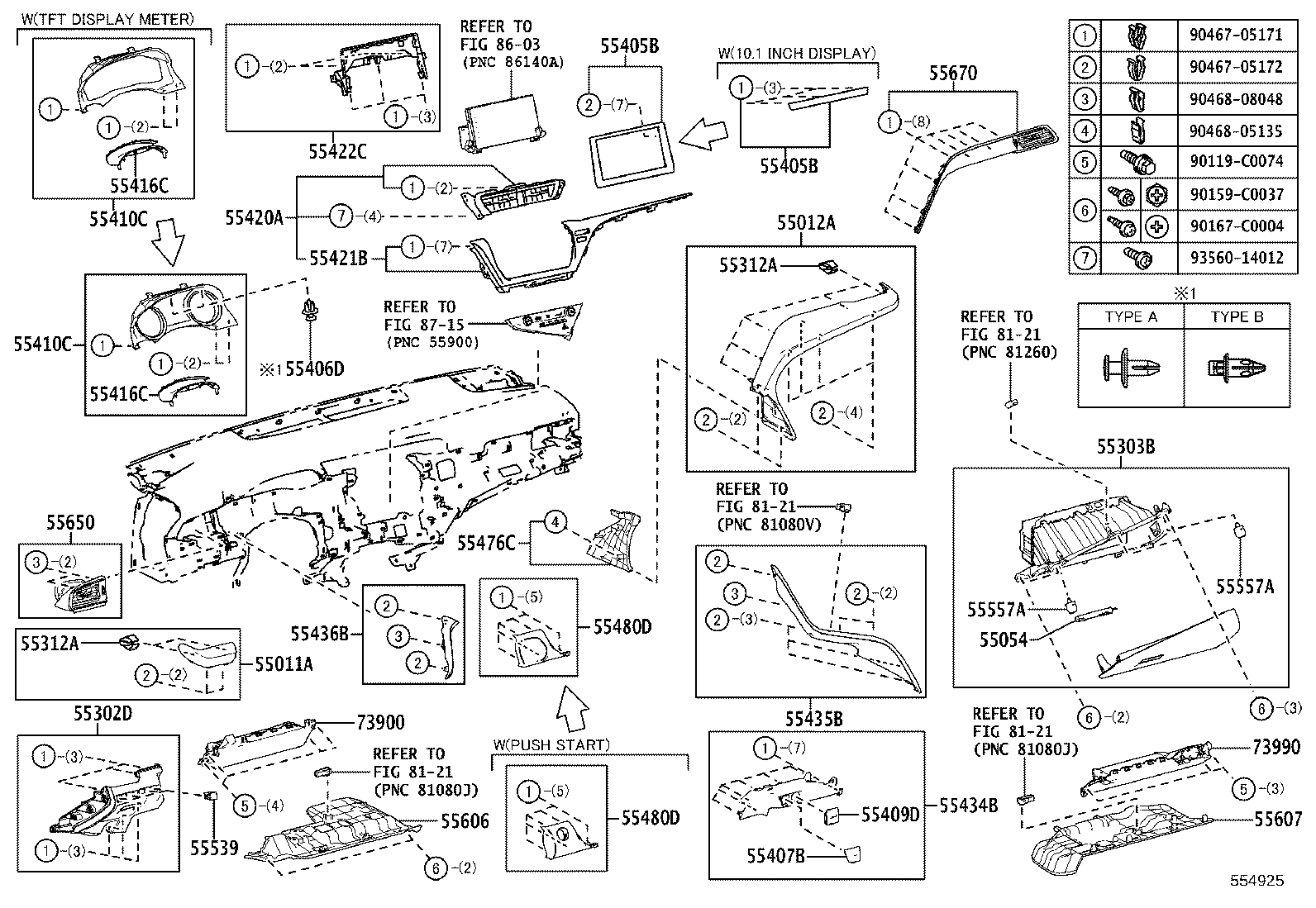

ILLUST NO. 2 OF 2(2103- )

Click highlighted areas on diagram

diagram 55011A 55012A 55054 55302D 55303B 55312A 55312A 55405B 55405B 55406D 55407B 55409D 55410C 55410C 55416C 55416C 55420A 55421B 55422C 55434B 55435B 55436B 55476C 55480D 55480D 55539 55557A 55557A 55606 55607 55650 55670 73900 73990 8121 8121 8121 8121 8603 8715 90119C0074 90159C0037 90167C0004 9046705171 9046705172 9046805135 9046808048 9356014012
Part # Description Qty Price
55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
55011-06080C1

AXVA70,AXVH71,MXVA71..E,G

BLACK/CHOCOLATE BROWN,TRIM2#

 1
55011-06080D2

AXVA70,AXVH71,MXVA71..S

SENSUAL RED/GRAY,TRIM3#

 1
55011-06080C2

AXVA70,AXVH71,MXVA71..S

BLACK/GRAY,TRIM2#

 1
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-06140C1

AXVA70,AXVH71,MXVA71..E,G

BLACK/CHOCOLATE BROWN,TRIM2#

 1
55012-06140D2

AXVA70,AXVH71,MXVA71..S

SENSUAL RED/GRAY,TRIM3#

 1
55012-06140C2

AXVA70,AXVH71,MXVA71..S

BLACK/GRAY,TRIM2#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-06030

AXVA70,AXVH71,MXVA71

 1
55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1
55302-06220C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-06560C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55312A - CLIP, INSTRUMENT PANEL
90467-13082A0

AXVA70,AXVH71,MXVA71

MELLOW WHITE

 7
55312A - CLIP, INSTRUMENT PANEL
90467-13082A0

AXVA70,AXVH71,MXVA71

MELLOW WHITE

 7
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-06230

AXVA70,AXVH71,MXVA71..G,S

AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-06230

AXVA70,AXVH71,MXVA71..G,S

AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER

 1
55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)
90467-C0014C1

AXVA70,AXVH71,MXVA71

BLACK,TYPE A:REFER ILLUST.

 2
90467-07071C1

AXVA70,AXVH71,MXVA71

BLACK,TYPE B:REFER ILLUST.

 2
55407B - BASE SUB-ASSY, SWITCH HOLE
55407-06080C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55409D - BASE SUB-ASSY, CIGAR LIGHTER
55409-06050C1

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-06290

AXVA70,AXVH71..G,S

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-06290

AXVA70,AXVH71..G,S

 1
55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL
55416-06150

AXVA70,AXVH71,MXVA71

 1
55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL
55416-06150

AXVA70,AXVH71,MXVA71

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-06070

AXVA70,AXVH71,MXVA71..G,S

AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER

 1
55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER
55421-06020

AXVA70,AXVH71,MXVA71..G,S

AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-06180C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55435B - CLUSTER, METER HOOD, NO.1
55435-06260

AXVA70,AXVH71,MXVA71

 1
55436B - CLUSTER, METER HOOD, NO.2
55436-06230

AXVA70,AXVH71,MXVA71

 1
55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE
55476-06030C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-06420C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-06420C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06120

AXVA70,AXVH71,MXVA71

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-47050

AXVA70,AXVH71,MXVA71

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-47050

AXVA70,AXVH71,MXVA71

 2
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-06090

AXVA70,AXVH71,MXVA71

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-06310

AXVA70,AXVH71,MXVA71

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-06490

AXVA70,AXVH71,MXVA71

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-06A30

AXVA70,AXVH71,MXVA71..S

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-06120C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2
73990-06070C0

AXVA70,AXVH71,MXVA71..S

BLACK,TRIM2#,3#

 1
Common parts
90119-C0074
90159-C0037
90167-C0004
90467-05171
90467-05172
90468-05135
90468-08048
93560-14012
Linked diagrams
8121
8603
8715
