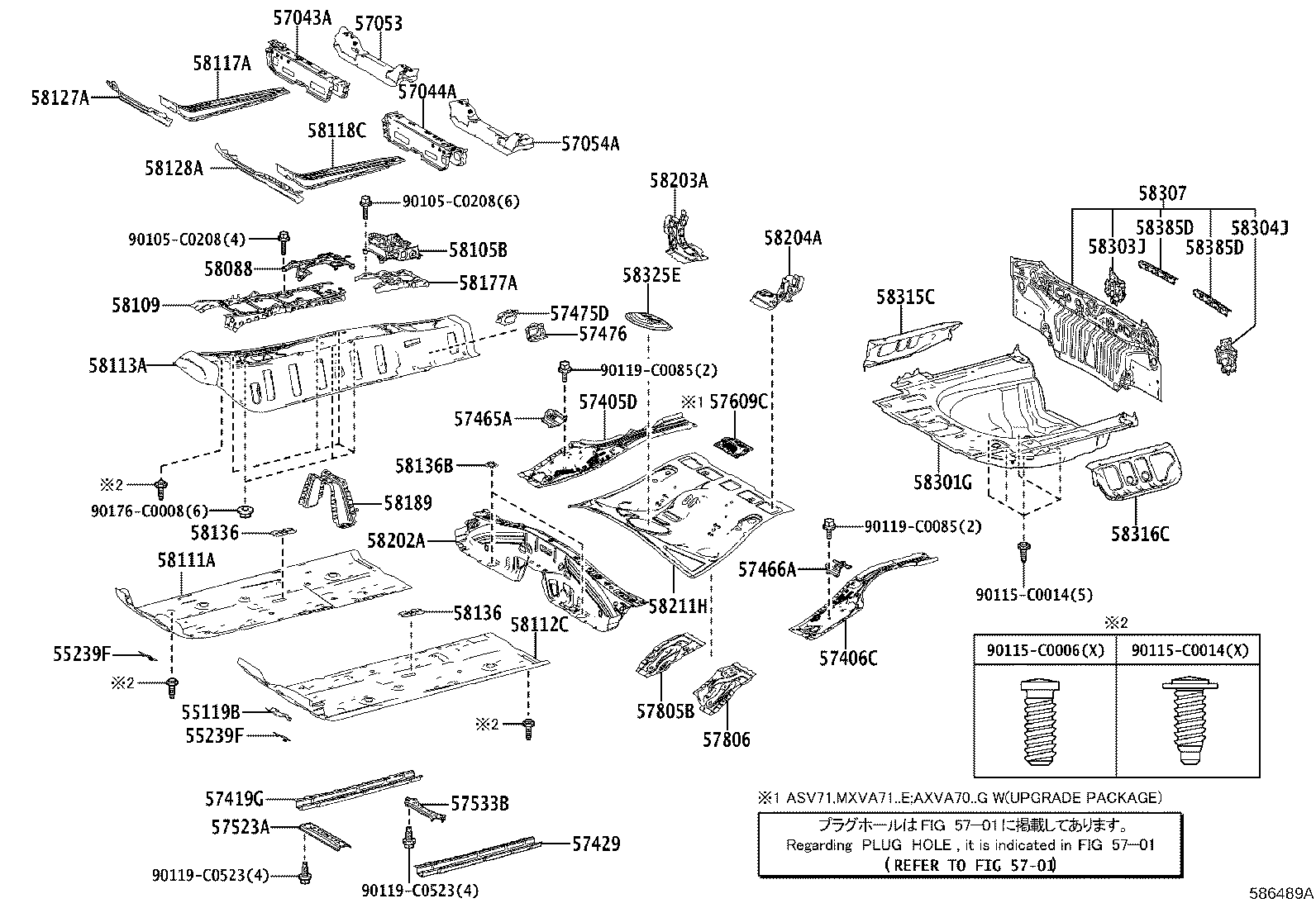

AXVA70L-JEZSBC (2017)
Toyota Camry/Hybrid (China)
(1712- )ASV71,AXVA70,MXVA71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55119B - EXTENSION, DASH PANEL, LH | ||||
| 55119-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 55239F - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-06060 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 55239F - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-06060 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-06070 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-06070 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-06060 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-06110 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57405D - RAIL SUB-ASSY, FLOOR SIDE, CENTER RH | ||||
| 57405-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57406C - RAIL SUB-ASSY, FLOOR SIDE, CENTER LH | ||||
| 57406-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57419G - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH | ||||
| 57419-06110 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57429 - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | ||||
| 57419-06110 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57465-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57466A - GUSSET, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57466-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-06090 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-06080 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57523A - BRACE, CENTER FLOOR CROSSMEMBER | ||||
| 57523-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-06100 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-06050 |
AXVA70,MXVA71 |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-06040 |
AXVA70,MXVA71 |
1 | ||
| 58088 - BRACKET SUB-ASSY, FLOOR SHIFT LINK | ||||
| 58088-06050 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-06070 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-06150 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-06030 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-06030 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58117-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH | ||||
| 58127-33030 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58127-06080 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58128A - REINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH | ||||
| 58128-06081 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58128-33010 |
ASV71,AXVA70,AXVH71,MXVA71 |
1 | ||
| 58128-06080 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-06110 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-06110 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 58136B - COVER, CENTER FLOOR HOLE | ||||
| 58136-06110 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-06020 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET | ||||
| 58189-06150 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT | ||||
| 58202-06110 |
AXVA70,MXVA71 |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-06030 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-06060 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-06260 |
ASV71,AXVA70 |
1 | ||
| 58211-06261 |
AXVA70,MXVA71 |
1 | ||
| 58301G - PAN SUB-ASSY, REAR FLOOR | ||||
| 58301-06902 |
AXVA70,MXVA71 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 58301-06902 |
ASV71,AXVA70 |
1 | ||
| 58301-06902 |
AXVA70,MXVA71 |
1 | ||
| 58301-06906 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58303J - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH | ||||
| 58303-06050 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58304J - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-06060 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-06230 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-06030 |
AXVA70,MXVA71 |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-06050 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-06110 |
AXVA70,MXVA71 |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-06160 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-06160 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| Common parts | ||||
| 90105-C0208 | ||||
| 90115-C0006 | ||||
| 90115-C0014 | ||||
| 90119-C0085 | ||||
| 90119-C0523 | ||||
| 90176-C0008 | ||||
| Linked diagrams | ||||
| 5701 | ||||
