AXVA70L-JEZSBC (2017)
Toyota Camry/Hybrid (China)

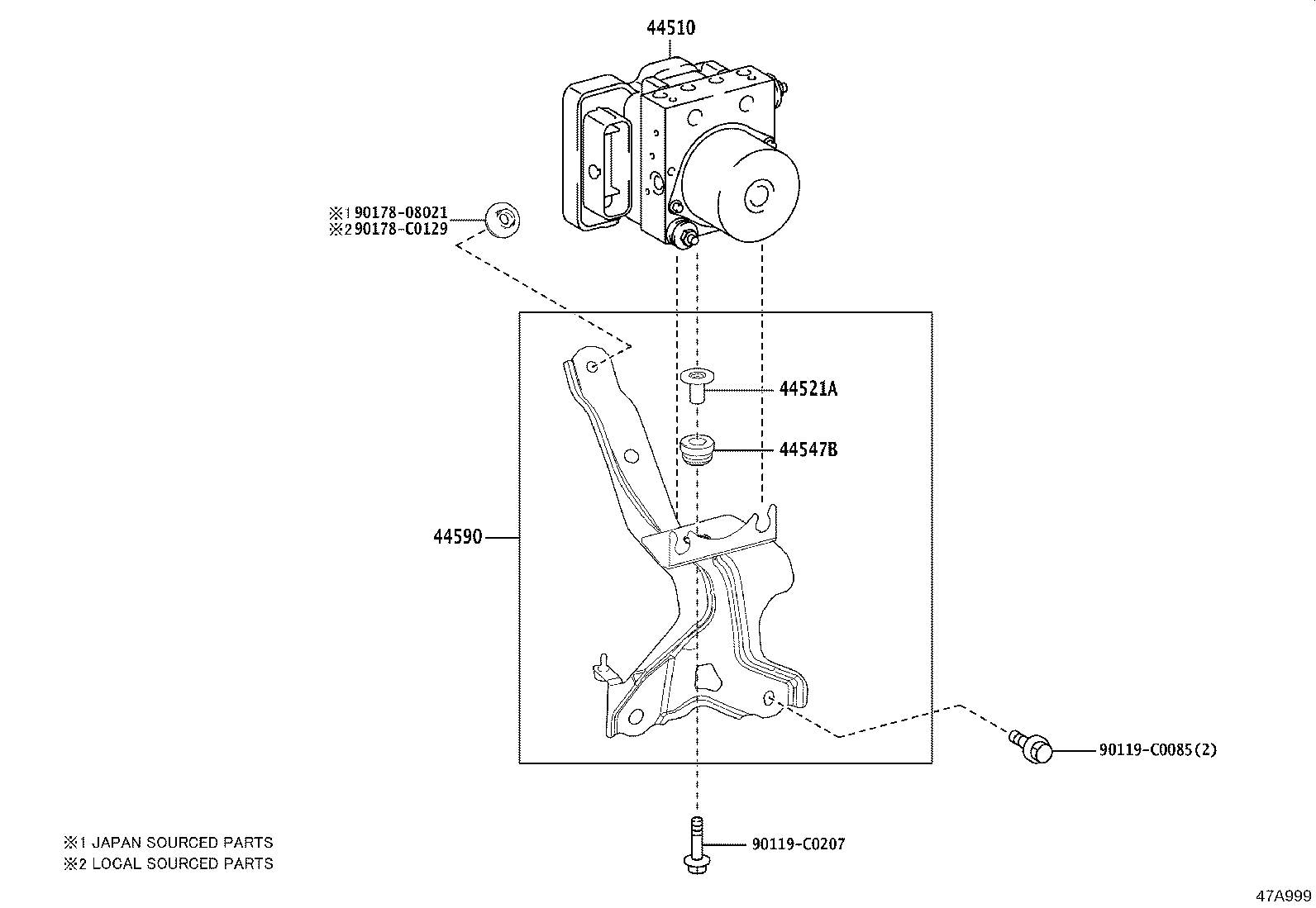

ILLUST NO. 2 OF 2(1712- )ASV71,AXVA70,MXVA71
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-06461 |
AXVA70,MXVA71..G,S |
1 | ||
| 44050-06460 |
AXVA70 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12060 |
AXVA70,MXVA71 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-10080 |
AXVA70,MXVA71 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-06350 |
AXVA70,MXVA71 |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90119-C0207 | ||||
| 90178-08021 | ||||
| 90178-C0129 | ||||

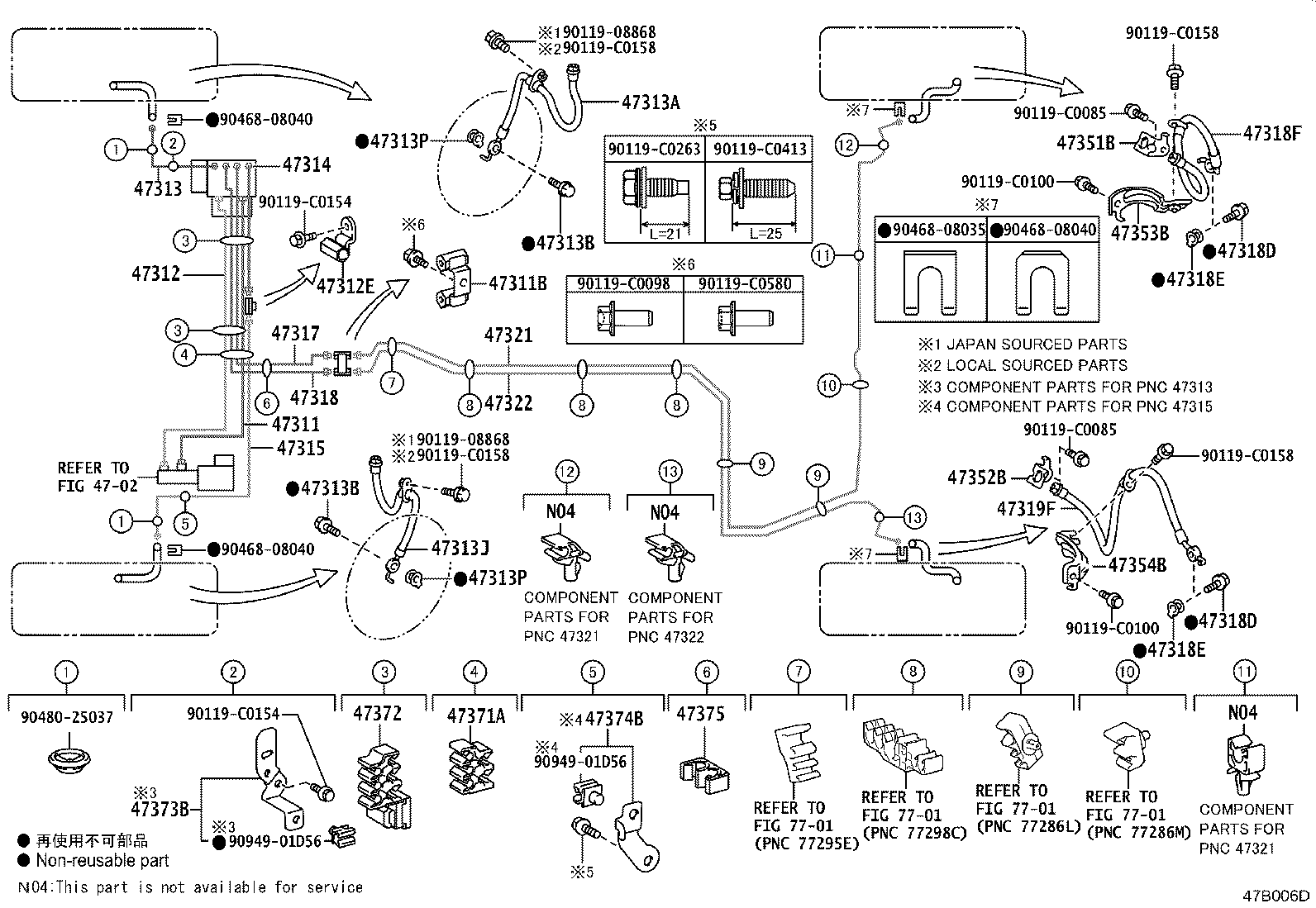

ILLUST NO. 1 OF 2(1712- )ASV71,AXVA70,MXVA71
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-06680 |
AXVA70,MXVA71 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
ASV71,AXVA70,AXVH71 |
1 | ||
| 90412-C0004 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-06520 |
AXVA70,MXVA71 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0002 |
AXVA70,AXVH71,MXVA71 (L) |
1 | ||
| 90412-10272 |
AXVA70,AXVH71,MXVA71 (J) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-06510 |
ASV71,AXVA70,AXVH71 |
1 | ||
| 47313-06511 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2076 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
AXVA70,AXVH71,MXVA71 (L) |
2 | ||
| 90401-10058 |
AXVA70,AXVH71,MXVA71 (J) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
AXVA70,AXVH71,MXVA71 (L) |
2 | ||
| 90401-10058 |
AXVA70,AXVH71,MXVA71 (J) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2077 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-06461 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47314-06460 |
ASV71,AXVA70,AXVH71 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-06480 |
ASV71,AXVA70,AXVH71 |
1 | ||
| 47315-06481 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-06581 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47317-06580 |
ASV71,AXVA70,AXVH71 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-06140 |
ASV71,AXVA70,AXVH71 |
1 | ||
| 47318-06141 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ASV71,AXVA70,AXVH71 |
2 | ||
| 90401-10058 |
AXVA70,AXVH71,MXVA71 (J) |
2 | ||
| 90401-C0001 |
AXVA70,AXVH71,MXVA71 (L) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ASV71,AXVA70,AXVH71 |
2 | ||
| 90401-10058 |
AXVA70,AXVH71,MXVA71 (J) |
2 | ||
| 90401-C0001 |
AXVA70,AXVH71,MXVA71 (L) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXVA70,AXVH71,MXVA71 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2079 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2080 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-06301 |
AXVA70,MXVA71 |
1 | ||
| 47321-06300 |
ASV71,AXVA70 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-06300 |
ASV71,AXVA70 |
1 | ||
| 47322-06301 |
AXVA70,MXVA71 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-06070 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-06070 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-06060 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-06060 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01E40 |
AXVA70,MXVA71 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01E31 |
AXVA70,MXVA71 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-33340 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-33350 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00904 |
AXVA70,AXVH71,MXVA71 |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-C0085 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0154 | ||||
| 90119-C0158 | ||||
| 90119-C0263 | ||||
| 90119-C0413 | ||||
| 90119-C0580 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90480-25037 | ||||
| 90949-01D56 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
