AXVA70L-JEZSBC (2017)

Toyota Camry/Hybrid (China)

Production Dec 2017 - Mar 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )A25AFKS

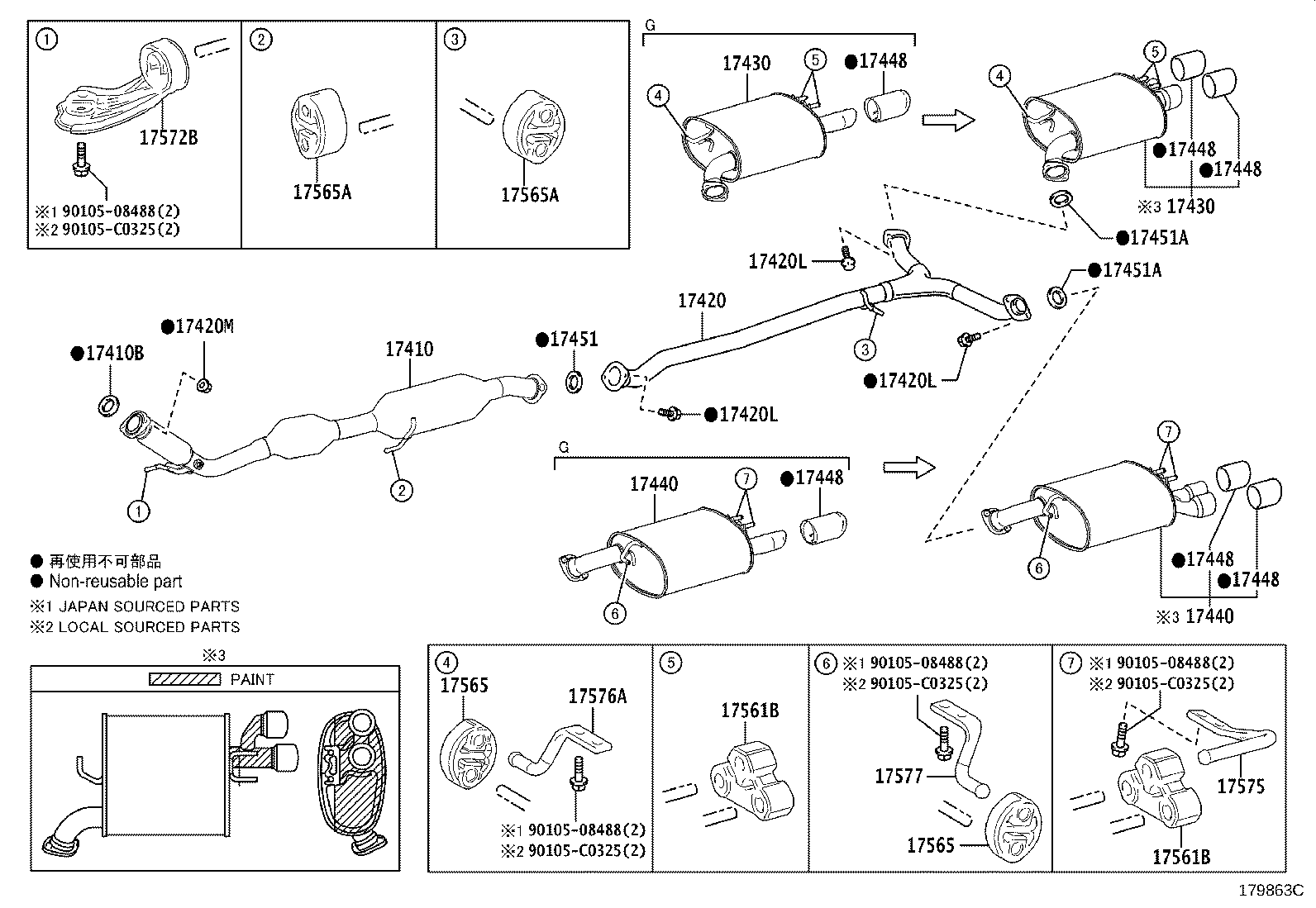

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420L 17420L 17420L 17420M 17430 17430 17440 17440 17448 17448 17448 17448 17448 17448 17451 17451A 17451A 17561B 17561B 17565 17565 17565A 17565A 17572B 17575 17576A 17577 9010508488 9010508488 9010508488 9010508488 90105C0325 90105C0325 90105C0325 90105C0325
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-F0050

A25#..AXVA70,AXVH71

 1
17410-F0051

A25#..AXVA70,AXVH71

 1
17410B - GASKET, EXHAUST PIPE
90917-C6003

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-F0120

A25AFKS,M20CFKS..AXVA70,MXVA71

 1
17420L - BOLT, FLANGE(FOR EXHAUST PIPE)
90105-10585

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

(J)

 2
90105-C0326

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

(L)

 2
17420L - BOLT, FLANGE(FOR EXHAUST PIPE)
90105-10585

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

(J)

 2
90105-C0326

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

(L)

 2
17420L - BOLT, FLANGE(FOR EXHAUST PIPE)
90105-10585

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

(J)

 2
90105-C0326

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

(L)

 2
17420M - NUT, LOCK(FOR EXHAUST PIPE)
90177-10005

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0V470

A25AFKS,M20CFKS,6ARFSE..ASV71,AXVA70,MXVA71..S

BLACK PAINT

 1
17430-0V471

A25AFKS,M20CFKS..AXVA70,MXVA71..S

NO PAINT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0V470

A25AFKS,M20CFKS,6ARFSE..ASV71,AXVA70,MXVA71..S

BLACK PAINT

 1
17430-0V471

A25AFKS,M20CFKS..AXVA70,MXVA71..S

NO PAINT

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-0V110

A25AFKS,M20CFKS,6ARFSE..ASV71,AXVA70,MXVA71..S

BLACK PAINT

 1
17440-0V111

A25AFKS,M20CFKS..AXVA70,MXVA71..S

NO PAINT

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-0V110

A25AFKS,M20CFKS,6ARFSE..ASV71,AXVA70,MXVA71..S

BLACK PAINT

 1
17440-0V111

A25AFKS,M20CFKS..AXVA70,MXVA71..S

NO PAINT

 1
17448 - BAFFLE, TAIL PIPE
17448-31160

A25AFKS,M20CFKS..AXVA70,MXVA71..S

 4
17408-0V040

A25AFKS,M20CFKS..AXVA70,MXVA71..E,G

 2
17448 - BAFFLE, TAIL PIPE
17448-31160

A25AFKS,M20CFKS..AXVA70,MXVA71..S

 4
17408-0V040

A25AFKS,M20CFKS..AXVA70,MXVA71..E,G

 2
17448 - BAFFLE, TAIL PIPE
17448-31160

A25AFKS,M20CFKS..AXVA70,MXVA71..S

 4
17408-0V040

A25AFKS,M20CFKS..AXVA70,MXVA71..E,G

 2
17448 - BAFFLE, TAIL PIPE
17448-31160

A25AFKS,M20CFKS..AXVA70,MXVA71..S

 4
17408-0V040

A25AFKS,M20CFKS..AXVA70,MXVA71..E,G

 2
17448 - BAFFLE, TAIL PIPE
17448-31160

A25AFKS,M20CFKS..AXVA70,MXVA71..S

 4
17408-0V040

A25AFKS,M20CFKS..AXVA70,MXVA71..E,G

 2
17448 - BAFFLE, TAIL PIPE
17448-31160

A25AFKS,M20CFKS..AXVA70,MXVA71..S

 4
17408-0V040

A25AFKS,M20CFKS..AXVA70,MXVA71..E,G

 2
17451 - GASKET, EXHAUST PIPE
90917-C6004

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-C6001

A25AFKS,M20CFKS..AXVA70,MXVA71

 2
17451A - GASKET, EXHAUST PIPE, NO.2
90917-C6001

A25AFKS,M20CFKS..AXVA70,MXVA71

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17566-F0020

A25AFKS,M20CFKS..AXVA70,MXVA71

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17566-F0020

A25AFKS,M20CFKS..AXVA70,MXVA71

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0H060

A25AFKS,M20CFKS..AXVA70,MXVA71

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0H060

A25AFKS,M20CFKS..AXVA70,MXVA71

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080

A25AFKS,M20CFKS..AXVA70,MXVA71

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080

A25AFKS,M20CFKS..AXVA70,MXVA71

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-F0010

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-F0010

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-F0040

A25AFKS,M20CFKS..AXVA70,MXVA71

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-F0010

A25#,M20CFKS..AXVA70,AXVH71,MXVA71

 1
Common parts
90105-08488
90105-C0325
