AXVA70L-JEZGBC (2017)

Toyota Camry/Hybrid (China)

Production Dec 2017 - Mar 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2103)AXVA70

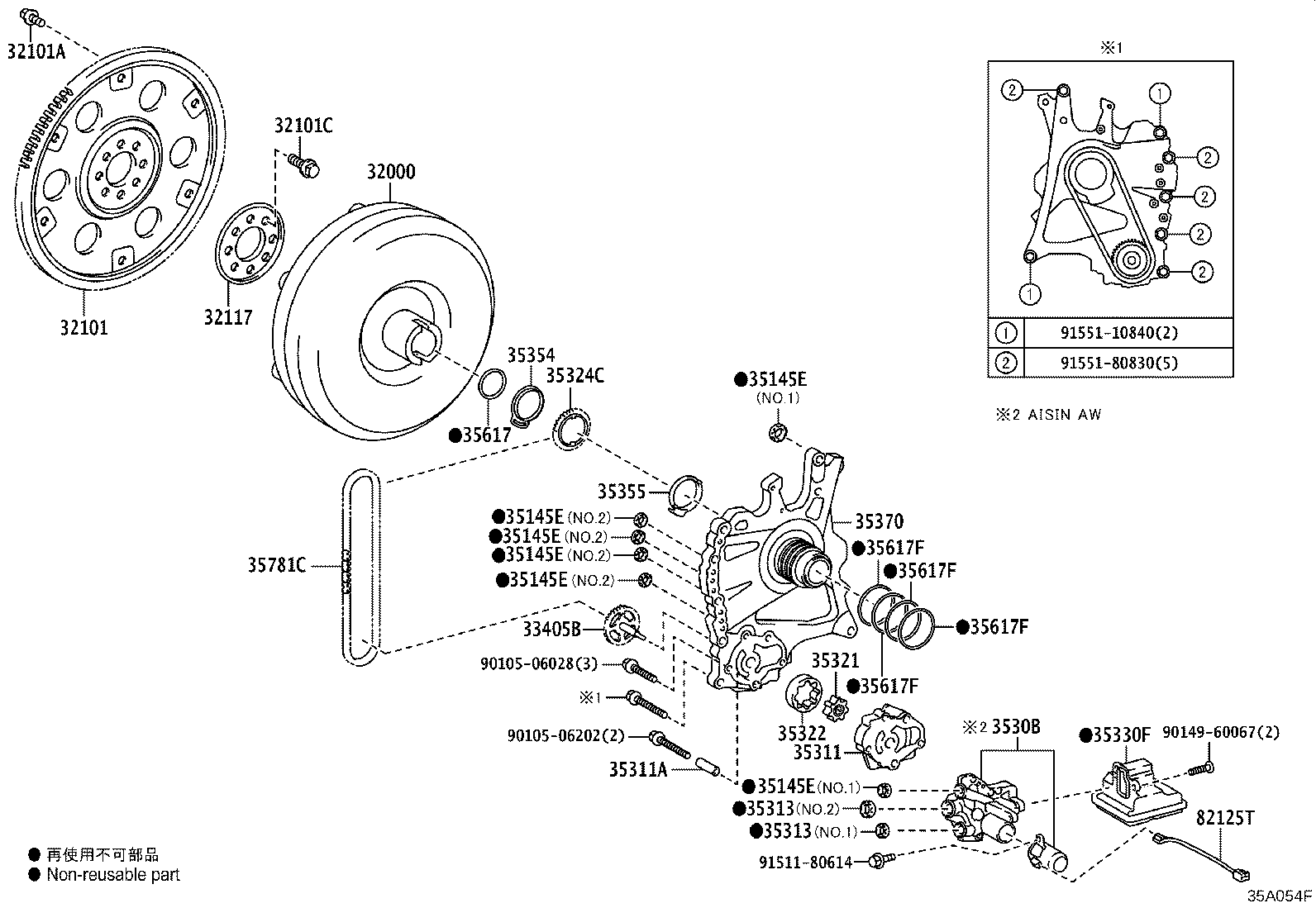

Click highlighted areas on diagram

UB80E

diagram 32000 32101 32101A 32101C 32117 33405B 35145E 35145E 35145E 35145E 35145E 35145E 3530B 35311 35311A 35313 35313 35321 35322 35324C 35330F 35354 35355 35370 35617 35617F 35617F 35617F 35617F 35781C 82125T 9010506028 9010506202 9014960067 9151180614 9155110840 9155180830
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-33180

AXVA70

AISIN AW:REFER 35-01

 1
32000-33180

AXVA70

(J)AISIN:REFER35-01

 1
32000-06060

AXVA70

(L)AISIN:REFER35-01

 1
32000-33170

AXVA70

TOYOTA:REFER 35-01

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-33020

AXVA70

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09025

ASV71,AXVA70

*9-1.25PX12.4-8.4,SILVER WHITE

 5
90109-09001

ASV71,AXVA70

*9-1.25PX12.4-7.3,BLACK

 1
90109-09001

AXVA70

*9-1.25PX12.4-7.3,(J),BLACK

 1
90119-09025

AXVA70

*9-1.25PX12.4-8.4,(J),SILVER WHITE

 5
90119-C0350

AXVA70

*9-1.25PX12.4-7.3,(L),BLACK

 1
90119-C0349

AXVA70

*9-1.25PX12.4-8.4,(L),SILVER WHITE

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12404

AXVA70

*12-1.25PX20.3-14.3

 8
32117 - SPACER, DRIVE PLATE, REAR
32117-33010

AXVA70

 1
33405B - SHAFT SUB-ASSY, OIL PUMP DRIVE
33405-48010

AXVA70

 1
35145E - GASKET, TRANSAXLE CASE
35145-33010

AXVA70

NO.1:REFER ILLUST.

 2
35145-48030

AXVA70

NO.2:REFER ILLUST.

 4
35145E - GASKET, TRANSAXLE CASE
35145-33010

AXVA70

NO.1:REFER ILLUST.

 2
35145-48030

AXVA70

NO.2:REFER ILLUST.

 4
35145E - GASKET, TRANSAXLE CASE
35145-33010

AXVA70

NO.1:REFER ILLUST.

 2
35145-48030

AXVA70

NO.2:REFER ILLUST.

 4
35145E - GASKET, TRANSAXLE CASE
35145-33010

AXVA70

NO.1:REFER ILLUST.

 2
35145-48030

AXVA70

NO.2:REFER ILLUST.

 4
35145E - GASKET, TRANSAXLE CASE
35145-33010

AXVA70

NO.1:REFER ILLUST.

 2
35145-48030

AXVA70

NO.2:REFER ILLUST.

 4
35145E - GASKET, TRANSAXLE CASE
35145-33010

AXVA70

NO.1:REFER ILLUST.

 2
35145-48030

AXVA70

NO.2:REFER ILLUST.

 4
3530B - COVER SUB-ASSY, FRONT OIL PUMP & SOLENOID
3530B-48040

AXVA70

AISIN AW:REFER 35-01

 1
35311 - BODY, FRONT OIL PUMP
35311-48040

AXVA70

AISIN AW:REFER 35-01

 1
35311-48030

AXVA70

TOYOTA:REFER 35-01

 1
35311A - PIN, RING
90253-09004

AXVA70

TOYOTA:REFER 35-01

 2
90253-09005

AXVA70

TOYOTA:REFER 35-01

 2
90253-09004

AXVA70

AISIN AW:REFER 35-01

 2
35313 - GASKET, FRONT OIL PUMP COVER
35313-48030

AXVA70

NO.2:REFER ILLUST.

 1
35313-48020

AXVA70

NO.1:REFER ILLUST.

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-48030

AXVA70

NO.2:REFER ILLUST.

 1
35313-48020

AXVA70

NO.1:REFER ILLUST.

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-48110

AXVA70

T=16.66

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-48110

AXVA70

T=16.66

 1
35324C - SPROCKET, TRANSMISSION OIL PUMP DRIVE
35324-48030

AXVA70

TOYOTA:REFER 35-01

 1
35324-48040

AXVA70

AISIN AW:REFER 35-01

 1
35330F - STRAINER ASSY, OIL
35330-48040

AXVA70

 1
35354 - WASHER, OIL PUMP SPROCKET THRUST, FRONT
35354-48010

AXVA70

 1
35355 - WASHER, OIL PUMP SPROCKET THRUST, REAR
35355-48010

AXVA70

 1
35355-48011

AXVA70

 1
35370 - SHAFT ASSY, STATOR
35370-33070

AXVA70

AISIN AW:REFER 35-01

 1
35370-33050

AXVA70

TOYOTA:REFER 35-01

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-48050

AXVA70

 1
35617F - RING, CLUTCH DRUM OIL SEAL
35617-33020

AXVA70

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-33020

AXVA70

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-33020

AXVA70

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-33020

AXVA70

 4
35781C - CHAIN, TRANSMISSION DRIVE
35781-48020

AXVA70

 1
82125T - WIRE, TRANSMISSION
82125-48050

AXVA70

 1
Common parts
90105-06028
90105-06202
90149-60067
91511-80614
91551-10840
91551-80830
