AXVA70L-JEZGBC (2017)

Toyota Camry/Hybrid (China)

Production Dec 2017 - Mar 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2103)A25AFKS,M20CFKS

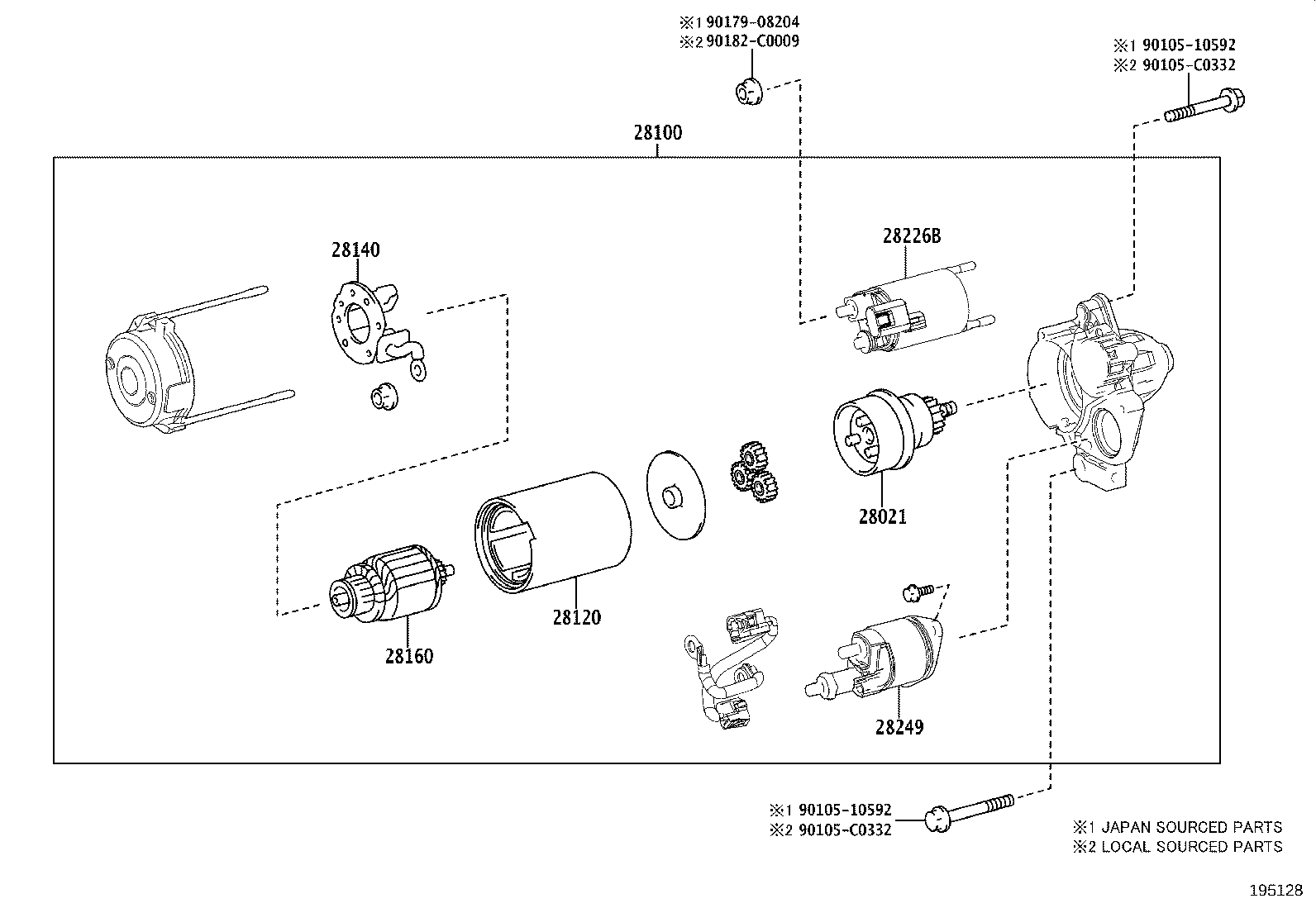

Click highlighted areas on diagram

12V 1.7KW

diagram 28021 28100 28120 28140 28160 28226B 28249 9010510592 9010510592 90105C0332 90105C0332 9017908204 90182C0009
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-F0020

A25AFKS,M20CFKS..AXVA70,MXVA71

 1
28100 - STARTER ASSY
28100-F0020

A25AFKS,M20CFKS..AXVA70,MXVA71

12V 1.7KW

 1
28100-F2080

A25AFKS,M20CFKS..AXVA70,MXVA71

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-F0020

A25AFKS,M20CFKS..AXVA70,MXVA71

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0V040

A25AFKS,M20CFKS..AXVA70,MXVA71

 1
28160 - ARMATURE ASSY, STARTER
28160-0S050

A25AFKS,M20CFKS..AXVA70,MXVA71

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-25070

A25AFKS,M20CFKS..AXVA70,MXVA71

 1
28249 - RELAY, STARTER INRUSH CURRENT REDUCTION
28249-37100

A25AFKS,M20CFKS..AXVA70,MXVA71

 1
28249-F0020

A25AFKS,M20CFKS..AXVA70,MXVA71

LOCAL SOURCED PARTS

 1
28249-37100

A25AFKS,M20CFKS..AXVA70,MXVA71

JAPAN SOURCED PARTS

 1
Common parts
90105-10592
90105-C0332
90179-08204
90182-C0009
