AXVA70L-JEZGBC (2017)

Toyota Camry/Hybrid (China)

Production Dec 2017 - Mar 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )A25AFKS

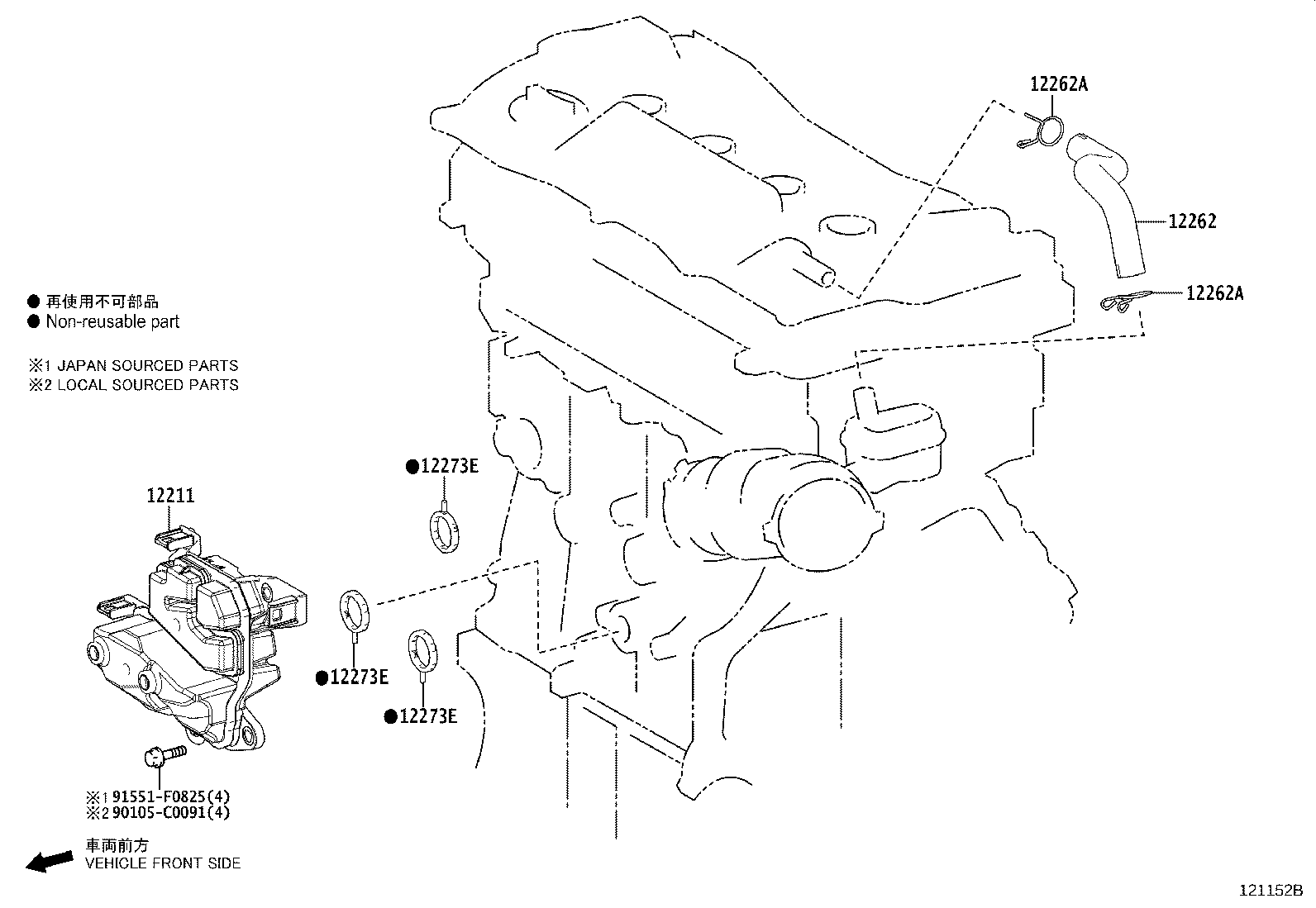

Click highlighted areas on diagram

diagram 12211 12262 12262A 12262A 12273E 12273E 12273E 90105C0091 91551F0825
Part # Description Qty Price
12211 - CASE, VENTILATION, NO.1
12211-25011

A25#..AXVA70,AXVH71

 1
12211-25010

A25#..AXVA70,AXVH71

 1
12262 - HOSE, VENTILATION, NO.2
12262-25030

A25AFKS..AXVA70

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

A25#..AXVA70,AXVH71

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

A25#..AXVA70,AXVH71

 2
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25#..AXVA70,AXVH71

 3
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25#..AXVA70,AXVH71

 3
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25#..AXVA70,AXVH71

 3
Common parts
90105-C0091
91551-F0825
