ASV71L-JETSHC (2017)
Toyota Camry/Hybrid (China)
Production
Dec 2017
-
Feb 2019
Engine
6ARFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )ASV71

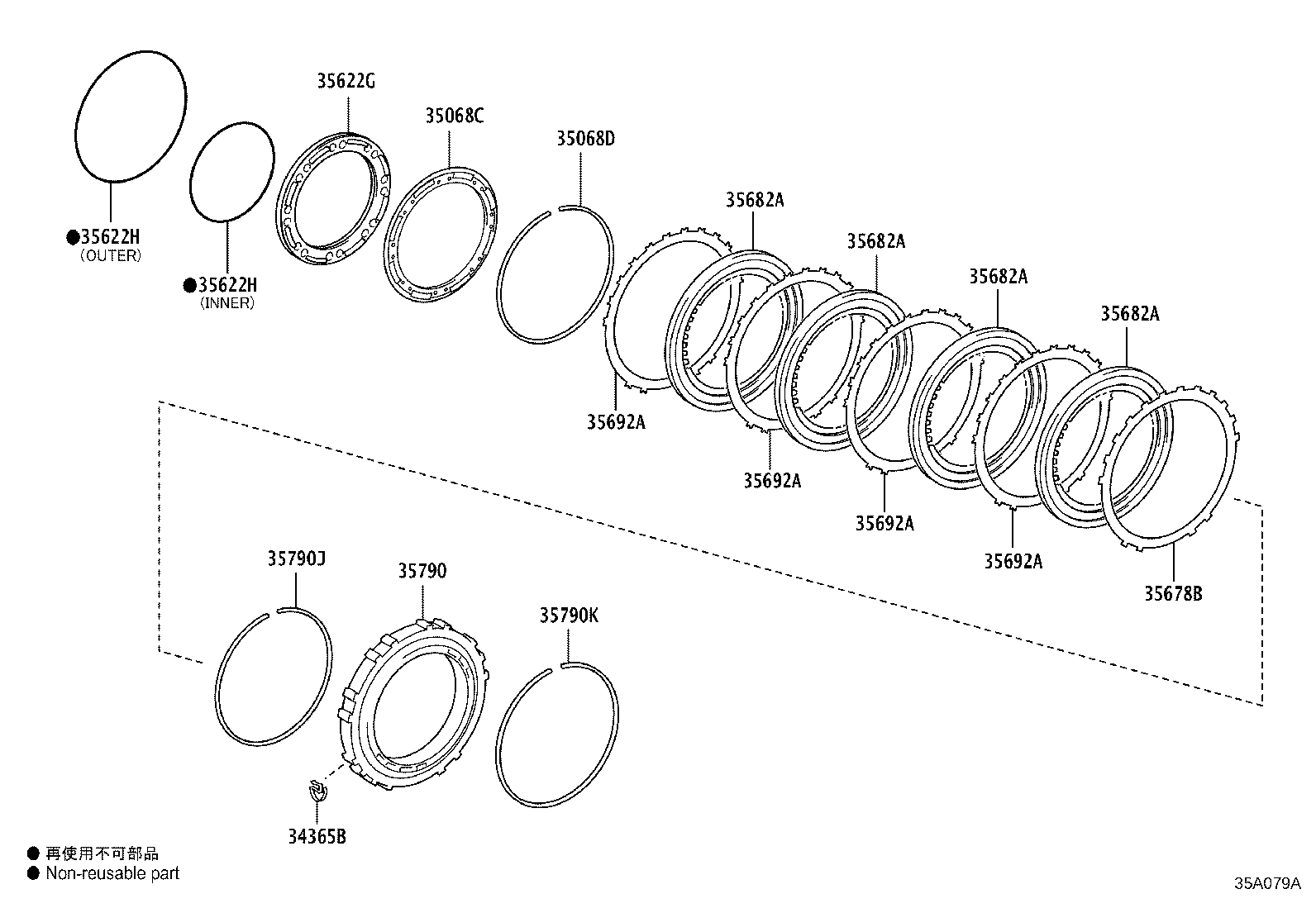

Click highlighted areas on diagram
U761E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34365B - RETAINER, OUTER RACE | ||||
| 34365-33021 |
ASV71 |
1 | ||
| 35068C - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-33030 |
ASV71 |
1 | ||
| 35068D - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-99109 |
ASV71 |
1 | ||
| 35622G - PISTON, BRAKE, NO.2 | ||||
| 35622-33050 |
ASV71 |
1 | ||
| 35622H - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99191 |
ASV71 OUTER |
1 | ||
| 90301-99190 |
ASV71 INNER |
1 | ||
| 35622H - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99191 |
ASV71 OUTER |
1 | ||
| 90301-99190 |
ASV71 INNER |
1 | ||
| 35678B - FLANGE, BRAKE, NO.2 | ||||
| 35678-33140 |
ASV71 T=4.0,MARK 40A |
1 | ||
| 35678-33150 |
ASV71 T=4.1,MARK 41A |
1 | ||
| 35678-33180 |
ASV71 T=4.4,MARK 44A |
1 | ||
| 35678-33170 |
ASV71 T=4.3,MARK 43A |
1 | ||
| 35678-33160 |
ASV71 T=4.2,MARK 42A |
1 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33030 |
ASV71 |
4 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33030 |
ASV71 |
4 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33030 |
ASV71 |
4 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33030 |
ASV71 |
4 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-73020 |
ASV71 |
4 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-73020 |
ASV71 |
4 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-73020 |
ASV71 |
4 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-73020 |
ASV71 |
4 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35791-48010 |
ASV71 |
1 | ||
| 35790J - RING, SNAP NO.1 (FOR 1 WAY CLUTCH) | ||||
| 90520-99105 |
ASV71 |
1 | ||
| 35790K - RING, SNAP NO.2 (FOR 1 WAY CLUTCH) | ||||
| 90520-99106 |
ASV71 |
1 | ||
