ASV71L-JETSHC (2017)

Toyota Camry/Hybrid (China)

Production Dec 2017 - Feb 2019
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )6ARFSE

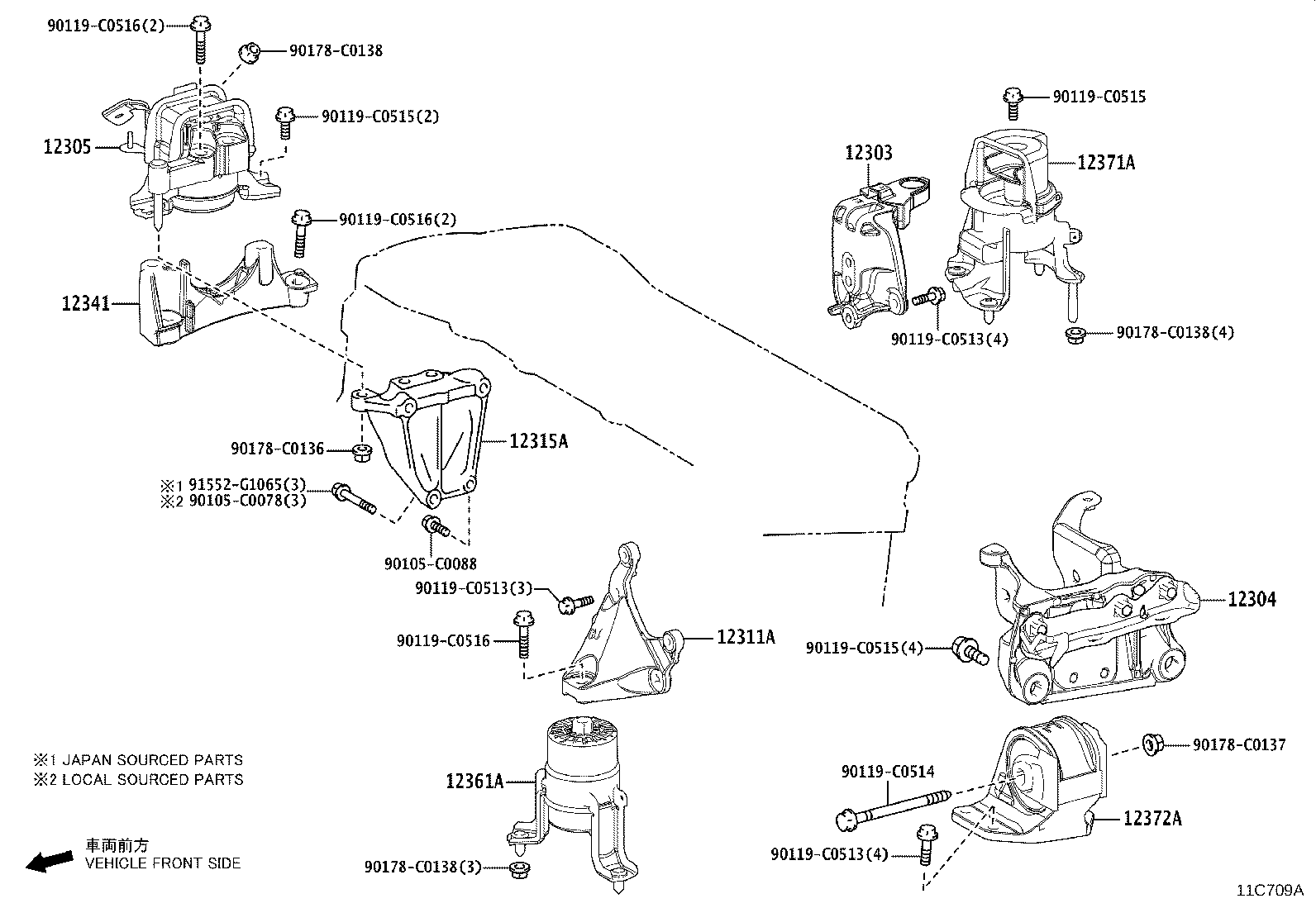

Click highlighted areas on diagram

diagram 12303 12304 12305 12311A 12315A 12341 12361A 12371A 12372A 90105C0078 90105C0088 90119C0513 90119C0513 90119C0513 90119C0514 90119C0515 90119C0515 90119C0515 90119C0516 90119C0516 90119C0516 90178C0136 90178C0137 90178C0138 90178C0138 90178C0138 91552G1065
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-0V020

6ARFSE..ASV71

 1
12304 - BRACKET SUB-ASSY, ENGINE MOUNTING, LH
12304-0V040

6ARFSE..ASV71

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0V060

6ARFSE..ASV71

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0V190

6ARFSE..ASV71

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0V031

6ARFSE..ASV71

(L)

 1
12315-36011

6ARFSE..ASV71

(J)

 1
12341 - SPACER, ENGINE MOUNTING
12341-F0040

6ARFSE..ASV71

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-F0050

6ARFSE..ASV71

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0V090

6ARFSE..ASV71

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0V110

6ARFSE..ASV71

 1
Common parts
90105-C0078
90105-C0088
90119-C0513
90119-C0514
90119-C0515
90119-C0516
90178-C0136
90178-C0137
90178-C0138
91552-G1065
