ASV71L-JETGHC (2017)
Toyota Camry/Hybrid (China)
(1712- )ASV71
U761E

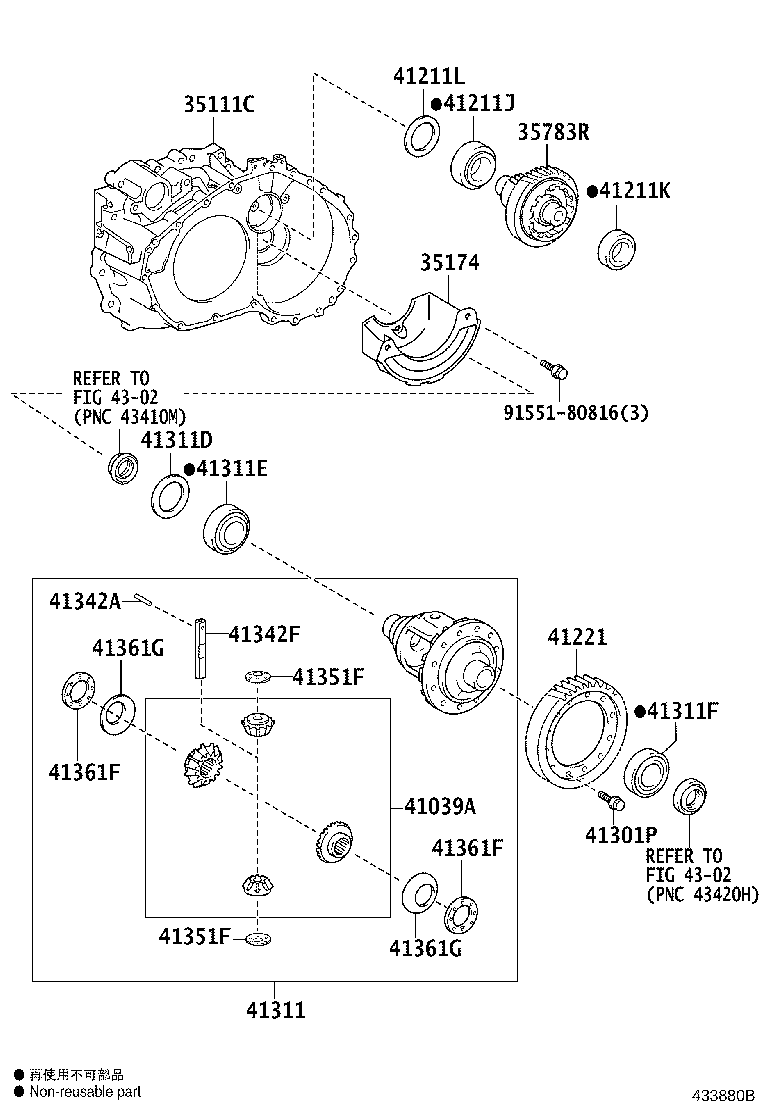

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-33022 |
ASV71 |
1 | ||
| 35174 - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-73010 |
ASV71 |
1 | ||
| 35783R - GEAR, COUNTER DRIVEN | ||||
| 35705-33120 |
ASV71 |
1 | ||
| 35705-33040 |
ASV71 |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-28030 |
ASV71 |
1 | ||
| 41211J - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-35167 |
ASV71 |
1 | ||
| 41211K - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-32034 |
ASV71 |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-61023 |
ASV71 T=2.025 |
1 | ||
| 90564-61024 |
ASV71 T=2.050 |
1 | ||
| 90564-61028 |
ASV71 T=2.150 |
1 | ||
| 90564-61030 |
ASV71 T=2.200 |
1 | ||
| 90564-61022 |
ASV71 T=2.000 |
1 | ||
| 90564-61036 |
ASV71 T=2.350 |
1 | ||
| 90564-61033 |
ASV71 T=2.275 |
1 | ||
| 90564-61034 |
ASV71 T=2.300 |
1 | ||
| 90564-61026 |
ASV71 T=2.100 |
1 | ||
| 90564-61039 |
ASV71 T=2.425 |
1 | ||
| 90564-61035 |
ASV71 T=2.325 |
1 | ||
| 90564-61032 |
ASV71 T=2.250 |
1 | ||
| 90564-61025 |
ASV71 T=2.075 |
1 | ||
| 90564-61043 |
ASV71 T=2.525 |
1 | ||
| 90564-61027 |
ASV71 T=2.125 |
1 | ||
| 90564-61040 |
ASV71 T=2.450 |
1 | ||
| 90564-61042 |
ASV71 T=2.500 |
1 | ||
| 90564-61029 |
ASV71 T=2.175 |
1 | ||
| 90564-61038 |
ASV71 T=2.400 |
1 | ||
| 90564-61046 |
ASV71 T=2.600 |
1 | ||
| 90564-61044 |
ASV71 T=2.550 |
1 | ||
| 90564-61048 |
ASV71 T=2.650 |
1 | ||
| 90564-61045 |
ASV71 T=2.575 |
1 | ||
| 90564-61049 |
ASV71 T=2.675 |
1 | ||
| 90564-61052 |
ASV71 T=2.750 |
1 | ||
| 90564-61041 |
ASV71 T=2.475 |
1 | ||
| 90564-61047 |
ASV71 T=2.625 |
1 | ||
| 90564-61031 |
ASV71 T=2.225 |
1 | ||
| 90564-61058 |
ASV71 T=2.900 |
1 | ||
| 90564-61051 |
ASV71 T=2.725 |
1 | ||
| 90564-61059 |
ASV71 T=2.925 |
1 | ||
| 90564-61037 |
ASV71 T=2.375 |
1 | ||
| 90564-61053 |
ASV71 T=2.775 |
1 | ||
| 90564-61050 |
ASV71 T=2.700 |
1 | ||
| 90564-61055 |
ASV71 T=2.825 |
1 | ||
| 90564-61054 |
ASV71 T=2.800 |
1 | ||
| 90564-61056 |
ASV71 T=2.850 |
1 | ||
| 90564-61057 |
ASV71 T=2.875 |
1 | ||
| 90564-61061 |
ASV71 T=2.975 |
1 | ||
| 90564-61062 |
ASV71 T=3.000 |
1 | ||
| 90564-61060 |
ASV71 T=2.950 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-33190 |
ASV71 |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12303 |
ASV71 |
12 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-33101 |
ASV71 |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-69001 |
ASV71 T=2.000 |
1 | ||
| 90564-69005 |
ASV71 T=2.100 |
1 | ||
| 90564-69003 |
ASV71 T=2.050 |
1 | ||
| 90564-69007 |
ASV71 T=2.150 |
1 | ||
| 90564-69006 |
ASV71 T=2.125 |
1 | ||
| 90564-69002 |
ASV71 T=2.025 |
1 | ||
| 90564-69004 |
ASV71 T=2.075 |
1 | ||
| 90564-69008 |
ASV71 T=2.175 |
1 | ||
| 90564-69013 |
ASV71 T=2.300 |
1 | ||
| 90564-69017 |
ASV71 T=2.400 |
1 | ||
| 90564-69015 |
ASV71 T=2.350 |
1 | ||
| 90564-69020 |
ASV71 T=2.425 |
1 | ||
| 90564-69014 |
ASV71 T=2.325 |
1 | ||
| 90564-69009 |
ASV71 T=2.200 |
1 | ||
| 90564-69011 |
ASV71 T=2.250 |
1 | ||
| 90564-69016 |
ASV71 T=2.375 |
1 | ||
| 90564-69012 |
ASV71 T=2.275 |
1 | ||
| 90564-69025 |
ASV71 T=2.550 |
1 | ||
| 90564-69021 |
ASV71 T=2.450 |
1 | ||
| 90564-69010 |
ASV71 T=2.225 |
1 | ||
| 90564-69026 |
ASV71 T=2.575 |
1 | ||
| 90564-69028 |
ASV71 T=2.625 |
1 | ||
| 90564-69027 |
ASV71 T=2.600 |
1 | ||
| 90564-69023 |
ASV71 T=2.500 |
1 | ||
| 90564-69029 |
ASV71 T=2.650 |
1 | ||
| 90564-69022 |
ASV71 T=2.475 |
1 | ||
| 90564-69034 |
ASV71 T=2.775 |
1 | ||
| 90564-69030 |
ASV71 T=2.675 |
1 | ||
| 90564-69037 |
ASV71 T=2.850 |
1 | ||
| 90564-69035 |
ASV71 T=2.800 |
1 | ||
| 90564-69032 |
ASV71 T=2.725 |
1 | ||
| 90564-69024 |
ASV71 T=2.525 |
1 | ||
| 90564-69036 |
ASV71 T=2.825 |
1 | ||
| 90564-69038 |
ASV71 T=2.875 |
1 | ||
| 90564-69033 |
ASV71 T=2.750 |
1 | ||
| 90564-69031 |
ASV71 T=2.700 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-50118 |
ASV71 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55071 |
ASV71 |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ASV71 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-33061 |
ASV71 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-73010 |
ASV71 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-73010 |
ASV71 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-33300 |
ASV71 T=0.95 |
2 | ||
| 41361-33340 |
ASV71 T=0.90 |
2 | ||
| 41361-73020 |
ASV71 T=1.10 |
2 | ||
| 41361-33310 |
ASV71 T=1.05 |
2 | ||
| 41361-33330 |
ASV71 T=1.25 |
2 | ||
| 41361-33350 |
ASV71 T=0.95 |
2 | ||
| 41361-73030 |
ASV71 T=1.20 |
2 | ||
| 41361-33320 |
ASV71 T=1.15 |
2 | ||
| 41361-73010 |
ASV71 T=1.00 |
2 | ||
| 41361-33380 |
ASV71 T=1.10 |
2 | ||
| 41361-33360 |
ASV71 T=1.00 |
2 | ||
| 41361-33370 |
ASV71 T=1.05 |
2 | ||
| 41361-33410 |
ASV71 T=1.25 |
2 | ||
| 41361-73050 |
ASV71 T=0.90 |
2 | ||
| 41361-33400 |
ASV71 T=1.20 |
2 | ||
| 41361-33390 |
ASV71 T=1.15 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-33300 |
ASV71 T=0.95 |
2 | ||
| 41361-33340 |
ASV71 T=0.90 |
2 | ||
| 41361-73020 |
ASV71 T=1.10 |
2 | ||
| 41361-33310 |
ASV71 T=1.05 |
2 | ||
| 41361-33330 |
ASV71 T=1.25 |
2 | ||
| 41361-33350 |
ASV71 T=0.95 |
2 | ||
| 41361-73030 |
ASV71 T=1.20 |
2 | ||
| 41361-33320 |
ASV71 T=1.15 |
2 | ||
| 41361-73010 |
ASV71 T=1.00 |
2 | ||
| 41361-33380 |
ASV71 T=1.10 |
2 | ||
| 41361-33360 |
ASV71 T=1.00 |
2 | ||
| 41361-33370 |
ASV71 T=1.05 |
2 | ||
| 41361-33410 |
ASV71 T=1.25 |
2 | ||
| 41361-73050 |
ASV71 T=0.90 |
2 | ||
| 41361-33400 |
ASV71 T=1.20 |
2 | ||
| 41361-33390 |
ASV71 T=1.15 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-40003 |
ASV71 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-40003 |
ASV71 |
2 | ||
| Common parts | ||||
| 91551-80816 | ||||
