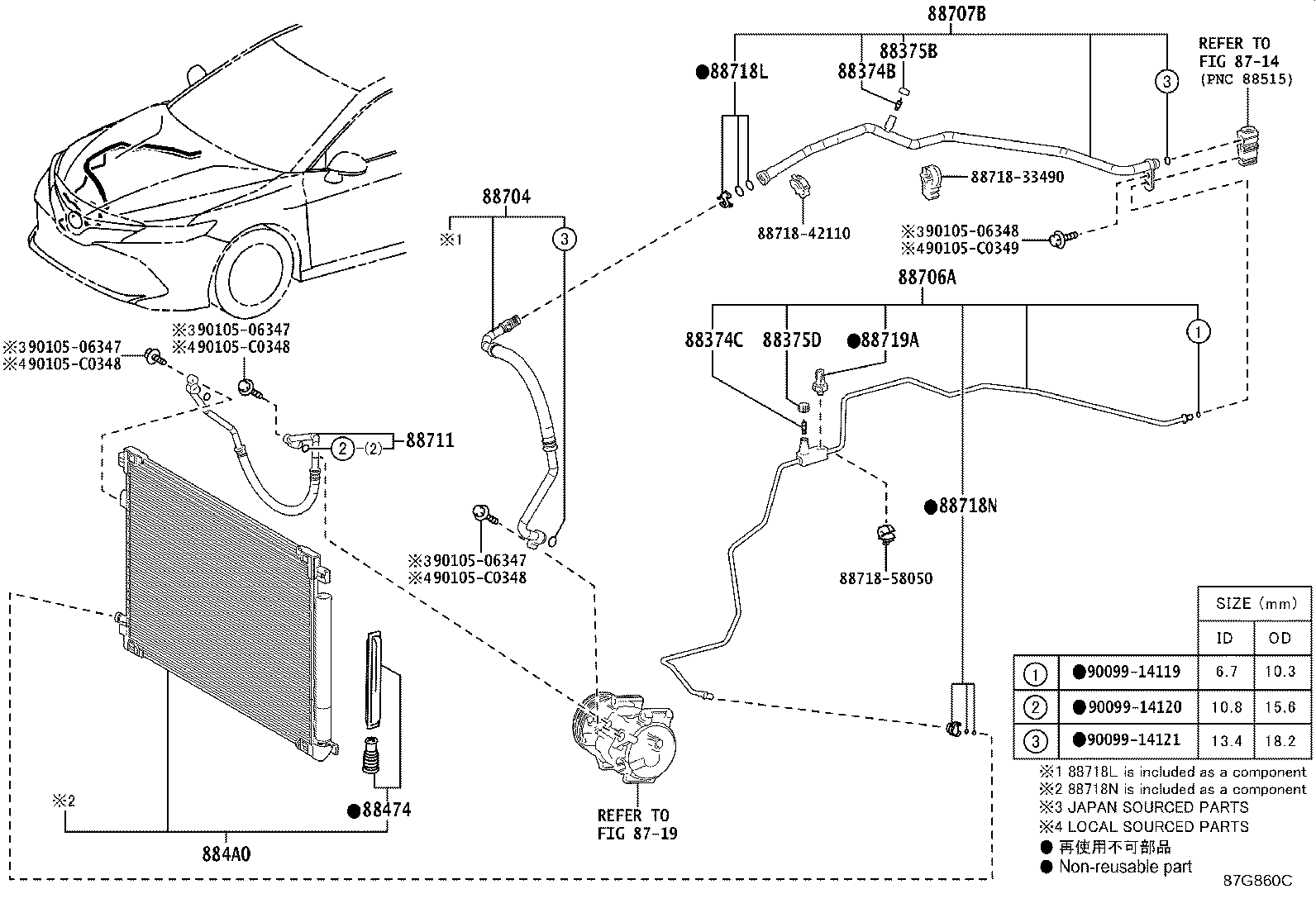

Toyota Camry/hybrid (china) ASV71 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ASV71	12/2017 - 02/2019	1
88374C - VALVE, SERVICE, NO.2
88374-30010	ASV71	12/2017 - 02/2019	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ASV71	12/2017 - 02/2019	1
88375D - CAP, SERVICE VALVE, NO.2
88375-0D010	ASV71	12/2017 - 02/2019	1
88474 - DRYER, COOLER
88474-12020	ASV71	12/2017 - 02/2019	1
884A0 - CONDENSER ASSY, COOLER
884A0-06050	ASV71	12/2017 - 02/2019	1
88704 - HOSE SUB-ASSY, SUCTION
88704-06560	ASV71	12/2017 - 02/2019	1
88706A - TUBE SUB-ASSY, LIQUID, A
88710-06550	ASV71	12/2017 - 02/2019	1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-06390	ASV71	12/2017 - 02/2019	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-06630	ASV71	12/2017 - 02/2019	1
88718L - CLAMP, PIPING
88718-52280	ASV71	12/2017 - 02/2019	1
88718N - CLAMP, PIPING
88718-1E150	ASV71	12/2017 - 02/2019	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010	ASV71	12/2017 - 02/2019	1
Common parts
88718-33490
88718-42110
88718-58050
90099-14119
90099-14120
90099-14121
90105-06347
90105-06348
90105-C0348
90105-C0349
Linked diagrams
8714
8719

ASV71L-JETEHC (2017)
