ASV71L-JETEHC (2017)

Toyota Camry/Hybrid (China)

Production Dec 2017 - Feb 2019
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )ASV71

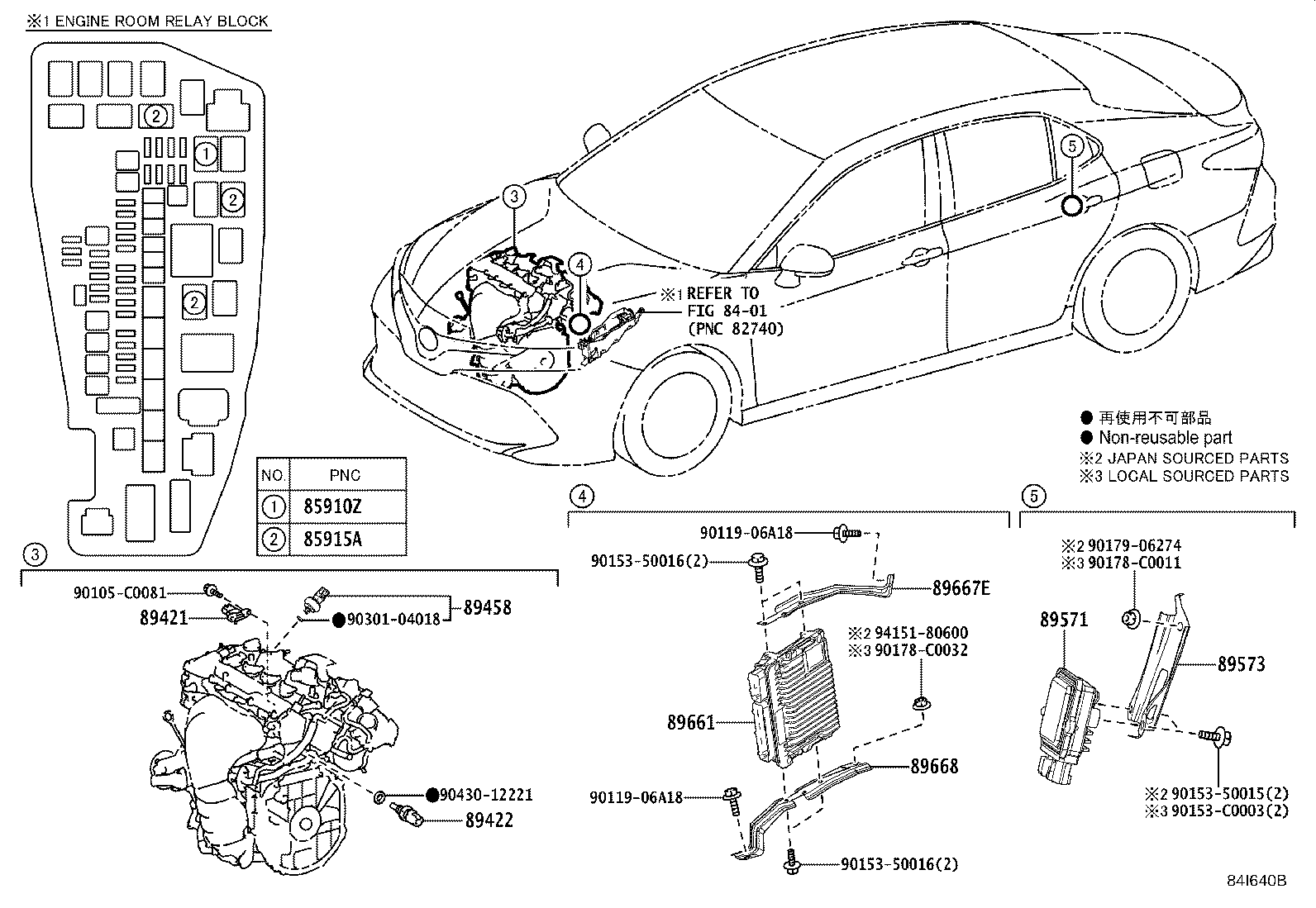

Click highlighted areas on diagram

diagram 8401 85910Z 85915A 89421 89422 89458 89571 89573 89661 89667E 89668 90105C0081 9011906A18 9011906A18 9015350015 9015350016 9015350016 90153C0003 90178C0011 90178C0032 9017906274 9030104018 9043012221 9415180600
Part # Description Qty Price
85910Z - RELAY, INJECTION (FOR EFI)
90987-T2005

ASV71

 1
85915A - RELAY, MAIN
90987-T2005

ASV71

 3
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ASV71

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-0D010

ASV71

 1
89458 - SENSOR, FUEL PRESSURE
89458-33041

ASV71

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-33030

ASV71

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-06030

ASV71

 1
89661 - COMPUTER, ENGINE CONTROL
89661-06Z30

ASV71

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-06280

ASV71

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-06280

ASV71

 1
Common parts
90105-C0081
90119-06A18
90153-50015
90153-50016
90153-C0003
90178-C0011
90178-C0032
90179-06274
90301-04018
90430-12221
94151-80600
Linked diagrams
8401
