ASV71L-JETEHC (2017)

Toyota Camry/Hybrid (China)

Production Dec 2017 - Feb 2019
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )ASV71,AXVA70,MXVA71

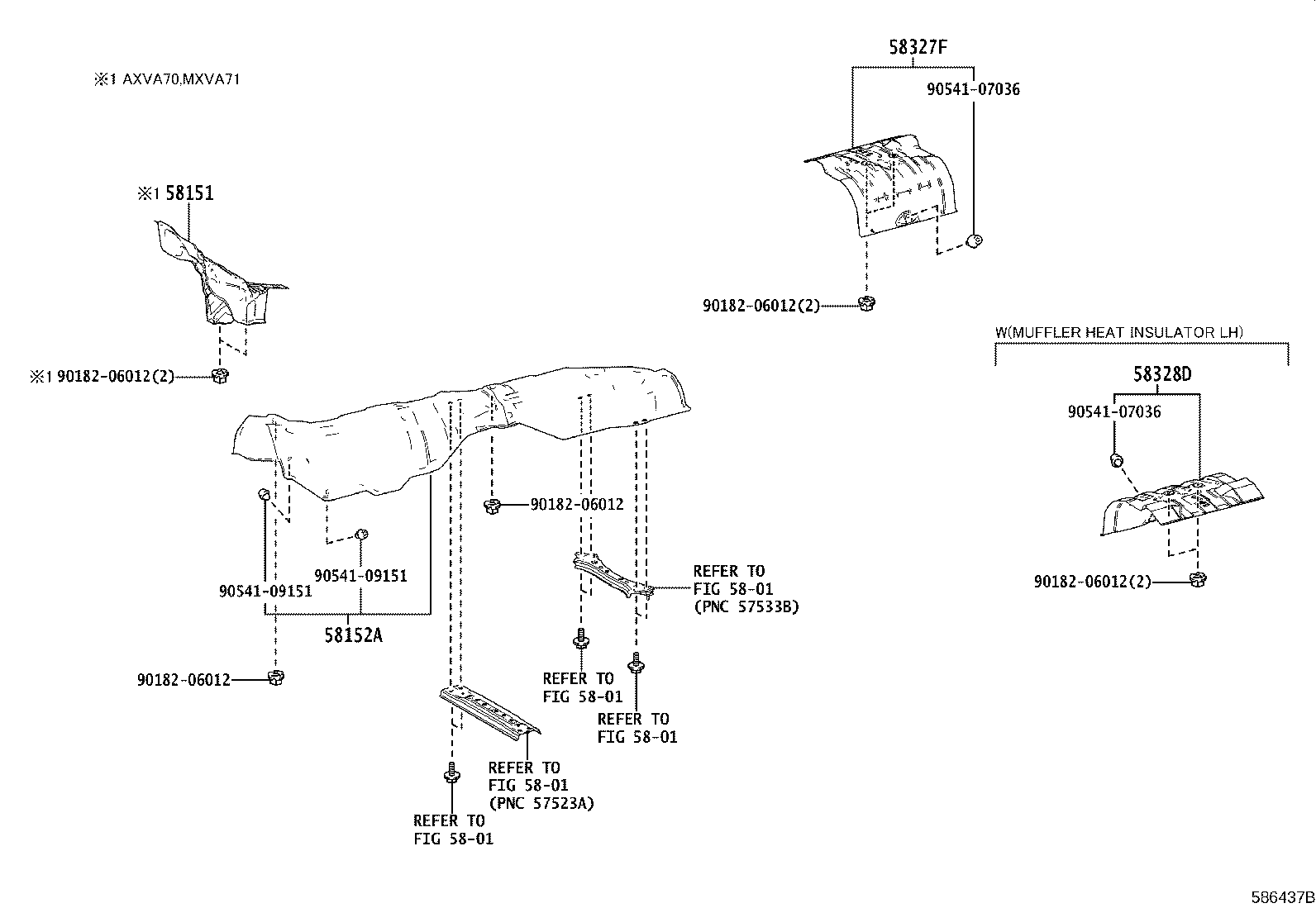

Click highlighted areas on diagram

diagram 5801 5801 5801 5801 5801 58151 58152A 58327F 58328D 9018206012 9018206012 9018206012 9018206012 9018206012 9054107036 9054107036 9054109151 9054109151
Part # Description Qty Price
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58152-06170

ASV71

 1
58327F - INSULATOR, MAIN MUFFLER HEAT, RH
58327-06140

ASV71

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58327-06140

ASV71..G,S

 1
Common parts
90182-06012
90541-07036
90541-09151
Linked diagrams
5801
