ASV71L-JETEHC (2017)
Toyota Camry/Hybrid (China)
Production
Dec 2017
-
Feb 2019
Engine
6ARFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )ASV71

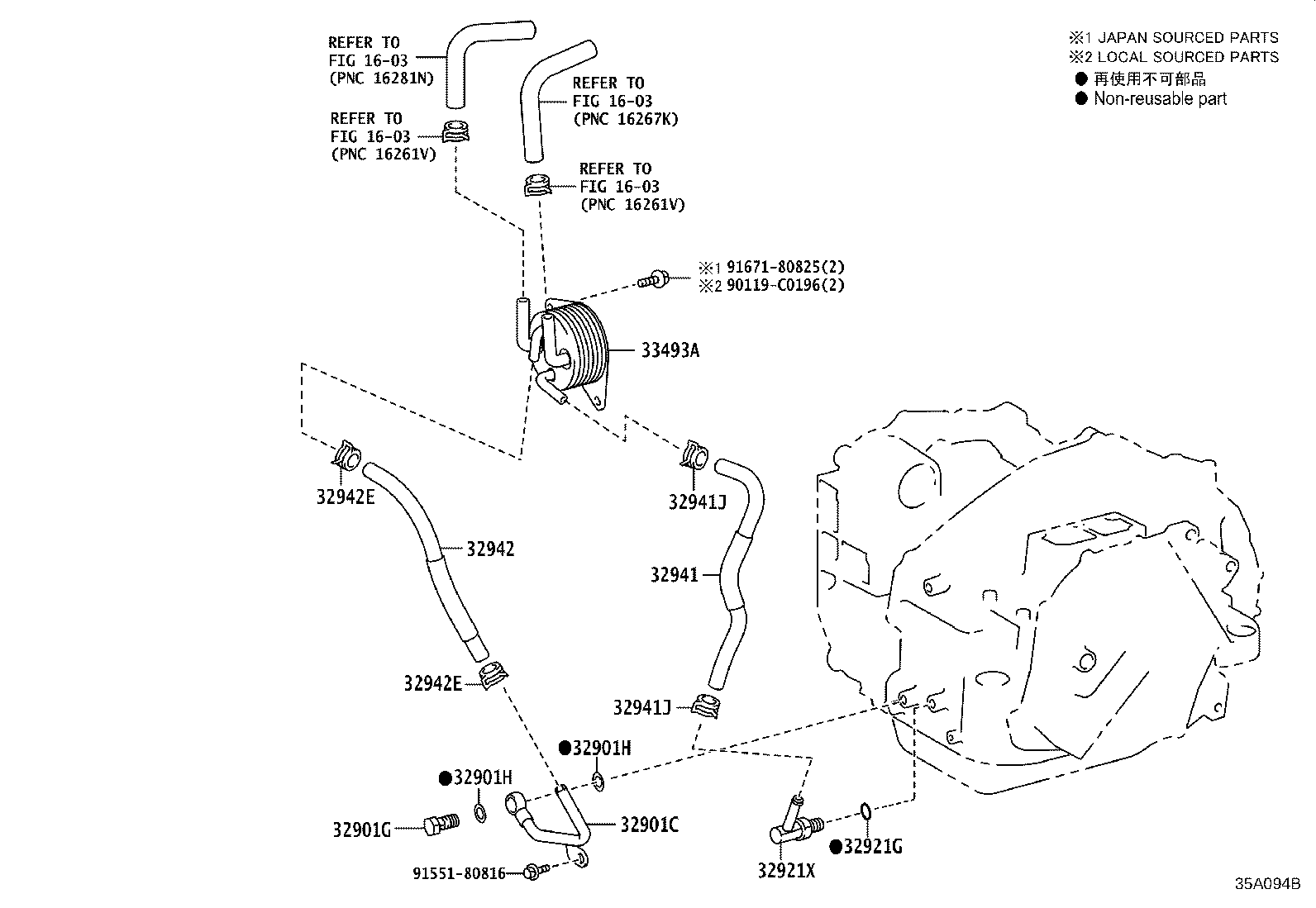

Click highlighted areas on diagram
U761E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32901C - UNION SUB-ASSY, OIL COOLER | ||||
| 32901-48010 |
ASV71 |
1 | ||
| 32901G - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-14003 |
ASV71 |
1 | ||
| 32901H - GASKET(FOR OIL COOLER UNION) | ||||
| 90430-14013 |
ASV71 |
2 | ||
| 32901H - GASKET(FOR OIL COOLER UNION) | ||||
| 90430-14013 |
ASV71 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11031 |
ASV71,AXVA70 |
1 | ||
| 32921X - UNION OR ELBOW, OIL COOLER INLET | ||||
| 90407-14032 |
ASV71 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-06250 |
ASV71 |
1 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ASV71 (J) |
2 | ||
| 90466-C0024 |
ASV71 (L) |
2 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ASV71 (J) |
2 | ||
| 90466-C0024 |
ASV71 (L) |
2 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-06240 |
ASV71 |
1 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
ASV71 (L) |
2 | ||
| 90466-16004 |
ASV71 (J) |
2 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
ASV71 (L) |
2 | ||
| 90466-16004 |
ASV71 (J) |
2 | ||
| 33493A - COOLER, TRANSMISSION OIL | ||||
| 33493-06040 |
ASV71 |
1 | ||
| Common parts | ||||
| 90119-C0196 | ||||
| 91551-80816 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1603 | ||||
