ASV71L-JETEHC (2017)
Toyota Camry/Hybrid (China)

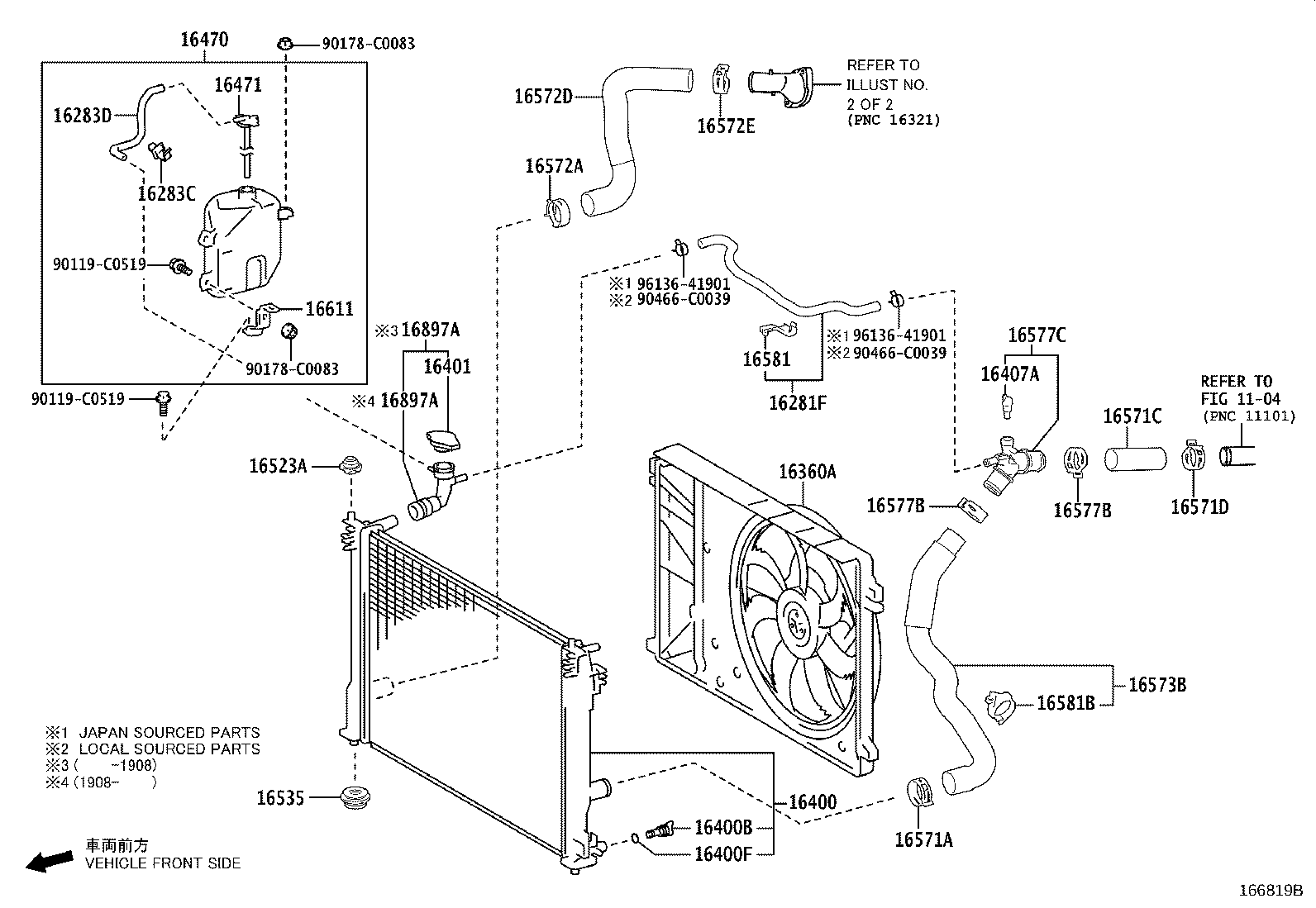

ILLUST NO. 1 OF 2(1712- )6ARFSE
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-0V050 |
6ARFSE..ASV71 |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 16581-F0060 |
6ARFSE..ASV71 |
1 | ||
| 16283D - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-F0050 |
6ARFSE..ASV71 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-0V340 |
6ARFSE..ASV71 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0V300 |
6ARFSE..ASV71 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
6ARFSE..ASV71 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
6ARFSE..ASV71 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36030 |
6ARFSE..ASV71 (J) |
1 | ||
| 16401-F0010 |
6ARFSE..ASV71 (L) |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-36160 |
6ARFSE..ASV71 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0V090 |
6ARFSE..ASV71 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0V040 |
6ARFSE..ASV71 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-F0010 |
6ARFSE..ASV71 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
6ARFSE..ASV71 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-39002 |
6ARFSE..ASV71 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0V280 |
6ARFSE..ASV71 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-43002 |
6ARFSE..ASV71 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 |
6ARFSE..ASV71 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0V280 |
6ARFSE..ASV71 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-43002 |
6ARFSE..ASV71 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0V040 |
6ARFSE..ASV71 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90466-43002 |
6ARFSE..ASV71 |
2 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90466-43002 |
6ARFSE..ASV71 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0V010 |
6ARFSE..ASV71 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-0V050 |
6ARFSE..ASV71 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-F0030 |
6ARFSE..ASV71 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-0V030 |
6ARFSE..ASV71 |
1 | ||
| 16897A - NECK, FILLER | ||||
| 16897-F0030 |
6ARFSE..ASV71 |
1 | ||
| 16897A - NECK, FILLER | ||||
| 16897-F0030 |
6ARFSE..ASV71 |
1 | ||
| Common parts | ||||
| 90119-C0519 | ||||
| 90178-C0083 | ||||
| 90466-C0039 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1104 | ||||

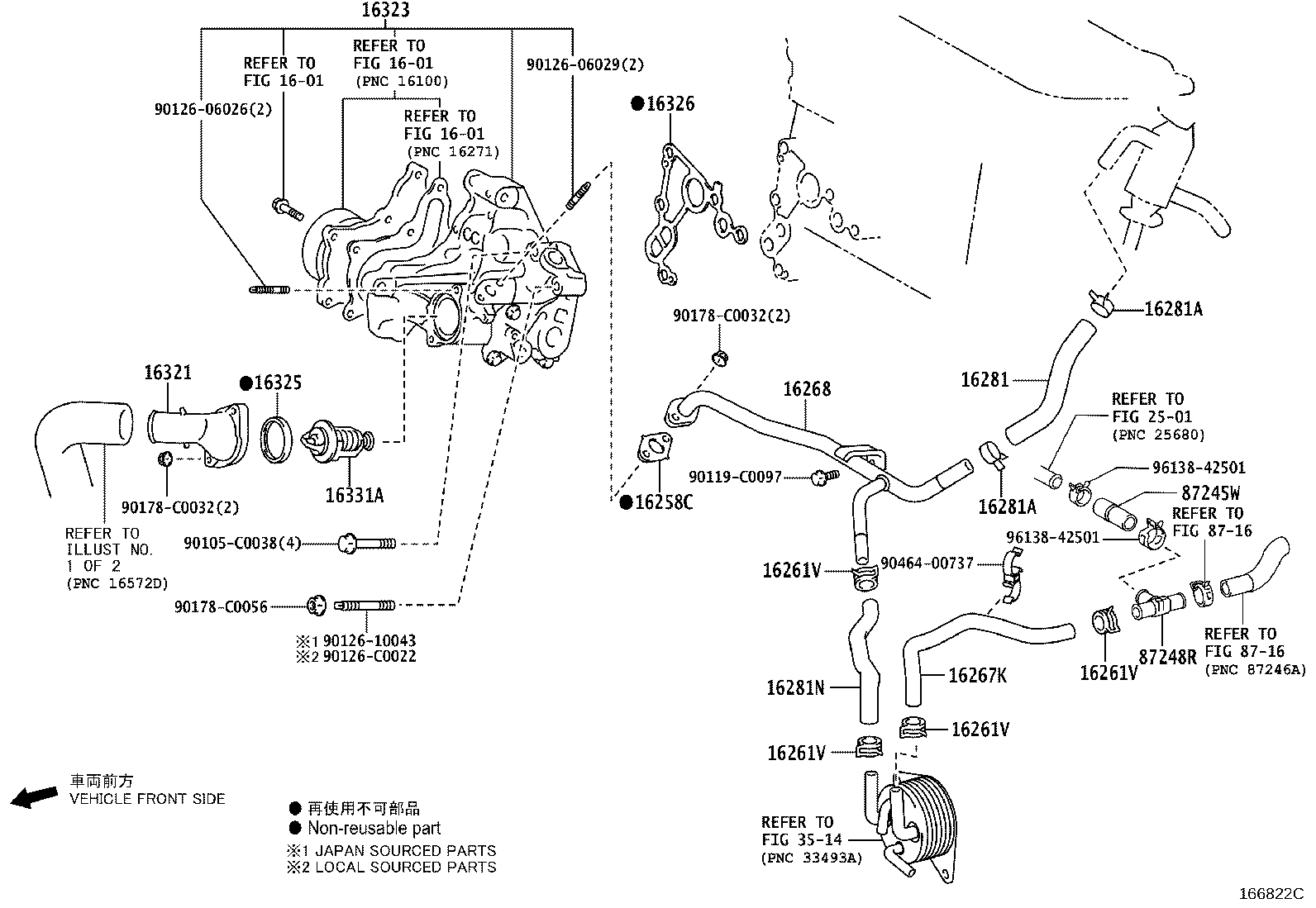

ILLUST NO. 2 OF 2(1712- )6ARFSE
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-0V010 |
6ARFSE..ASV71 |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 16581-36040 |
6ARFSE..ASV71 |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 16581-36040 |
6ARFSE..ASV71 |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 16581-36040 |
6ARFSE..ASV71 |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 16581-36040 |
6ARFSE..ASV71 |
4 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0V150 |
6ARFSE..ASV71 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0V040 |
6ARFSE..ASV71 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-36140 |
6ARFSE..ASV71 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0014 |
6ARFSE..ASV71 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0014 |
6ARFSE..ASV71 |
2 | ||
| 16281N - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0V150 |
6ARFSE..ASV71 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0V020 |
6ARFSE..ASV71 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-0V020 |
6ARFSE..ASV71 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
6ARFSE..ASV71 (J) |
1 | ||
| 16325-0H030 |
6ARFSE..ASV71 (L) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-36010 |
6ARFSE..ASV71 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-C3001 |
6ARFSE..ASV71 *WAX 82-95 |
1 | ||
| 87245W - HOSE, WATER | ||||
| 87245-06D70 |
ASV71 |
1 | ||
| 87248R - PIPE, WATER | ||||
| 87248-33030 |
ASV71 |
1 | ||
| Common parts | ||||
| 90105-C0038 | ||||
| 90119-C0097 | ||||
| 90126-06026 | ||||
| 90126-06029 | ||||
| 90126-10043 | ||||
| 90126-C0022 | ||||
| 90178-C0032 | ||||
| 90178-C0056 | ||||
| 90464-00737 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 2501 | ||||
| 3514 | ||||
| 8716 | ||||
