ASV71L-JETEHC (2017)
Toyota Camry/Hybrid (China)

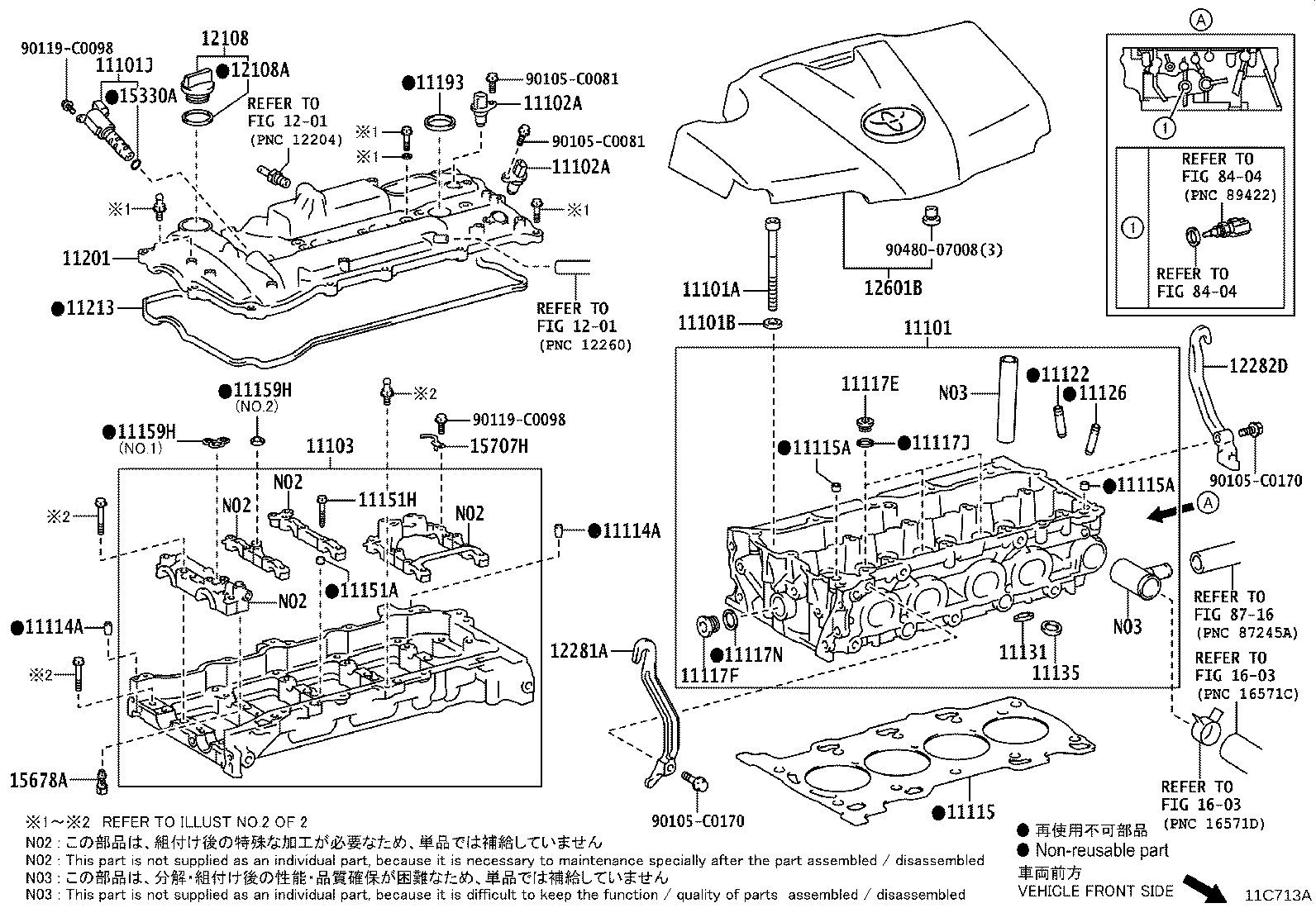

ILLUST NO. 1 OF 2(1712- )6ARFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-09540 |
6ARFSE..ASV71 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
6ARFSE..ASV71 (J) |
10 | ||
| 90910-C2006 |
6ARFSE..ASV71 (L) |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-C0005 |
6ARFSE..ASV71 (L) |
10 | ||
| 90201-11034 |
6ARFSE..ASV71 (J) |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0T030 |
6ARFSE..ASV71 |
1 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
6ARFSE..ASV71 (J) |
2 | ||
| 90919-C5001 |
6ARFSE..ASV71 (L) |
2 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
6ARFSE..ASV71 (J) |
2 | ||
| 90919-C5001 |
6ARFSE..ASV71 (L) |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-0V070 |
6ARFSE..ASV71 |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-C0010 |
6ARFSE..ASV71 L=14,OD=6 |
2 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-C0010 |
6ARFSE..ASV71 L=14,OD=6 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0V020 |
6ARFSE..ASV71 |
1 | ||
| 11115A - PIN, RING | ||||
| 90253-12002 |
6ARFSE..ASV71 (J) |
2 | ||
| 90253-C0002 |
6ARFSE..ASV71 (L) |
2 | ||
| 11115A - PIN, RING | ||||
| 90253-12002 |
6ARFSE..ASV71 (J) |
2 | ||
| 90253-C0002 |
6ARFSE..ASV71 (L) |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
6ARFSE..ASV71 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-24011 |
6ARFSE..ASV71 |
1 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-20004 |
6ARFSE..ASV71 (J) |
3 | ||
| 90430-C0001 |
6ARFSE..ASV71 (L) |
3 | ||
| 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-24246 |
6ARFSE..ASV71 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-31050 |
6ARFSE..ASV71 O/S 0.05 |
8 | ||
| 11122-31050 |
6ARFSE..ASV71 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-31030 |
6ARFSE..ASV71 O/S 0.05 |
8 | ||
| 11126-31030 |
6ARFSE..ASV71 STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-0V040 |
6ARFSE..ASV71 O/S 0.03 |
8 | ||
| 11131-0V040 |
6ARFSE..ASV71 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-0V040 |
6ARFSE..ASV71 O/S 0.03 |
8 | ||
| 11135-0V040 |
6ARFSE..ASV71 STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
6ARFSE..ASV71 L=12.5,OD=8,(J) |
8 | ||
| 90253-C0004 |
6ARFSE..ASV71 L=12.5,OD=8,(L) |
8 | ||
| 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
6ARFSE..ASV71 (J) |
11 | ||
| 90119-C0469 |
6ARFSE..ASV71 (L) |
11 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 90430-C0006 |
6ARFSE..ASV71 NO.2:REFER ILLUST. |
1 | ||
| 11159-0V020 |
6ARFSE..ASV71 NO.1:REFER ILLUST. |
1 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 90430-C0006 |
6ARFSE..ASV71 NO.2:REFER ILLUST. |
1 | ||
| 11159-0V020 |
6ARFSE..ASV71 NO.1:REFER ILLUST. |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-0V020 |
6ARFSE..ASV71 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0V060 |
6ARFSE..ASV71 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0V020 |
6ARFSE..ASV71 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0V010 |
6ARFSE..ASV71 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
6ARFSE..ASV71 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0V010 |
6ARFSE..ASV71 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0V010 |
6ARFSE..ASV71 |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-0V220 |
6ARFSE..ASV71 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14032 |
6ARFSE..ASV71 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-37010 |
6ARFSE..ASV71 (J) |
1 | ||
| 15678-0T020 |
6ARFSE..ASV71 (L) |
1 | ||
| 15707H - PIPE SUB-ASSY, OIL | ||||
| 15707-0V010 |
6ARFSE..ASV71 |
1 | ||
| Common parts | ||||
| 90105-C0081 | ||||
| 90105-C0170 | ||||
| 90119-C0098 | ||||
| 90480-07008 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 8404 | ||||
| 8716 | ||||

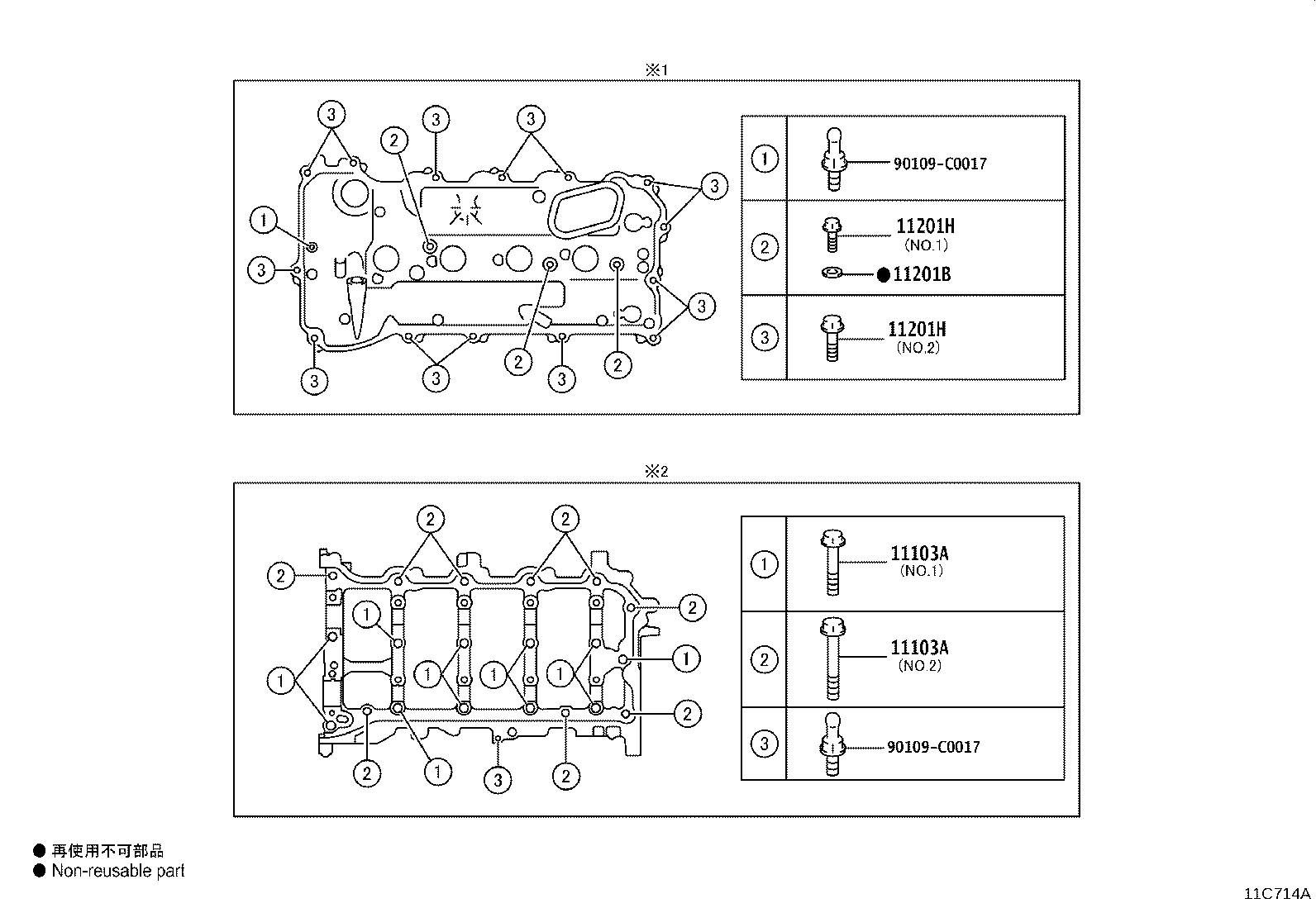

ILLUST NO. 2 OF 2(1712- )6ARFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-C0074 |
6ARFSE..ASV71 NO.2:REFER ILLUST. |
9 | ||
| 90105-C0167 |
6ARFSE..ASV71 NO.1:REFER ILLUST. |
11 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-C0074 |
6ARFSE..ASV71 NO.2:REFER ILLUST. |
9 | ||
| 90105-C0167 |
6ARFSE..ASV71 NO.1:REFER ILLUST. |
11 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-05008 |
6ARFSE..ASV71 (J) |
3 | ||
| 90210-C0003 |
6ARFSE..ASV71 (L) |
3 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90105-C0072 |
6ARFSE..ASV71 NO.2:REFER ILLUST. |
14 | ||
| 90105-C0084 |
6ARFSE..ASV71 NO.1:REFER ILLUST. |
3 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90105-C0072 |
6ARFSE..ASV71 NO.2:REFER ILLUST. |
14 | ||
| 90105-C0084 |
6ARFSE..ASV71 NO.1:REFER ILLUST. |
3 | ||
| Common parts | ||||
| 90109-C0017 | ||||
