ASV51L-JETEHC (2015)

Toyota Camry/Hybrid (China)

Production Jan 2015 - Nov 2017
Engine 6ARFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

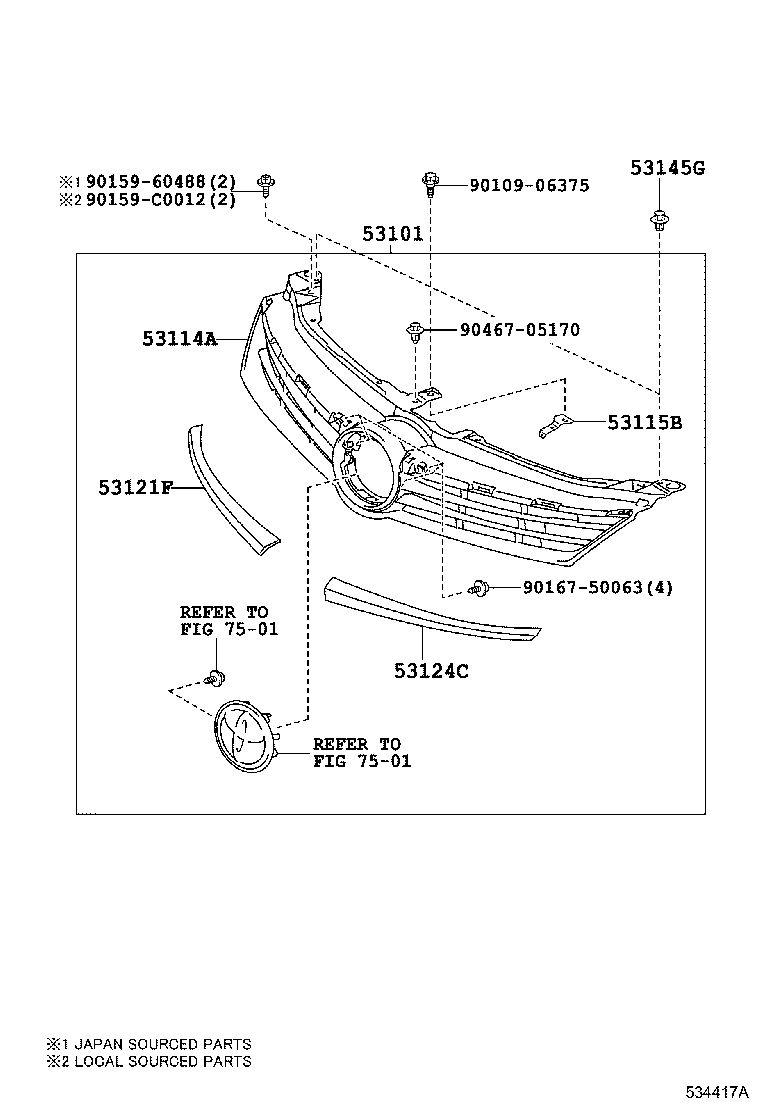

Click highlighted areas on diagram

diagram 53101 53114A 53115B 53121F 53124C 53145G 7501 7501 9010906375 9015960488 90159C0012 9016750063 9046705170
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-06720

ASV5#..20E,25G

PLATED

 1
53101-06C90

ASV5#..20E,25G

PLATED

 1
53114A - GRILLE, RADIATOR, INNER
53114-06200

ASV5#,AVV50..20E,25G,25V,HBD

 1
53114-06080

ASV5#,AVV50..20E,25G,25V,HBD

 1
53115B - BRACKET, RADIATOR GRILLE
53115-06070

ASV5#,AVV50

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-06010

ASV5#,AVV50

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53124-06010

ASV5#,AVV50

 1
53145G - CLIP, RADIATOR GRILLE
90467-05063C0

ASV5#,AVV50

BLACK

 2
Common parts
90109-06375
90159-60488
90159-C0012
90167-50063
90467-05170
Linked diagrams
7501
