ASV51L-JETEHC (2015)
Toyota Camry/Hybrid (China)
Production
Jan 2015
-
Nov 2017
Engine
6ARFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )ASV51

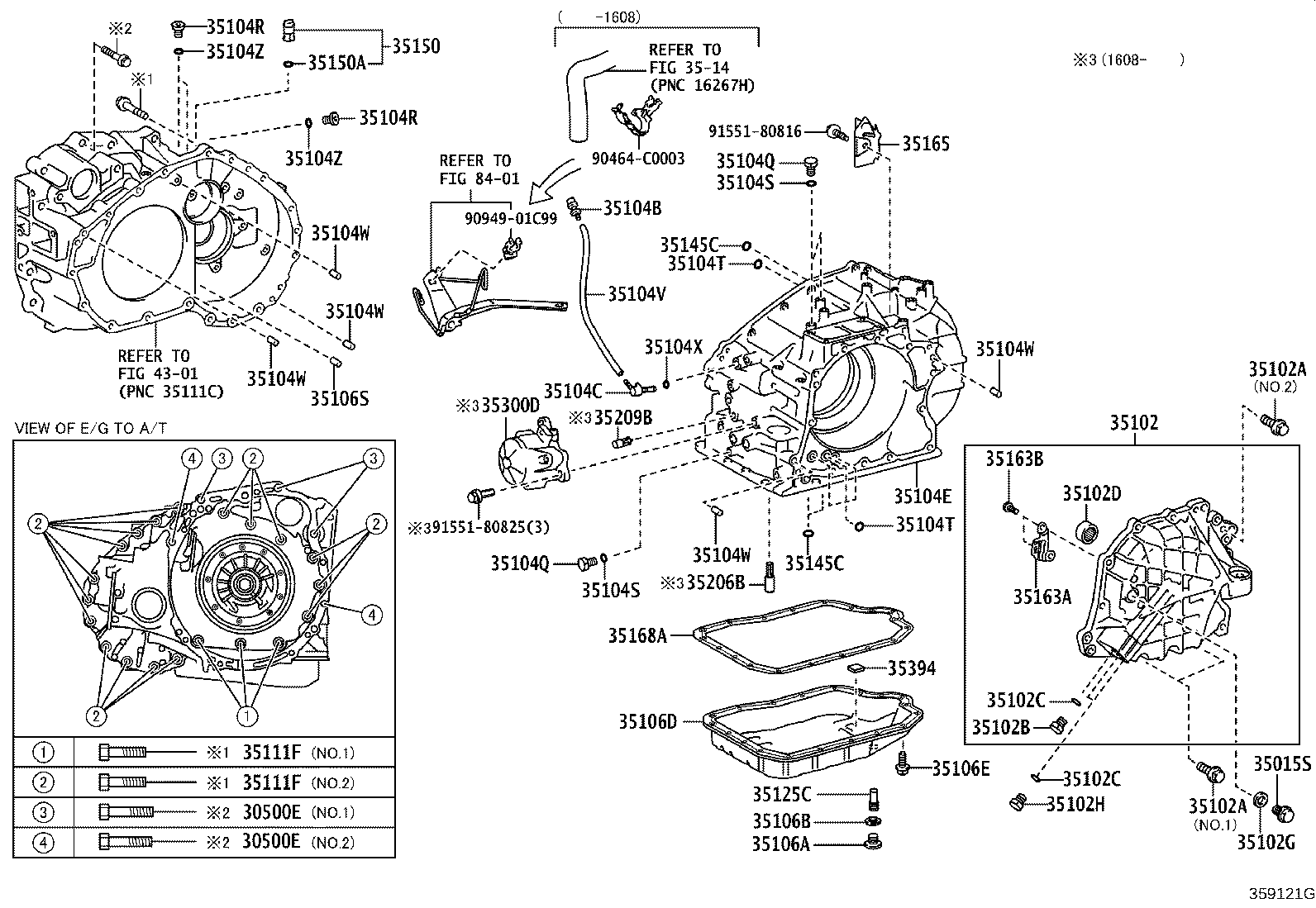

Click highlighted areas on diagram
U761E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-C0031 |
ASV5# *10-1.25PX50-30,NO.2 |
2 | ||
| 90119-C0040 |
ASV5# *12-1.25PX55-30,NO.1 |
3 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-C0031 |
ASV5# *10-1.25PX50-30,NO.2 |
2 | ||
| 90119-C0040 |
ASV5# *12-1.25PX55-30,NO.1 |
3 | ||
| 35015S - PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90341-18064 |
ASV5# |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-33091 |
ASV51 |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08431 |
ASV5# *8-1.25PX28-22,NO.1 |
2 | ||
| 91551-00828 |
ASV5# *8-1.25PX28-22,NO.2 |
12 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08431 |
ASV5# *8-1.25PX28-22,NO.1 |
2 | ||
| 91551-00828 |
ASV5# *8-1.25PX28-22,NO.2 |
12 | ||
| 35102B - PLUG(FOR TRANSAXLE REAR COVER) | ||||
| 90341-08001 |
ASV5# |
1 | ||
| 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) | ||||
| 90301-06196 |
ASV5# |
3 | ||
| 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) | ||||
| 90301-06196 |
ASV5# |
3 | ||
| 35102D - BEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER) | ||||
| 90364-18010 |
ASV5# |
1 | ||
| 35102G - GASKET (FOR TRANSAXLE REAR COVER ) | ||||
| 90430-18008 |
ASV5# |
1 | ||
| 35102H - PLUG, NO.2 (FOR TRANSAXLE REAR COVER) | ||||
| 90341-08001 |
ASV5# |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03149 |
ASV5# |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03187 |
ASV5# |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35141-33170 |
ASV51 |
1 | ||
| 35141-33180 |
ASV5# |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ASV5# |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ASV5# |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
ASV5# |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
ASV5# |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ASV5# |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ASV5# |
3 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90301-10018 |
ASV5# |
4 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90301-10018 |
ASV5# |
4 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-33051 |
ASV51 |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
ASV5# |
5 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
ASV5# |
5 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
ASV5# |
5 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
ASV5# |
5 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
ASV5# |
5 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06021 |
ASV5# |
1 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90430-14008 |
ASV5# |
3 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90430-14008 |
ASV5# |
3 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-12034 |
ASV5# |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-12008 |
ASV5# |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-73021 |
ASV51 |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ASV5# |
19 | ||
| 35106S - PIN, RING (FOR TRANSAXLE CASE) | ||||
| 90253-11007 |
ASV5# |
1 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08432 |
ASV5# *8-1.25PX45-22,NO.1 |
3 | ||
| 91551-10845 |
ASV5# *8-1.25PX45-22,NO.2 |
17 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08432 |
ASV5# *8-1.25PX45-22,NO.1 |
3 | ||
| 91551-10845 |
ASV5# *8-1.25PX45-22,NO.2 |
17 | ||
| 35125C - TUBE, TRANSMISSION OIL FILLER, NO.1 | ||||
| 35125-33100 |
ASV51 |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
ASV5# |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
ASV5# |
3 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
ASV5# |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ASV5# |
1 | ||
| 35163A - PLATE, TRANSAXLE REAR COVER | ||||
| 35163-33010 |
ASV5# |
1 | ||
| 35163B - SCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE) | ||||
| 90148-60055 |
ASV5# |
2 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-73010 |
ASV5# |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-73010 |
ASV5# |
1 | ||
| 35206B - VALVE SUB-ASSY, CHECK, NO.1 | ||||
| 35206-48010 |
ASV5# |
1 | ||
| 35209B - VALVE SUB-ASSY, TRANSAXLE OIL CHECK | ||||
| 35209-48010 |
ASV5# |
1 | ||
| 35300D - PUMP ASSY, OIL W/MOTOR | ||||
| 35300-48030 |
ASV5# |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
ASV5# |
4 | ||
| Common parts | ||||
| 90464-C0003 | ||||
| 90949-01C99 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 3514 | ||||
| 4301 | ||||
| 8401 | ||||
