ASV51L-JETEHC (2015)

Toyota Camry/Hybrid (China)

Production Jan 2015 - Nov 2017
Engine 6ARFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )6ARFSE

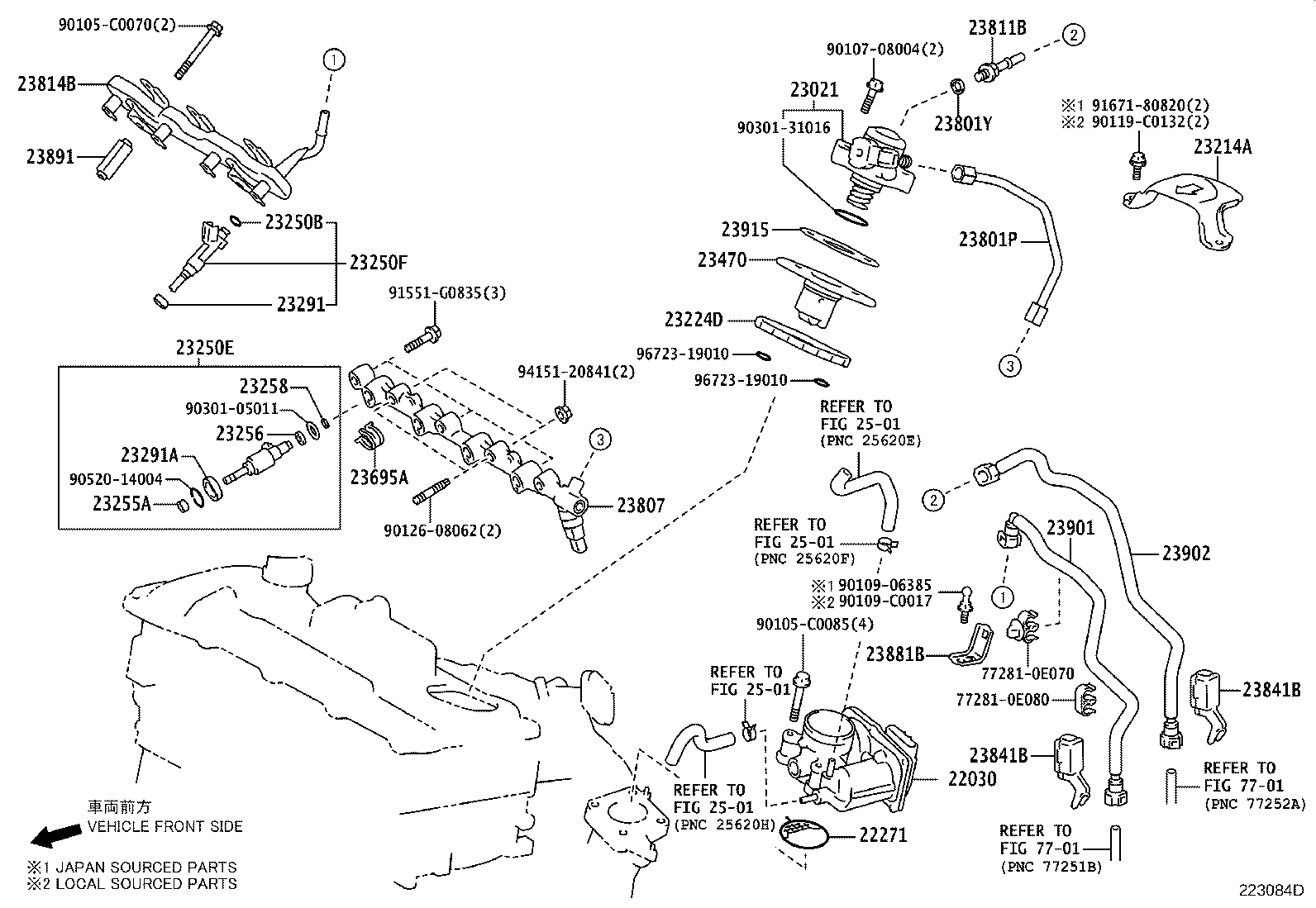

Click highlighted areas on diagram

diagram 22030 22271 23021 23214A 23224D 23250B 23250E 23250F 23255A 23256 23258 23291 23291A 23470 23695A 23801P 23801Y 23807 23811B 23814B 23841B 23841B 23881B 23891 23901 23902 23915 2501 2501 2501 2501 7701 7701 772810E070 772810E080 90105C0070 90105C0085 9010708004 9010906385 90109C0017 90119C0132 9012608062 9030105011 9030131016 9052014004 91551G0835 9167180820 9415120841 9672319010 9672319010
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0V020

6ARFSE..ASV51

 1
22271 - GASKET, THROTTLE BODY
22271-0T010

6ARFSE..ASV51

 1
23021 - PUMP SUB-ASSY, FUEL W/SEAL
23021-36010

6ARFSE..ASV51

 1
23021-36040

6ARFSE..ASV51

 1
23021-36030

6ARFSE..ASV51

 1
23214A - PROTECTOR, FUEL PUMP
23214-0V010

6ARFSE..ASV51

 1
23224D - GASKET, FUEL PUMP SPACER
23224-0V010

6ARFSE..ASV51

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50

(J)

 4
90301-C0072

4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50

(L)

 4
90301-07037

4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50

 4
23250E - INJECTOR ASSY, FUEL(FOR DIRECT)
23209-0V02001

6ARFSE..ASV51

MARK 1,REFER REPAIR MANUAL

 4
23209-0V02002

6ARFSE..ASV51

MARK 2,REFER REPAIR MANUAL

 4
23209-0V02003

6ARFSE..ASV51

MARK 3,REFER REPAIR MANUAL

 4
23250F - INJECTOR ASSY, FUEL(FOR PORT)
23209-09280

6ARFSE..ASV51

 4
23255A - SEAL, FUEL INJECTOR
23255-31020

6ARFSE..ASV51

 4
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-31010

6ARFSE..ASV51

 4
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-36020

6ARFSE..ASV51

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-0V010

6ARFSE..ASV51

 4
23291A - INSULATOR, INJECTOR VIBRATION
23291-31020

6ARFSE..ASV51

 4
23470 - LIFTER ASSY, FUEL PUMP
23460-36010

6ARFSE..ASV51

 1
23695A - CLAMP, NOZZLE HOLDER
23695-31020

6ARFSE..ASV51

 4
23695-31020

6ARFSE..ASV51

(J)

 4
23695-0Y010

6ARFSE..ASV51

(L)

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-0V010

6ARFSE..ASV51

 1
23801Y - GASKET
90430-12026

6ARFSE..ASV51

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23800-0V010

6ARFSE..ASV51

 1
23811B - PIPE, FUEL, NO.1
23811-36040

6ARFSE..ASV51

 1
23811-36041

6ARFSE..ASV51

 1
23814B - PIPE, FUEL DELIVERY
23814-0V010

6ARFSE..ASV51

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0V040

6ARFSE..ASV51

(L)

 2
23841-31070

6ARFSE..ASV51

 2
23841-31070

6ARFSE..ASV51

(J)

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0V040

6ARFSE..ASV51

(L)

 2
23841-31070

6ARFSE..ASV51

 2
23841-31070

6ARFSE..ASV51

(J)

 2
23881B - BRACKET, FUEL HOSE
23881-0V130

6ARFSE..ASV51

 1
23891 - SPACER, FUEL DELIVERY
23891-36020

6ARFSE..ASV51

 2
23901 - TUBE SUB-ASSY, FUEL
23901-0V200

6ARFSE..ASV51

 1
23902 - TUBE SUB-ASSY, FUEL
23902-0V040

6ARFSE..ASV51

 1
23915 - INSULATOR, FUEL PUMP
23915-31010

6ARFSE..ASV51

 1
Common parts
77281-0E070
77281-0E080
90105-C0070
90105-C0085
90107-08004
90109-06385
90109-C0017
90119-C0132
90126-08062
90301-05011
90301-31016
90520-14004
91551-G0835
91671-80820
94151-20841
96723-19010
Linked diagrams
2501
7701
