ASV51L-JETEHC (2015)

Toyota Camry/Hybrid (China)

Production Jan 2015 - Nov 2017
Engine 6ARFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )6ARFSE

Click highlighted areas on diagram

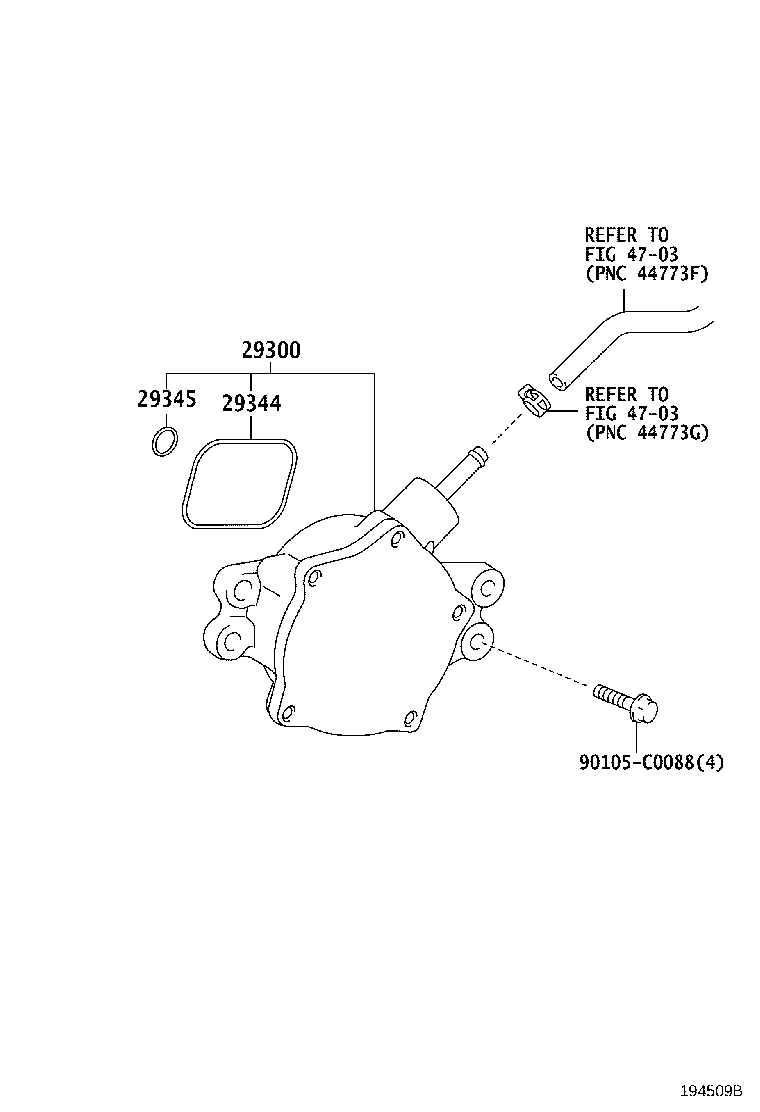

diagram 29300 29344 29345 4703 4703 90105C0088
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0V010

6ARFSE..ASV51

 1
29344 - RING, O VACUUM PUMP, NO.2
29344-0V010

6ARFSE..ASV51

 1
29345 - RING, O VACUUM PUMP, NO.3
29345-0P010

6ARFSE..ASV51

 1
Common parts
90105-C0088
Linked diagrams
4703
