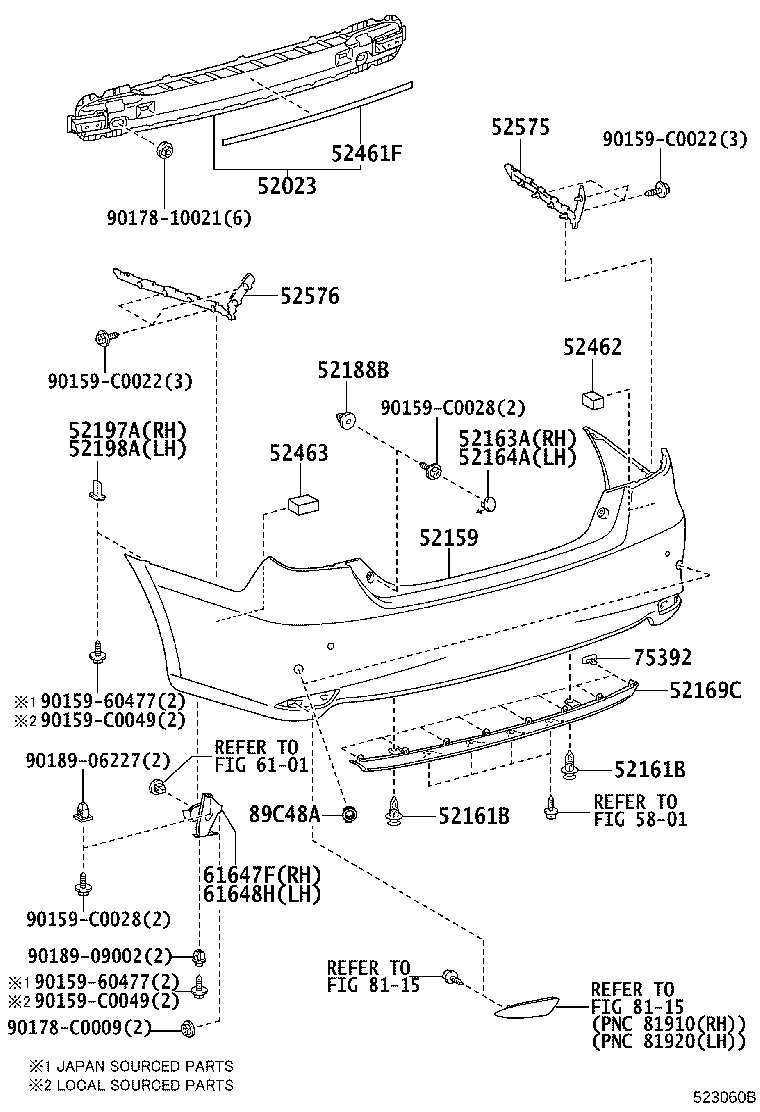

Toyota Camry/hybrid (china) ASV50 REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-06200	ASV5#,AVV50	01/2015 - 12/2999	1
52023-06190	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
52159 - COVER, REAR BUMPER
52159-06993	ASV50,AVV50..25V,HBD PAINT REQ.	01/2015 - 11/2017	1
52159-06979	ASV50,AVV50..25V,HBD PAINT REQ.	12/2011 - 01/2015	1
52161B - PIECE, REAR BUMPER
52161-02040	ASV5#,AVV50	01/2015 - 12/2999	2
52161-16010	ACV51,ASV50,AVV50	12/2011 - 01/2013	2
52161B - PIECE, REAR BUMPER
52161-02040	ASV5#,AVV50	01/2015 - 12/2999	2
52161-16010	ACV51,ASV50,AVV50	12/2011 - 01/2013	2
52163A - PLATE, REAR BUMPER, RH
52163-06913	ASV5#,AVV50	01/2015 - 12/2999	1
52163-06913	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
52164A - PLATE, REAR BUMPER, LH
52164-06913	ASV5#,AVV50	01/2015 - 12/2999	1
52164-06913	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
52169C - COVER, REAR BUMPER, LOWER
52169-06050	ASV5#,AVV50 NO PAINT REQ.	01/2015 - 12/2999	1
52188B - SPACER, REAR BUMPER MOUNTING
52188-06040	ACV51,ASV50,AVV50	12/2011 - 01/2015	2
52188-06040	ASV5#,AVV50	01/2015 - 12/2999	2
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-06010	ASV5#,AVV50	01/2015 - 12/2999	1
52197-06010	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
52198A - BRACKET, REAR BUMPER SEAL, LH
52197-06010	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
52197-06010	ASV5#,AVV50	01/2015 - 12/2999	1
52461F - PAD, REAR BUMPER
52461-06050	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
52461-06050	ASV5#,AVV50	01/2015 - 12/2999	1
52462 - PAD, REAR BUMPER, RH
52462-06060	ASV5#,AVV50	01/2015 - 12/2999	1
52462-06110	ACV51,ASV50,AVV50..25G,25V,HBD,STD	12/2011 - 01/2015	1
52463 - PAD, REAR BUMPER, LH
52463-06020	ACV51,ASV50,AVV50..25G,25V,HBD,STD	12/2011 - 01/2015	1
52463-06080	ASV5#,AVV50	01/2015 - 12/2999	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-06110	ACV51,ASV50,AVV50	12/2011 - 08/2013	1
52575-06111	ASV5#,AVV50	01/2015 - 12/2999	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-06110	ACV51,ASV50,AVV50	12/2011 - 08/2013	1
52576-06111	ASV5#,AVV50	01/2015 - 12/2999	1
61647F - REINFORCEMENT, WHEEL HOUSE, RH
61647-06110	ASV5#,AVV50	01/2015 - 12/2999	1
61647-06100	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
61648H - REINFORCEMENT, WHEEL HOUSE, LH
61648-06100	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
61648-06110	ASV5#,AVV50	01/2015 - 12/2999	1
75392 - RETAINER, OUTSIDE MOULDING
75392-33030	ASV5#,AVV50	01/2015 - 12/2999	8
89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-06030E0	ASV50,AVV50..25V,HBD BEIGE ME.,4T8	12/2011 - 09/2013	2
89348-06030A0	ASV50,AVV50..25V,HBD WHITE PEARL CS.,070	12/2011 - 01/2015	2
89348-06030B1	ASV50,AVV50..25V,HBD GRAY ME.,1G3	12/2011 - 01/2015	2
89348-06030B0	ASV50,AVV50..25V,HBD SILVER ME.,1D4	12/2011 - 01/2015	2
89348-06030J1	ASV50,AVV50..25V,HBD TRUE BLUE M.M.,8W1	12/2011 - 01/2015	2
89348-06030C0	ASV50,AVV50..25V,HBD ATTITUDE BLACK MC.,218	12/2011 - 01/2015	2
89348-06030B0	ASV50,AVV50..25V,HBD SILVER ME.,1D4	01/2015 - 11/2017	2
89348-06030A0	ASV50,AVV50..25V,HBD WHITE PEARL CS.,070	01/2015 - 11/2017	2
89348-06030B3	ASV50,AVV50..25V,HBD GRAY M.M.,1H1	01/2015 - 11/2017	2
89348-06030C0	ASV50,AVV50..25V,HBD ATTITUDE BLACK MC.,218	01/2015 - 03/2016	2
89348-06030D1	ASV50,AVV50..25V,HBD RED MC.,3T3	01/2015 - 11/2017	2
89348-06030E1	ASV50,AVV50..25V,HBD DK. BROWN M.M.,4U3	03/2016 - 11/2017	2
89348-06030C1	ASV50,AVV50..25V,HBD BLACK MC.,209	03/2016 - 11/2017	2
89348-06030J2	ASV50,AVV50..25V,HBD GRAYISH BLUE M.M.,8V5	01/2015 - 11/2017	2
Common parts
90159-60477
90159-C0022
90159-C0028
90159-C0049
90178-10021
90178-C0009
90189-06227
90189-09002
Linked diagrams
5801
6101
8115

ASV50L-JETVKC (2015)

(1501- )
