ASV50L-JETVKC (2011)

Toyota Camry/Hybrid (China)

Production Dec 2011 - Jan 2015
Engine 5ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

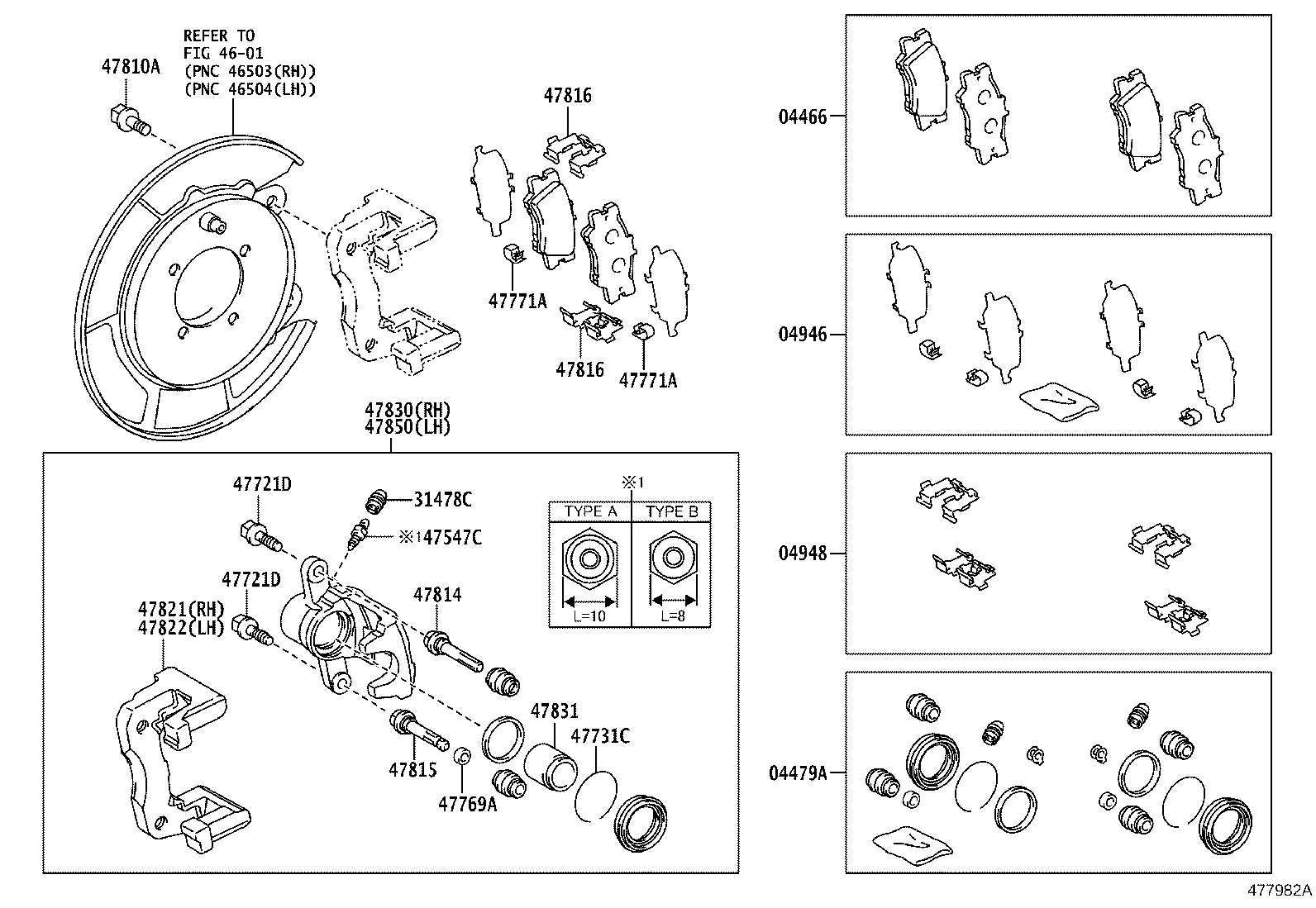

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47721D 47721D 47731C 47769A 47771A 47771A 47810A 47814 47815 47816 47816 47821 47822 47830 47831 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-33200

ACV51,ASV50,AVV50

MARK NBK D6247

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-06320

ACV51,ASV50,AVV50

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-33040

ACV51,ASV50

 1
04946-33070

ACV51,ASV50,AVV50

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-06050

ACV51,ASV50,AVV50

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-50020

ACV51,ASV50

PNC 47547C=TYPE B

 2
31478-06020

ACV51,ASV50,AVV50

 2
31478-06020

ACV51,ASV50

PNC 47547C=TYPE A

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

ACV51,ASV50

TYPE B:REFER ILLUST.

 2
47547-12010

ACV51,ASV50

TYPE A:REFER ILLUST.

 2
47547-12010

ACV51,ASV50,AVV50

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90016-AA608

ACV51,ASV50

*8-1.00PX23-15,PNC 47547C=TYPE A

 4
90105-08164

ACV51,ASV50

*8-1.00PX23-15,PNC 47547C=TYPE B

 4
90016-AA608

ACV51,ASV50,AVV50

*8-1.00PX23-15

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90016-AA608

ACV51,ASV50

*8-1.00PX23-15,PNC 47547C=TYPE A

 4
90105-08164

ACV51,ASV50

*8-1.00PX23-15,PNC 47547C=TYPE B

 4
90016-AA608

ACV51,ASV50,AVV50

*8-1.00PX23-15

 4
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90520-52006

ACV51,ASV50,AVV50

 2
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47879-33240

ACV51,ASV50

PNC 47547C=TYPE B

 2
47879-06130

ACV51,ASV50

PNC 47547C=TYPE A

 2
47879-06130

ACV51,ASV50,AVV50

 2
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-32030

ACV51,ASV50

PNC 47547C=TYPE A

 4
47771-72010

ACV51,ASV50

PNC 47547C=TYPE B

 4
47771-32030

ACV51,ASV50

PNC 47547C=TYPE B

 4
47771-72010

ACV51,ASV50,AVV50

 4
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-32030

ACV51,ASV50

PNC 47547C=TYPE A

 4
47771-72010

ACV51,ASV50

PNC 47547C=TYPE B

 4
47771-32030

ACV51,ASV50

PNC 47547C=TYPE B

 4
47771-72010

ACV51,ASV50,AVV50

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-C0030

ACV51,ASV50,AVV50

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-06130

ACV51,ASV50,AVV50

 2
47814-06130

ACV51,ASV50

PNC 47547C=TYPE A

 2
47814-33240

ACV51,ASV50

PNC 47547C=TYPE B

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-06130

ACV51,ASV50,AVV50

 2
47815-33240

ACV51,ASV50

PNC 47547C=TYPE B

 2
47815-06130

ACV51,ASV50

PNC 47547C=TYPE A

 2
47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47816-06130

ACV51,ASV50,AVV50

 4
47816-06130

ACV51,ASV50

PNC 47547C=TYPE A

 4
47816-33211

ACV51,ASV50

PNC 47547C=TYPE B

 4
47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47816-06130

ACV51,ASV50,AVV50

 4
47816-06130

ACV51,ASV50

PNC 47547C=TYPE A

 4
47816-33211

ACV51,ASV50

PNC 47547C=TYPE B

 4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-06130

ACV51,ASV50,AVV50

 1
47821-06130

ACV51,ASV50

PNC 47547C=TYPE A

 1
47821-33241

ACV51,ASV50

PNC 47547C=TYPE B

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-06120

ACV51,ASV50

PNC 47547C=TYPE A

 1
47822-33241

ACV51,ASV50

PNC 47547C=TYPE B

 1
47822-06120

ACV51,ASV50,AVV50

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-33240

ACV51,ASV50

PNC 47547C=TYPE B

 1
47830-06130

ACV51,ASV50

PNC 47547C=TYPE A

 1
47830-06130

ACV51,ASV50,AVV50

 1
47831 - PISTON, REAR DISC BRAKE
47831-06130

ACV51,ASV50,AVV50

 2
47831-33210

ACV51,ASV50

PNC 47547C=TYPE B

 2
47831-06130

ACV51,ASV50

PNC 47547C=TYPE A

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-06120

ACV51,ASV50

PNC 47547C=TYPE A

 1
47850-33240

ACV51,ASV50

PNC 47547C=TYPE B

 1
47850-06120

ACV51,ASV50,AVV50

 1
