ASV50L-JETSKC (2015)
Toyota Camry/Hybrid (China)

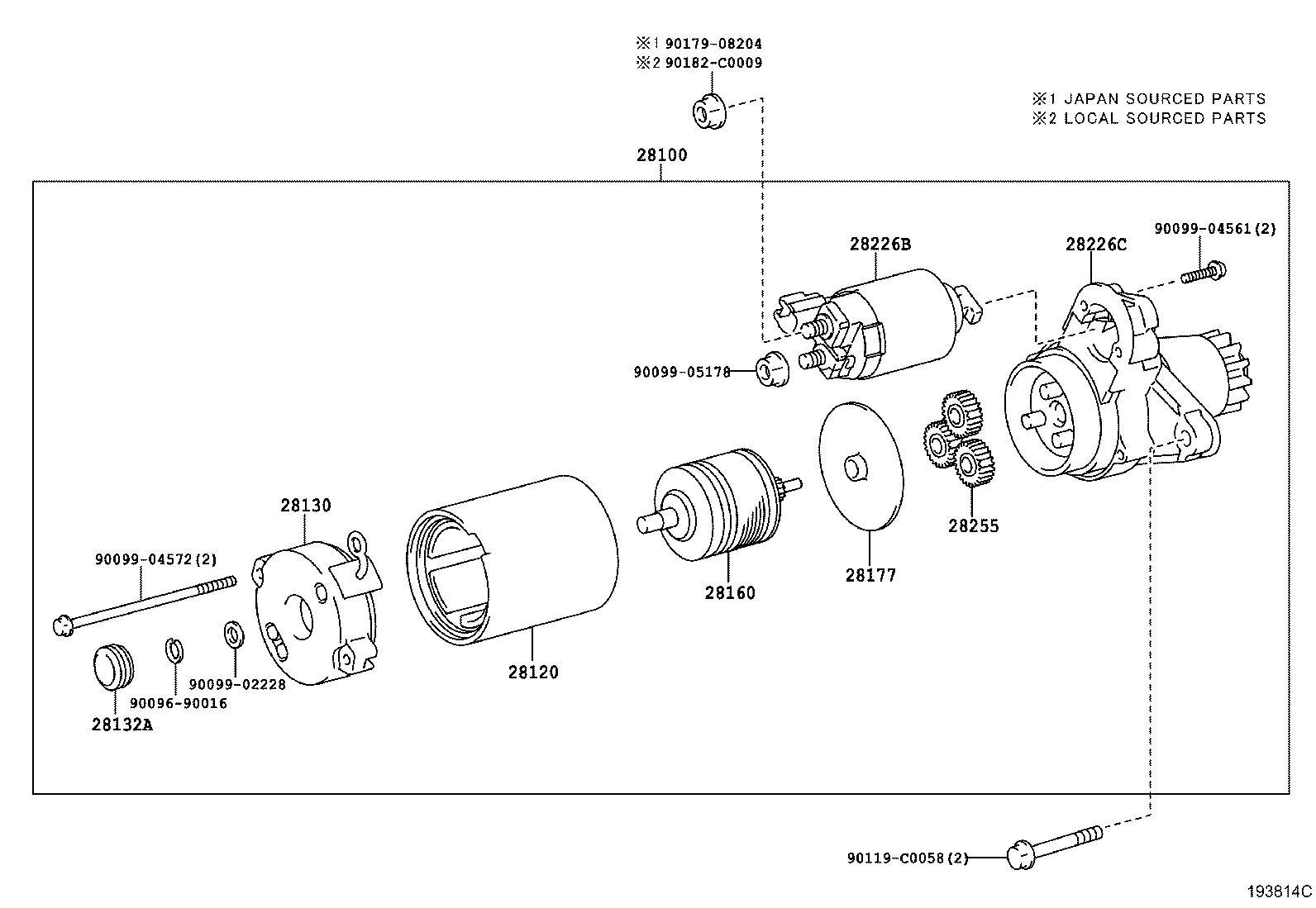

(1112-1608)1AZFE,5ARFE,6ARFSE
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-0H080 |
5ARFE,6ARFSE..ASV5# 12V 1.7KW |
1 | ||
| 28100-0V060 |
5ARFE,6ARFSE..ASV5# 12V 1.7KW |
1 | ||
| 28100-0H080 |
1AZFE,5ARFE..ACV51,ASV50 12V 1.7KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0H120 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28120-0H120 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28120-0V020 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0H120 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28130-0H120 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-28040 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28132-28040 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-28040 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28160-28040 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28160-0S050 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28177-28040 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-28051 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226-28051 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28226-31100 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226C - STARTER KIT, REPAIR SERVICE, NO.2 | ||||
| 28226-28041 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226-0V060 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226-28041 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-20020 |
1AZFE,5ARFE..ACV51,ASV50 |
3 | ||
| 28255-20020 |
5ARFE,6ARFSE..ASV5# |
3 | ||
| Common parts | ||||
| 90096-90016 | ||||
| 90099-02228 | ||||
| 90099-04561 | ||||
| 90099-04572 | ||||
| 90099-05178 | ||||
| 90119-C0058 | ||||
| 90179-08204 | ||||
| 90182-C0009 | ||||

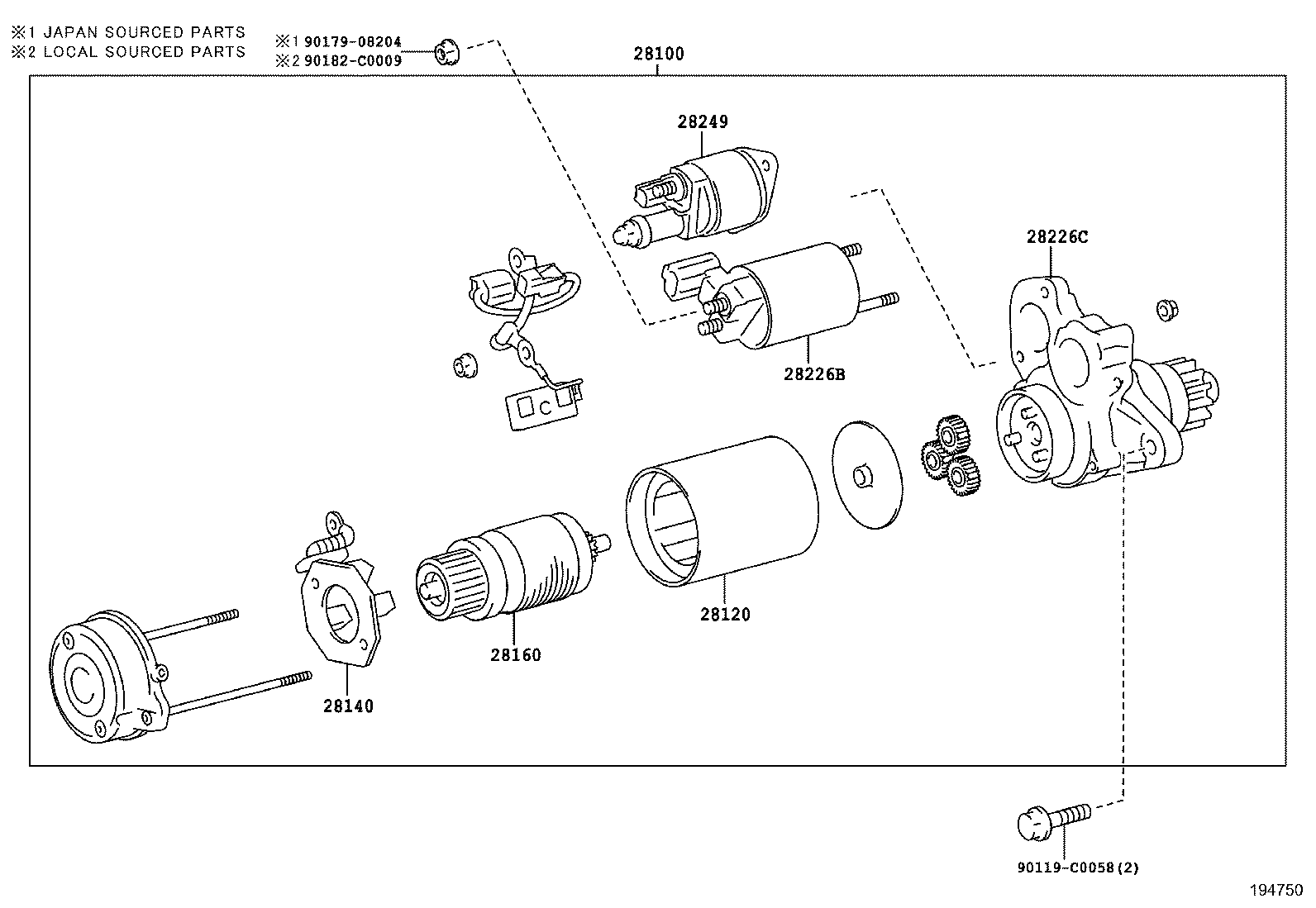

(1608- )5ARFE,6ARFSE
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-0H080 |
5ARFE,6ARFSE..ASV5# 12V 1.7KW |
1 | ||
| 28100-0V060 |
5ARFE,6ARFSE..ASV5# 12V 1.7KW |
1 | ||
| 28100-0H080 |
1AZFE,5ARFE..ACV51,ASV50 12V 1.7KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0H120 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28120-0H120 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28120-0V020 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0V020 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-28040 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28160-28040 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28160-0S050 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-28051 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226-28051 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28226-31100 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226C - STARTER KIT, REPAIR SERVICE, NO.2 | ||||
| 28226-28041 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226-0V060 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| 28226-28041 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| 28249 - RELAY, STARTER INRUSH CURRENT REDUCTION | ||||
| 28249-36110 |
5ARFE,6ARFSE..ASV5# |
1 | ||
| Common parts | ||||
| 90119-C0058 | ||||
| 90179-08204 | ||||
| 90182-C0009 | ||||
